Copper C Tap 6-4 Main 6-6 Tap
SKU: #303919
Part: #CTH-46
UPC: 662381022141
Copper C Tap 6-4 Main 6-6 Tap
SKU: #303919
Part: #CTH-46
UPC: 662381022141
Description

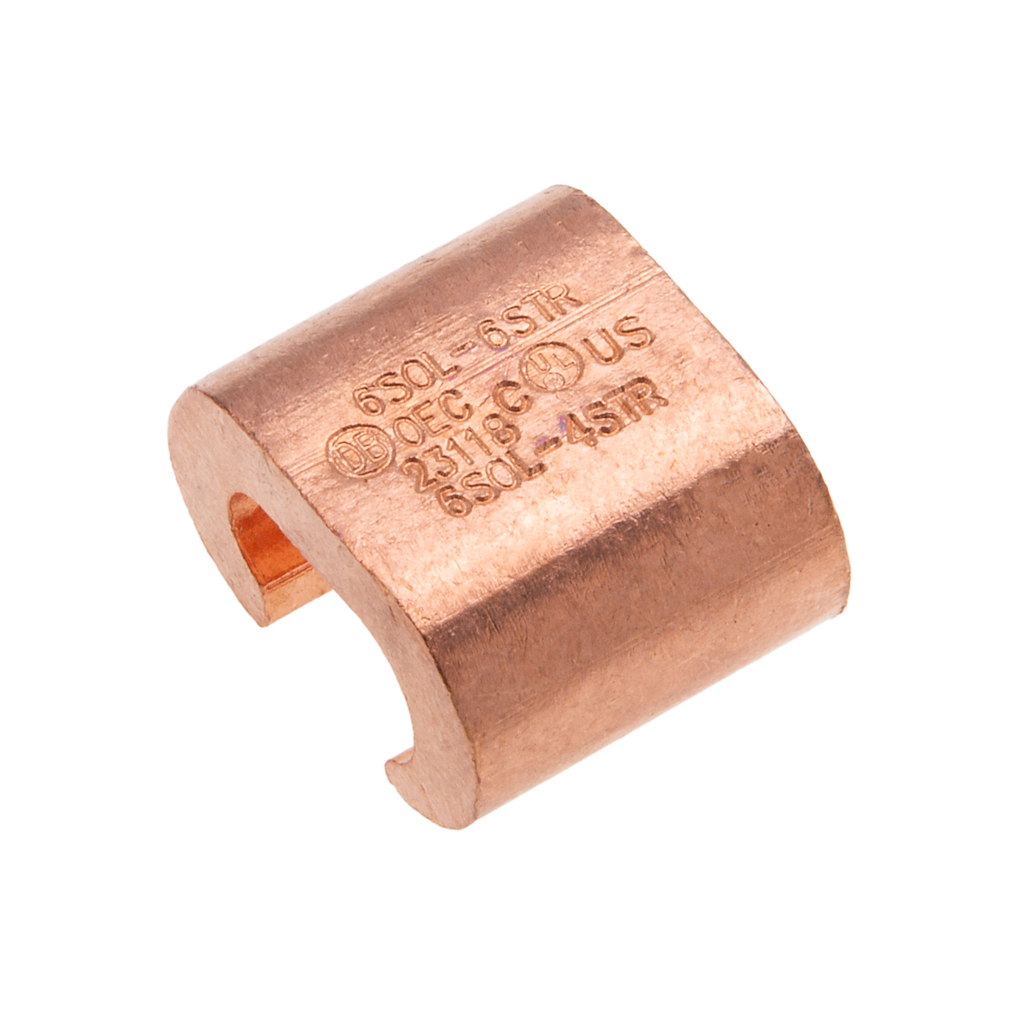

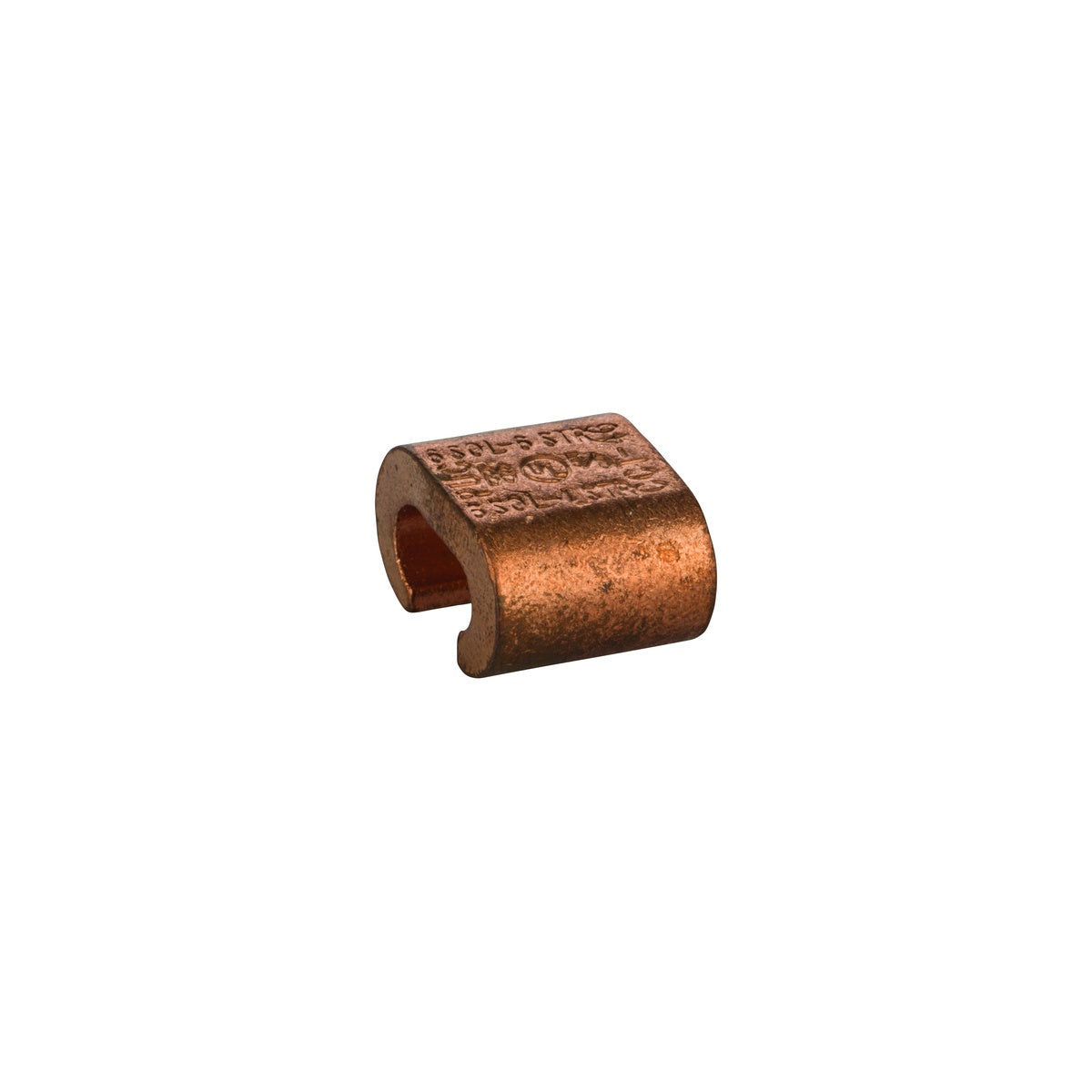

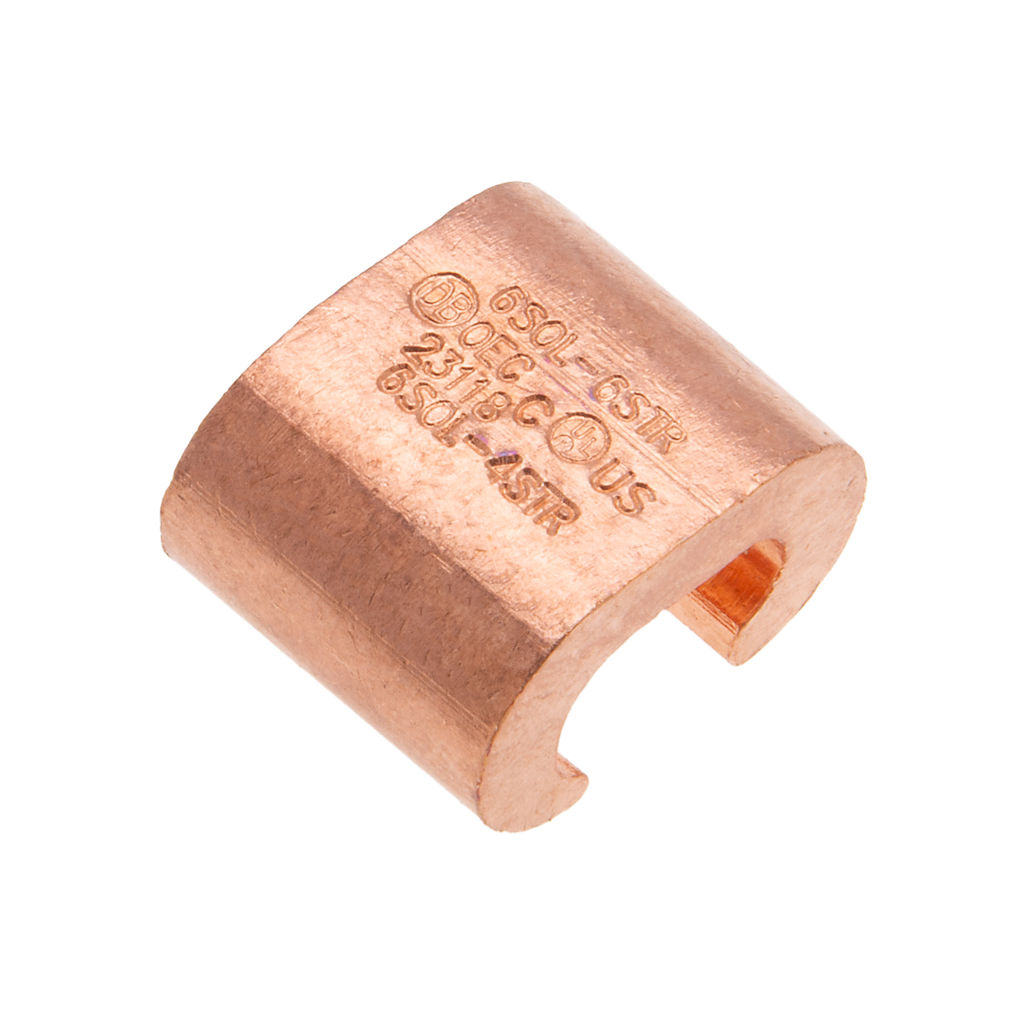

Copper C Tap 6-4 Main 6-6 Tap Compression Connector
This Copper C Tap compression connector is designed for terminating, splicing, and tapping copper conductors in electrical distribution systems. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding and bonding solutions. The connector supports a conductor range of 6 SOL to 4 STR for the main run and 6 SOL to 6 STR for the tap, making it ideal for wire and cable connections in lighting solutions and other electrical applications.
Specifications
- Application: Terminate-Splice-Tap
- Conductor Size (Run): 6 SOL - 4 STR
- Conductor Size (Tap): 6 SOL - 6 STR
- Material: Copper
- Finish: Copper
- Color: Copper
- Dimensions: Length 0.75 in, Width 0.625 in, Height 0.5 in
- Fixing Type: Compress
- Temperature Rating: 90 °C (194 °F max)
- Voltage Rating: 600V
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding
- Suitable for direct burial
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part #: CTH-46
- Product Weight: 0.0340 lbs
- Order Minimum: 1 unit
Features
- Range-taking compression connector made from high conductivity copper alloy
- Heavy wall construction prevents relaxation of the joint after installation

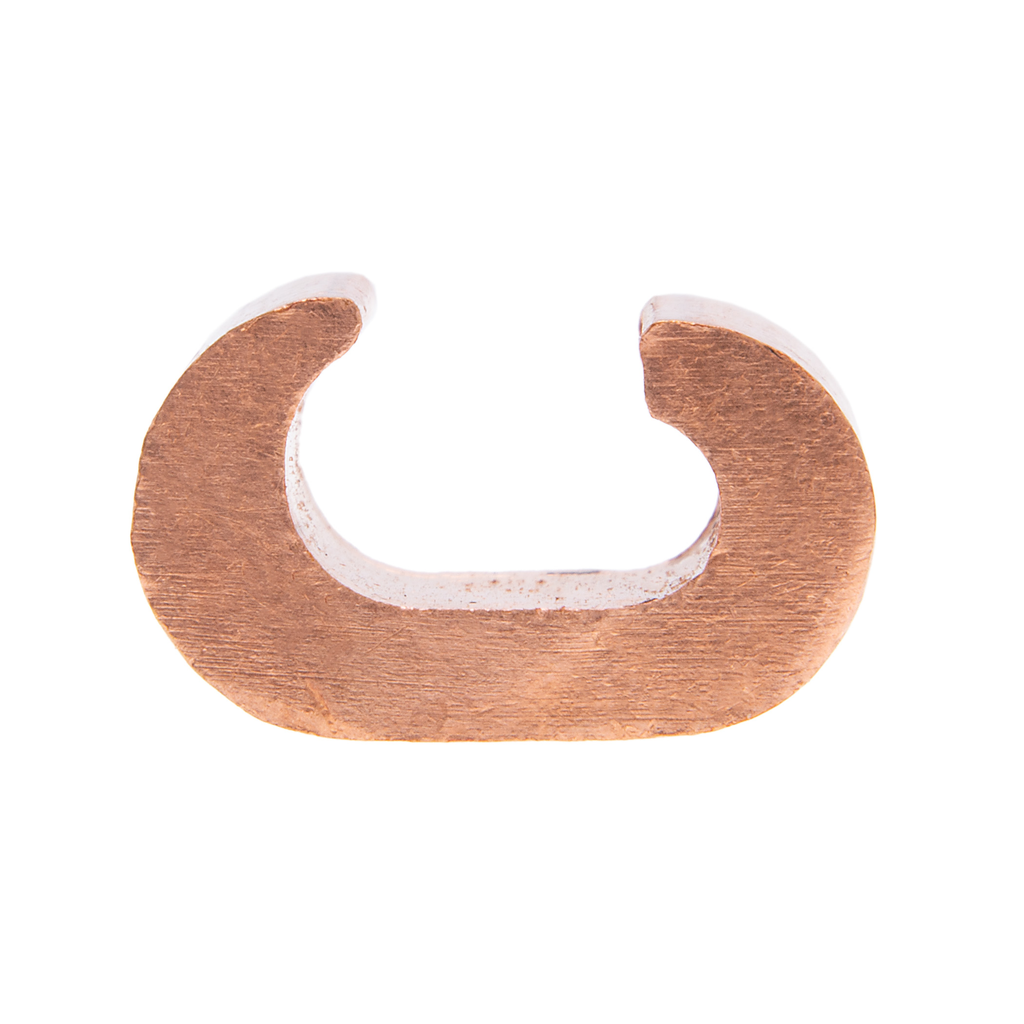

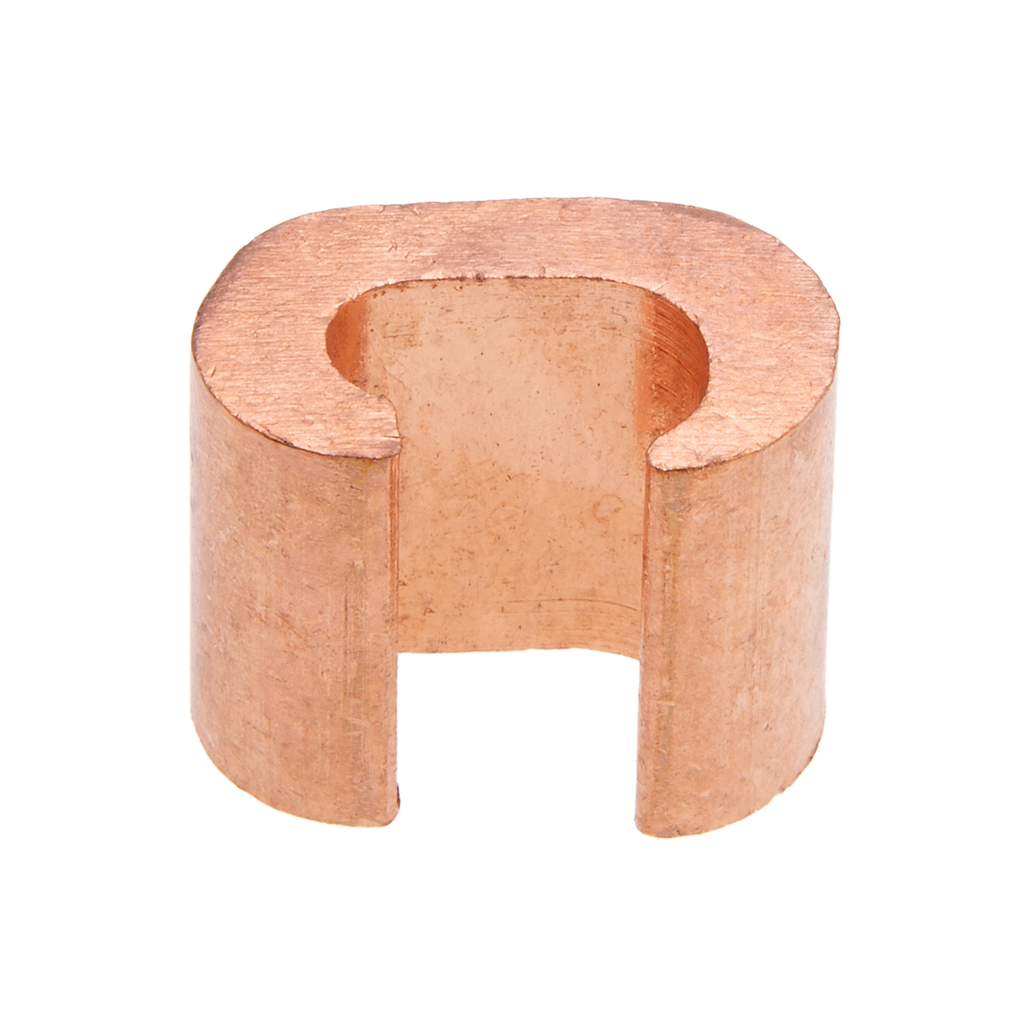

- "C" shape reduces installation time
- Consistent reliability for tap or parallel copper connections from 8 SOL to 4/0 STR conductors
- UL CU486A, 467 certified for grounding and bonding
