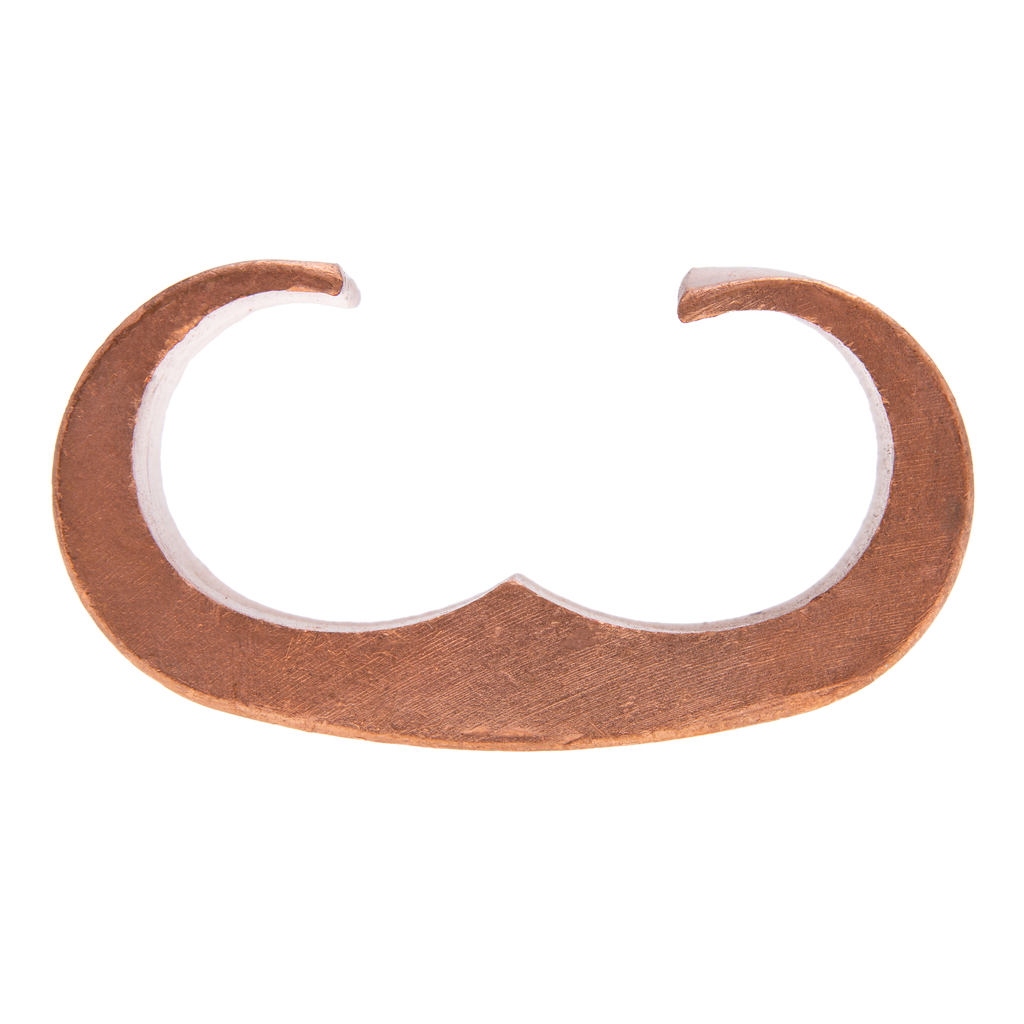

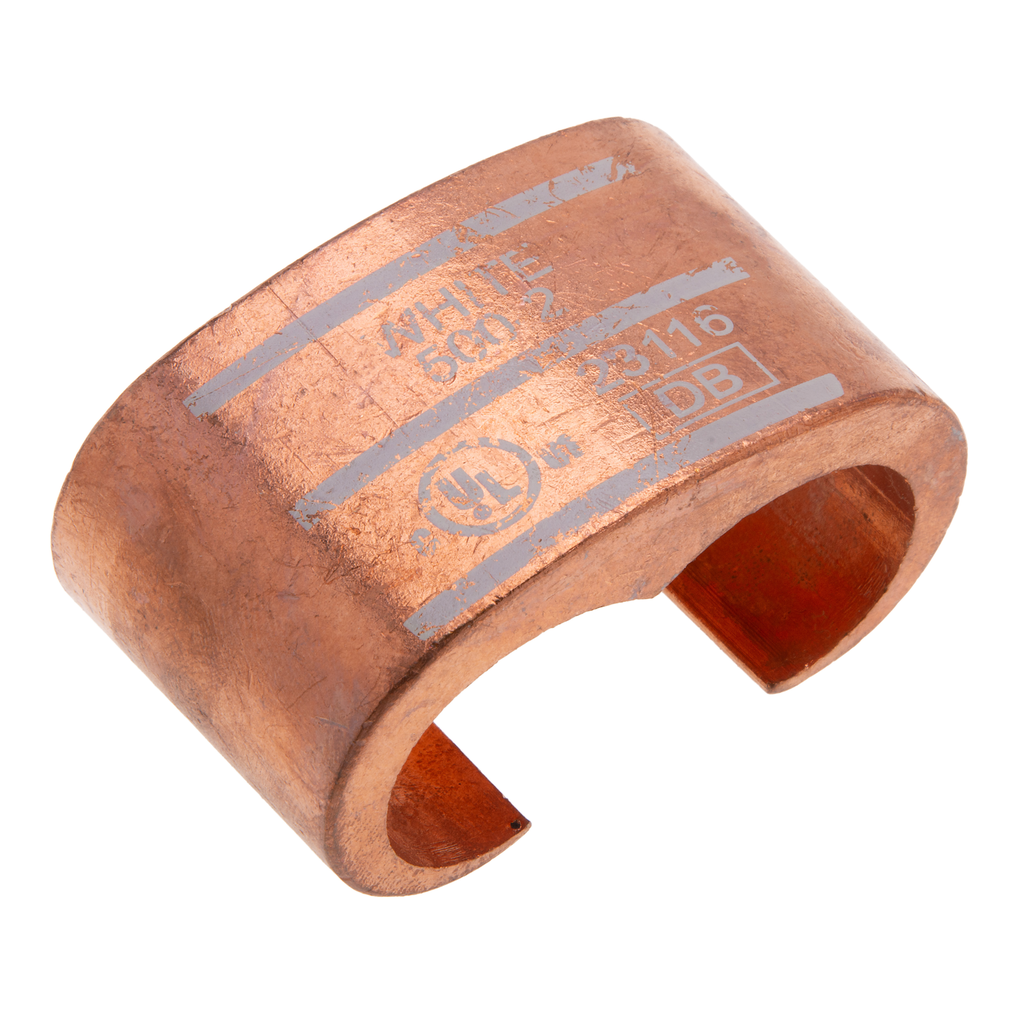

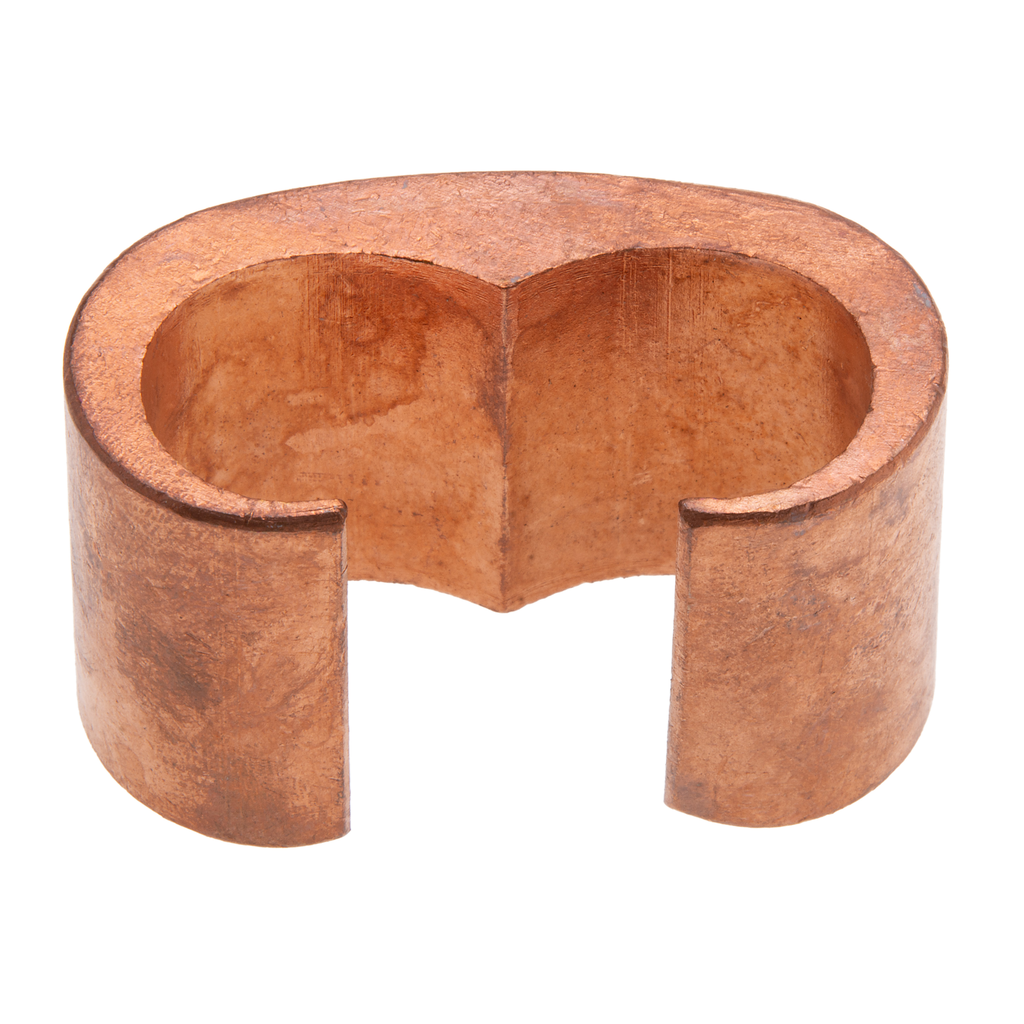

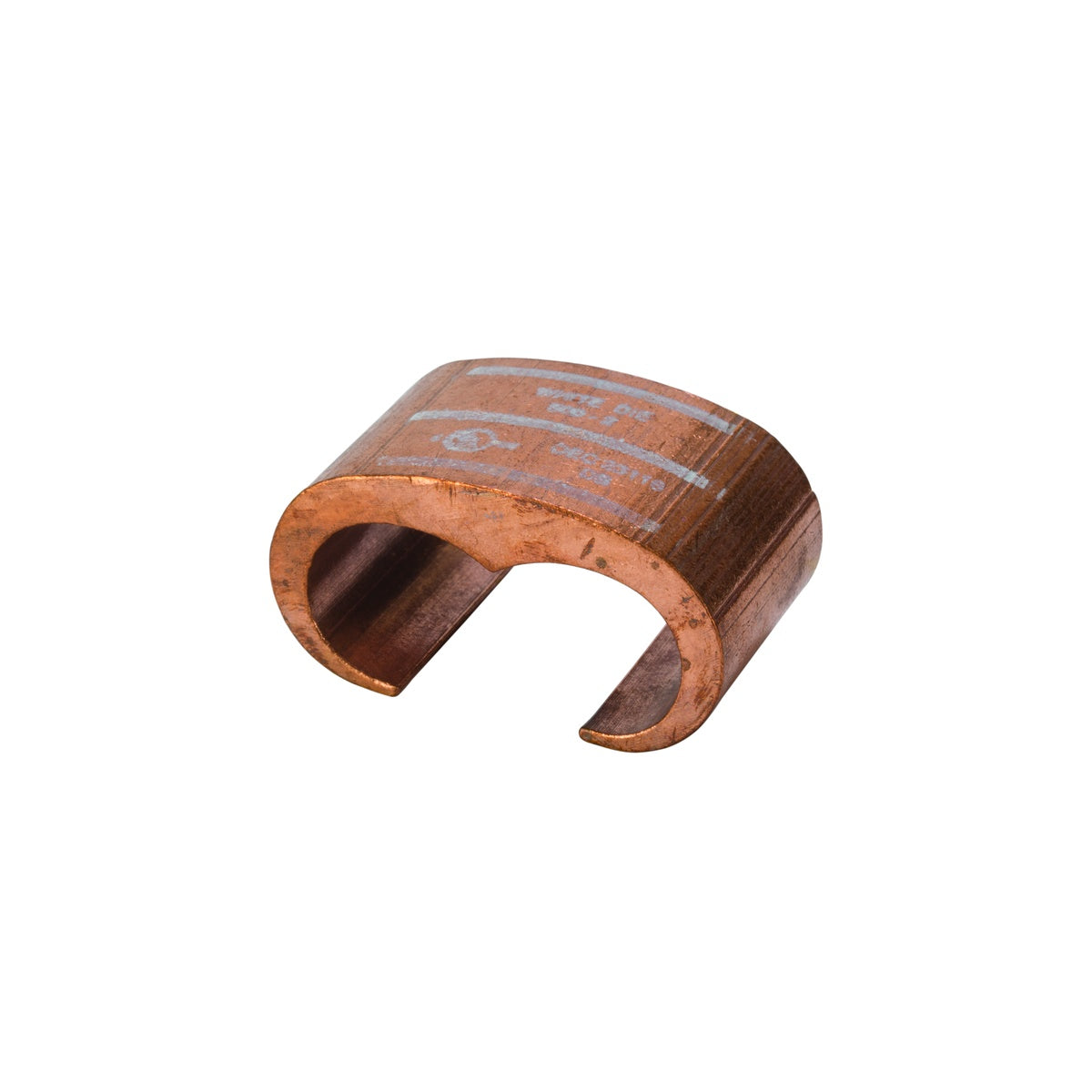

Copper C Tap 500-350 Main – Copper Compression Connector

This Copper C Tap is a heavy-duty grounding connector designed for terminating, splicing, and tapping power connectors in electrical systems. It is suitable for wire and cable applications requiring reliable grounding connections and complies with NEC250 standards for grounding electrode systems. The connector is rated for 600 volts and is made of high conductivity copper, making it ideal for use by electrical distributors and switchgear suppliers focused on lighting solutions and power distribution.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: CTH-116
• Material: Copper
• Finish: Copper
• Color: White
• Conductor Size: 500 MCM
• Voltage Rating: 600 Volts
• Temperature Rating: 90 °C (Max. 194 °F)
• Dimensions: Length 56 in, Width 30 in, Height 2.204 in
• Mechanical Durability: Single Use
• Country of Origin: Mexico
• Order Minimum: 1

Features

• Ensures positive, all-around compression with low resistance and high pull-out values
• Complies with NEC250-81 and 250-91 grounding electrode system requirements
• UL Listed: UL486A Wire Connector and UL467 Grounding & Bonding
• Rated for 600V electrical applications
• High conductivity copper construction for optimal electrical performance

Downloads & Links

• Spec Sheet
