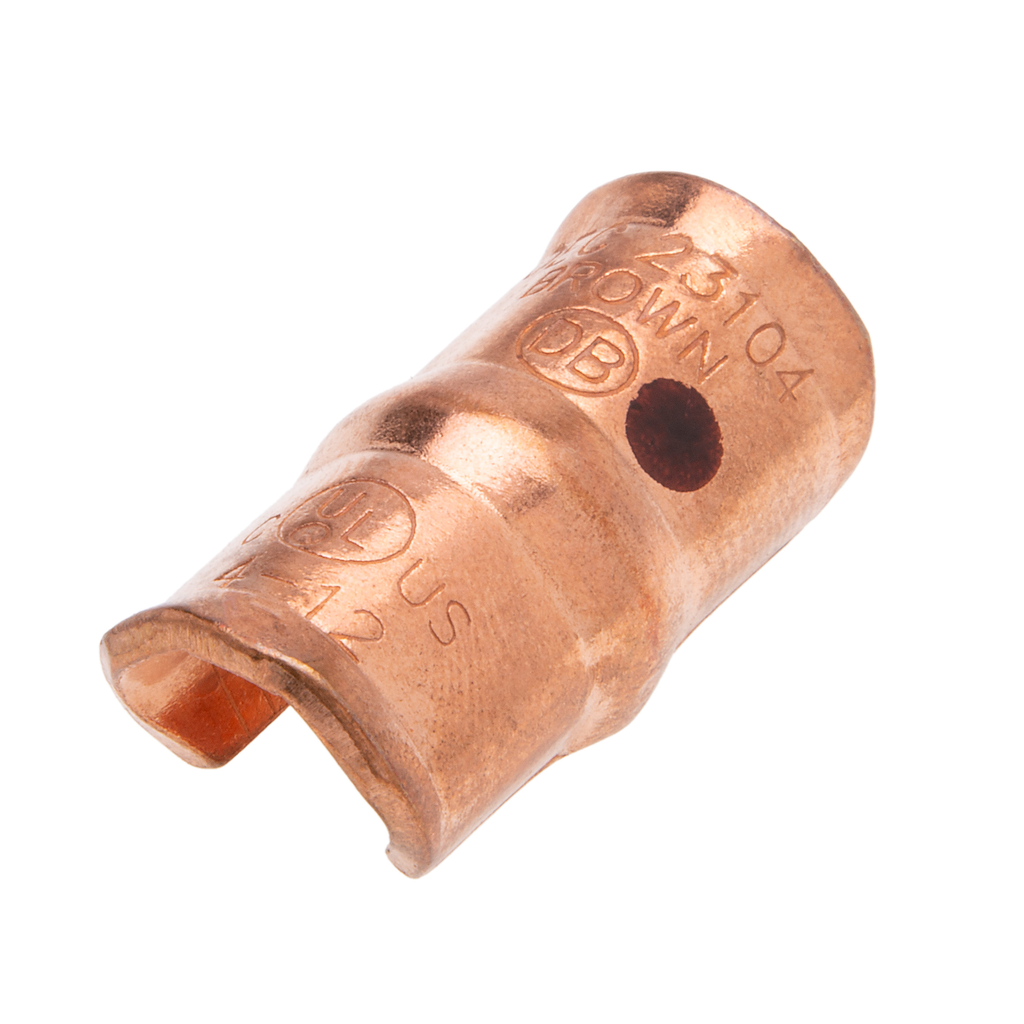

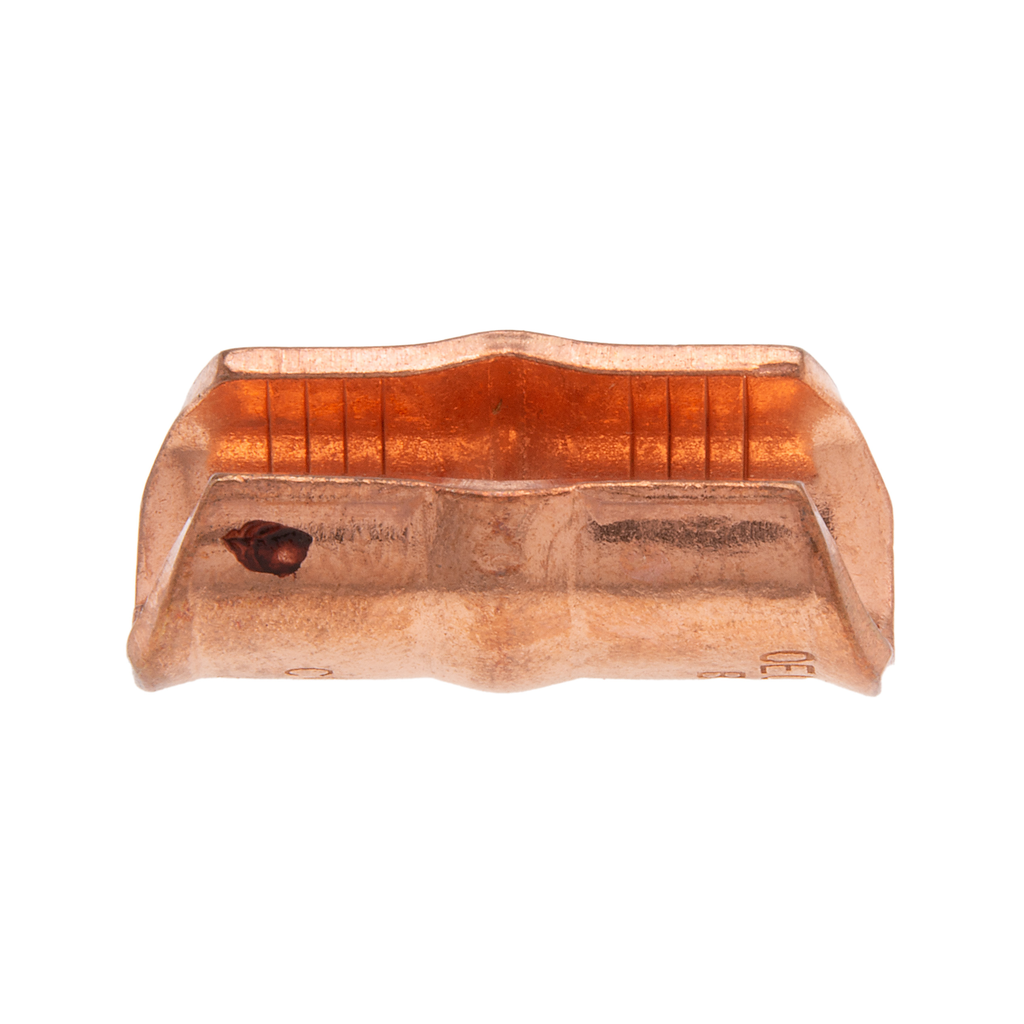

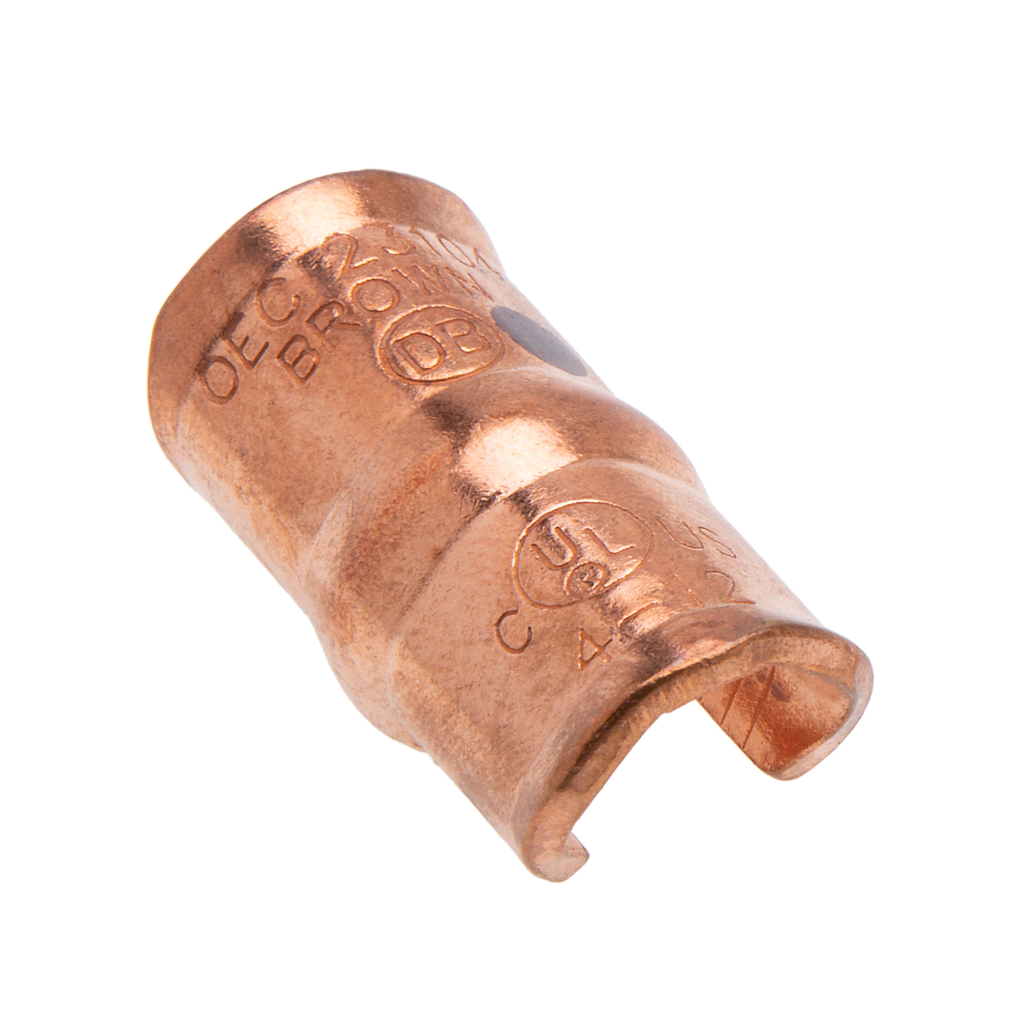

Copper C Tap 4-6 Main – Copper Compression Connector

The Copper C Tap 4-6 Main is a copper compression connector designed to terminate, splice, and tap power connectors in electrical distribution and grounding systems. This component is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections. It ensures positive, all-around compression with low resistance and high pull-out values, meeting NEC250-81 and 250-91 grounding electrode system requirements. Rated for 600 volts, it supports safe and durable grounding connections in switchgear and related electrical applications.

Specifications

• Material: Copper
• Finish: Copper
• Color: Brown
• Conductor Size: 4 AWG
• Dimensions: Length 29.75 millimeters, Width 16.5 millimeters, Height 0.482 inches
• Mechanical Durability: Single Use
• Environmental Conditions: Rated for 90°C
• Voltage Rating: 600 Volts
• UL Listings: UL486A Listed Wire Connector, UL467 Listed Grounding & Bonding
• Country of Origin: India
• Manufacturer: NSI Industries
• Manufacturer Part #: CT-104

Features

• Ensures positive, all-around compression with low resistance and high pull-out values
• Made of high conductivity copper for optimal electrical performance
• Complies with NEC250-81 and NEC250-91 grounding electrode system requirements
• Rated for 600V applications ensuring safety and reliability

Downloads & Links

• Spec Sheet
