Copper C Tap 4/0-1 Main
SKU: #303889
Part: #CTH-111
UPC: 662381098108
Copper C Tap 4/0-1 Main
SKU: #303889
Part: #CTH-111
UPC: 662381098108
Description

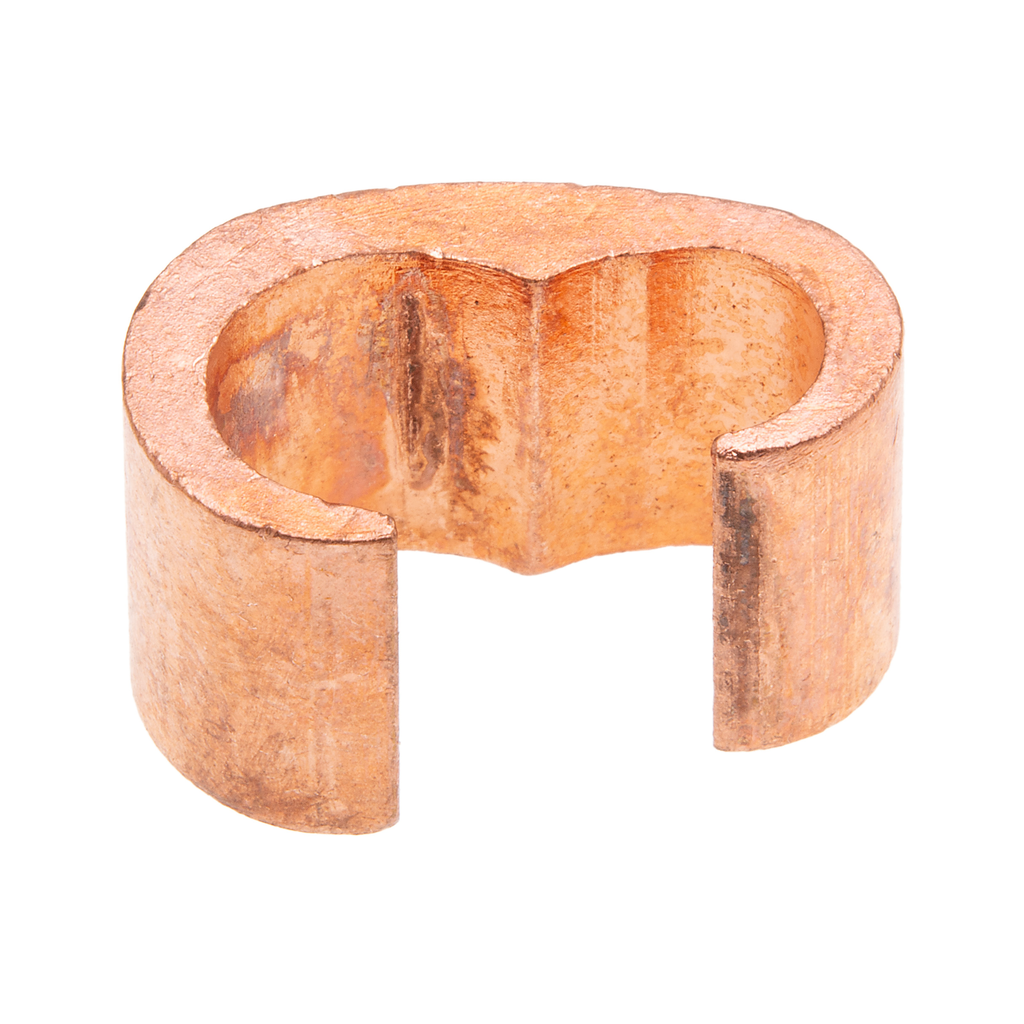

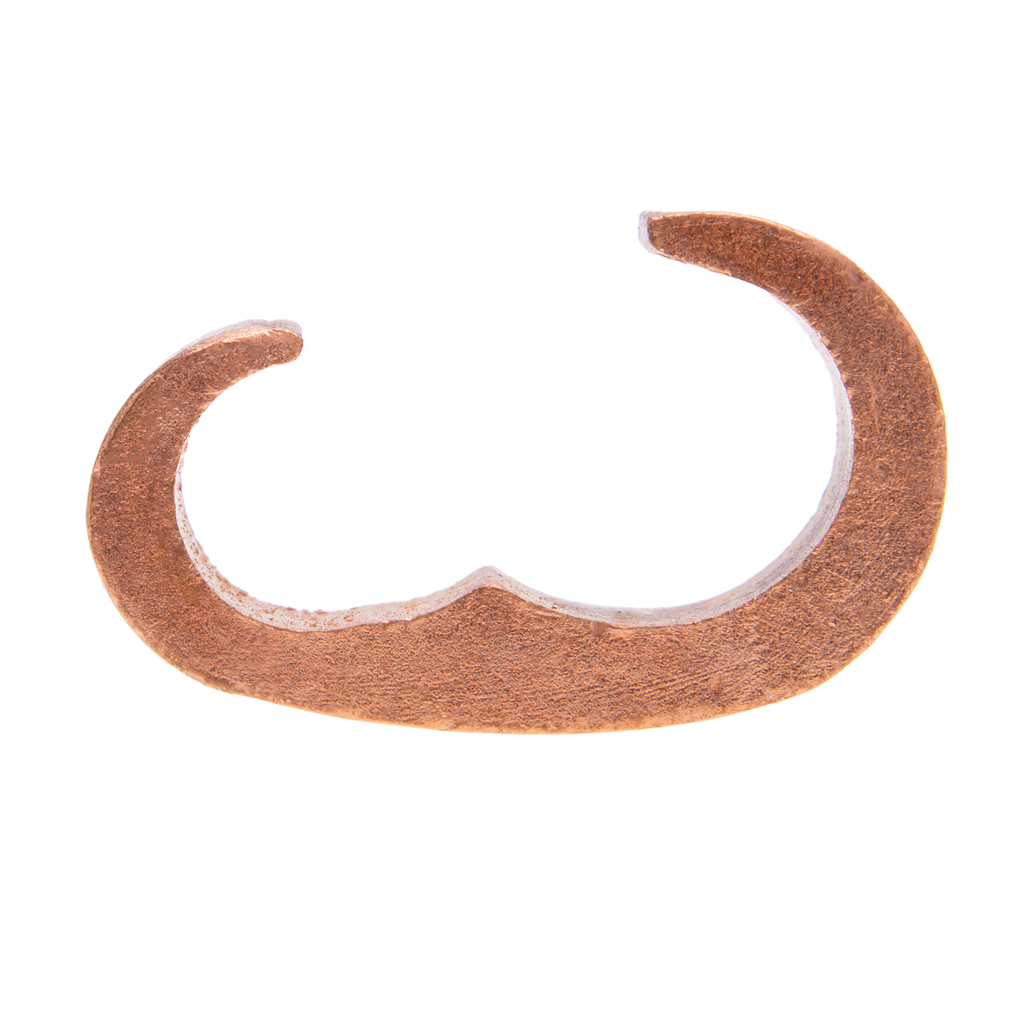

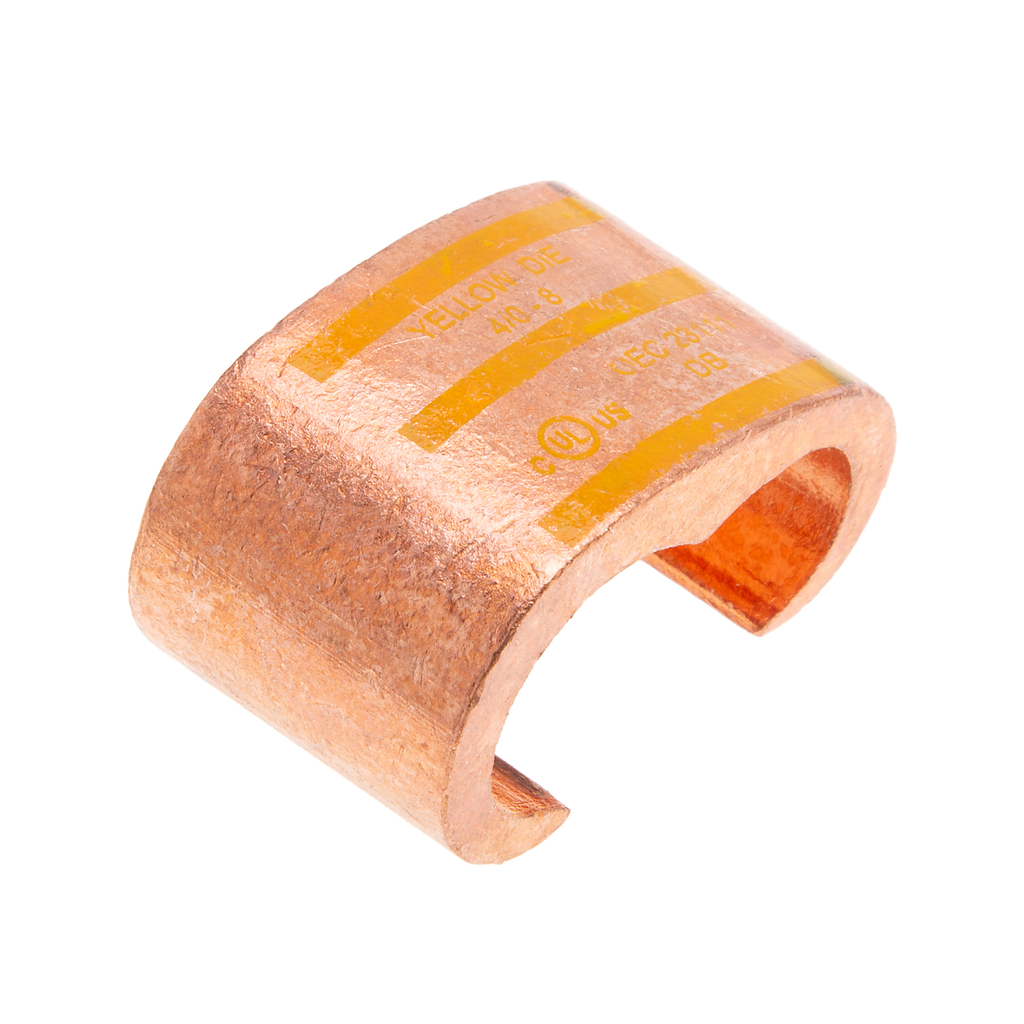

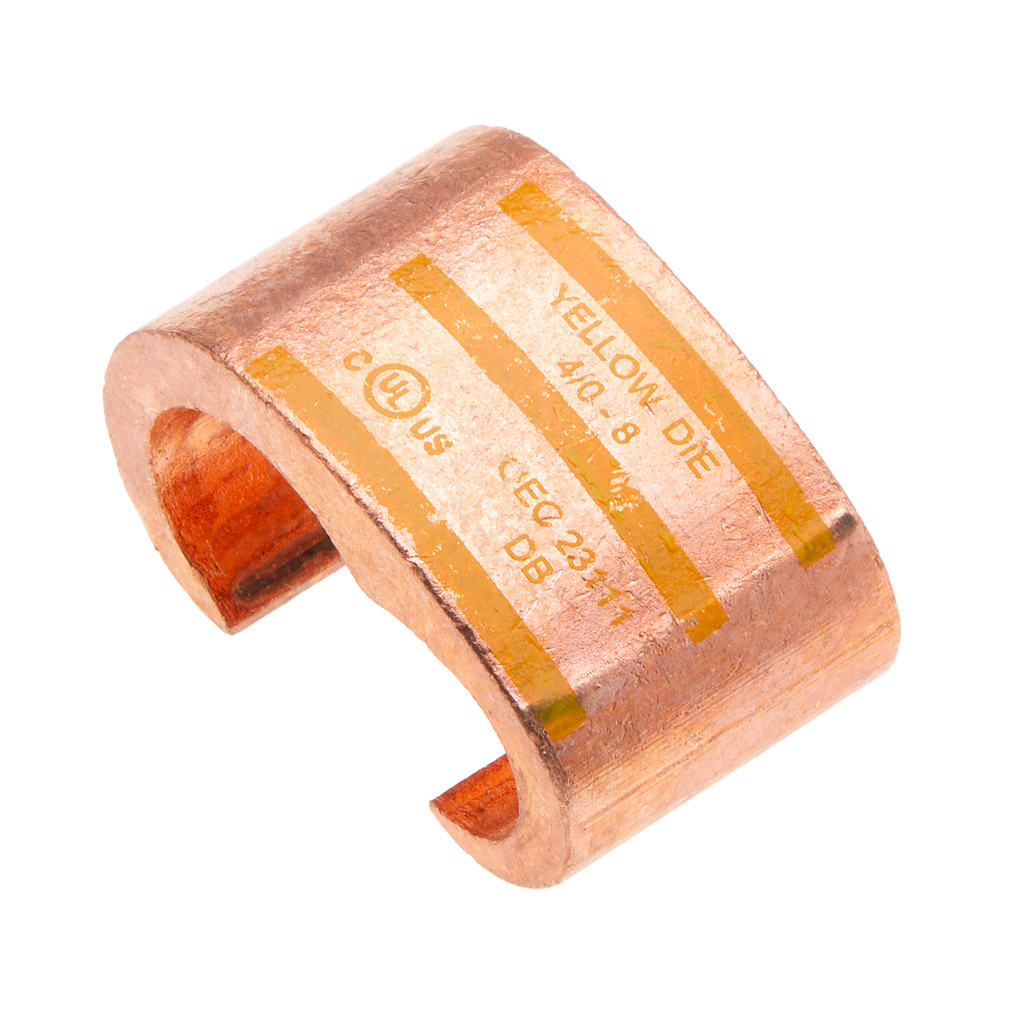

Copper C Tap 4/0-1 Main – Copper Compression Connector
The Copper C Tap 4/0-1 Main is a heavy-duty copper compression connector designed for terminating, splicing, and tapping power connectors. It is suitable for grounding applications, ensuring positive all-around compression with low resistance and high pull-out values. This connector meets NEC250-81 and 250-91 requirements for grounding electrode systems and is rated for 600 volts, making it ideal for electrical distributors and switchgear suppliers handling wire and cable installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: CTH-111
- Material: Copper
- Finish: Copper
- Color: Blue
- Conductor Size: 4/0 AWG
- Voltage Rating: 600 Volts
- Temperature Rating: 90 °C (194 °F max)
- Mechanical Durability: Single Use
- Dimensions: Length 33 in, Width 20 in, Height 1.299 in
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding
- Country of Origin: United States (Made in USA)
Features
- Ensures positive, all-around compression with low resistance and high pull-out values
- Made of high conductivity copper for reliable grounding connections
- Complies with NEC250 grounding electrode system requirements
- Rated for 600V electrical applications
- Single-use design optimized for secure compression connections
