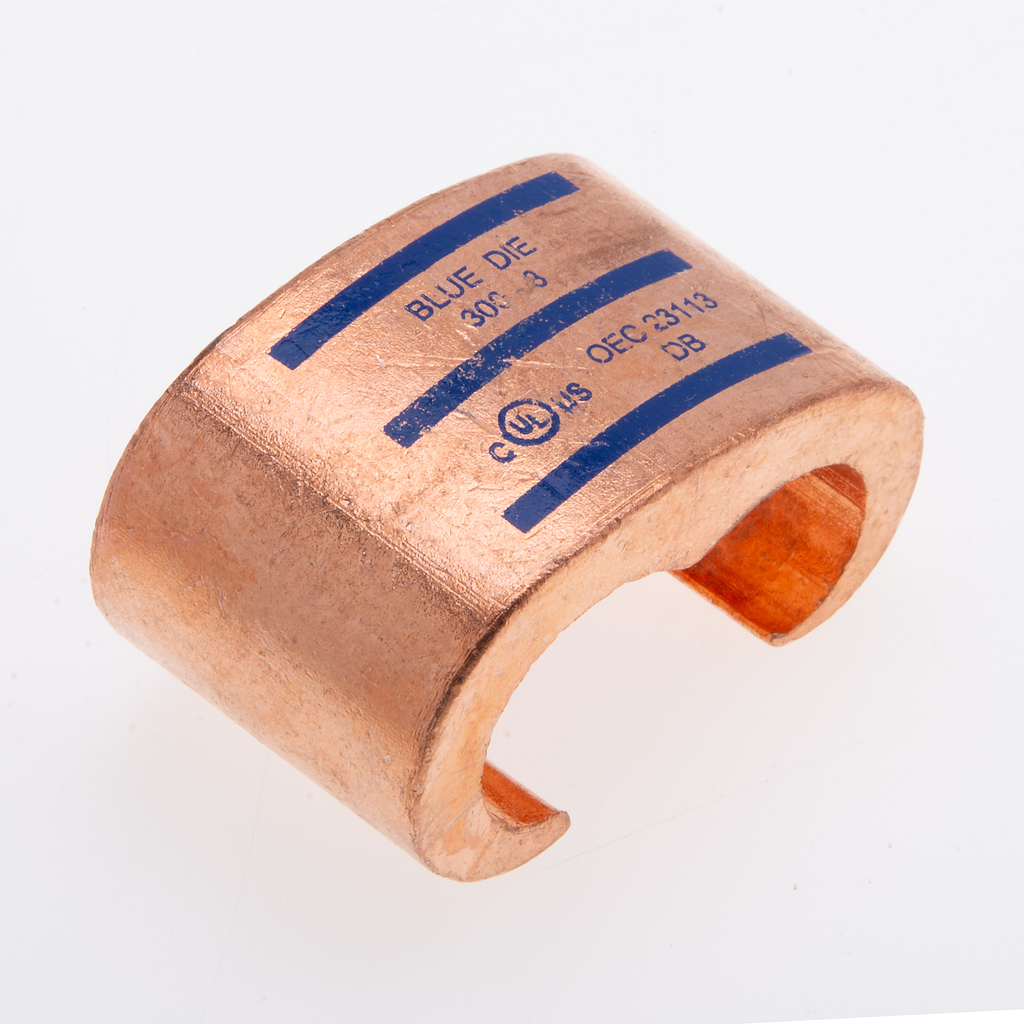

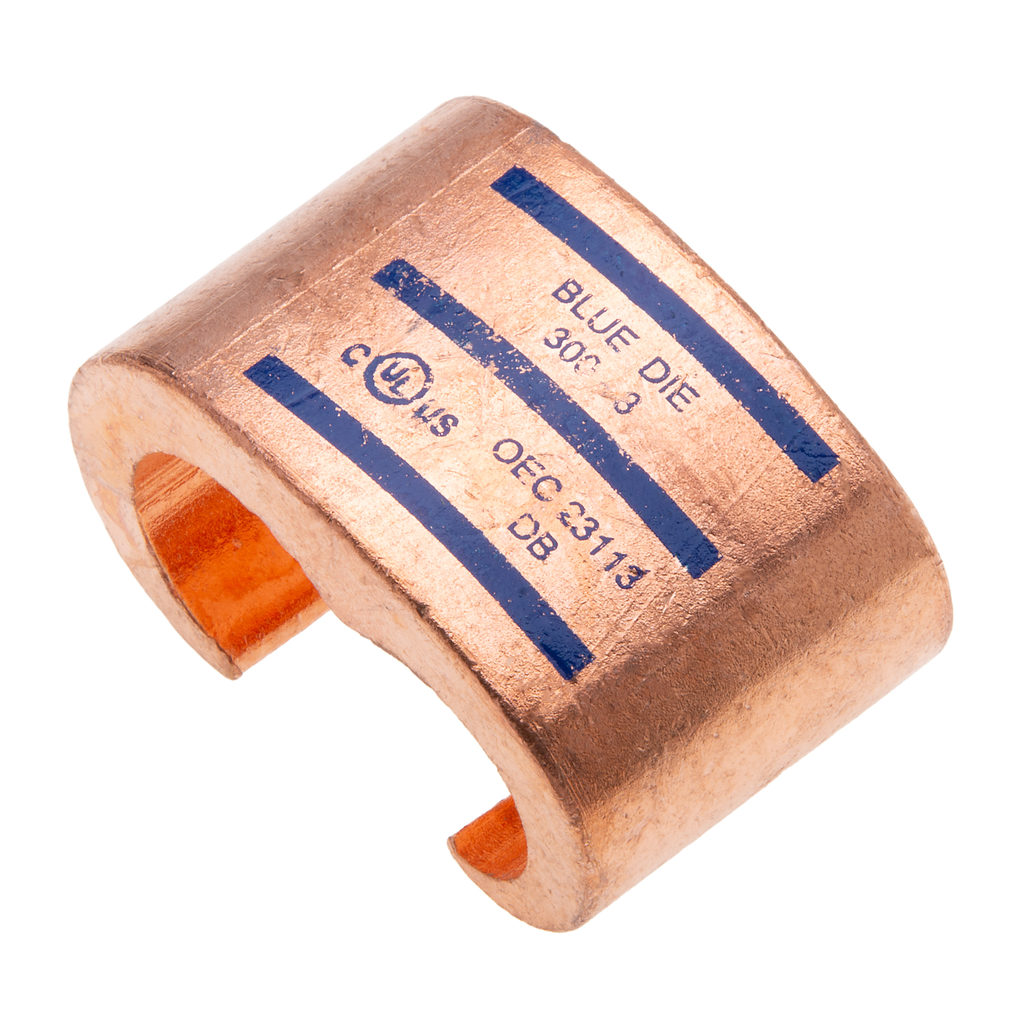

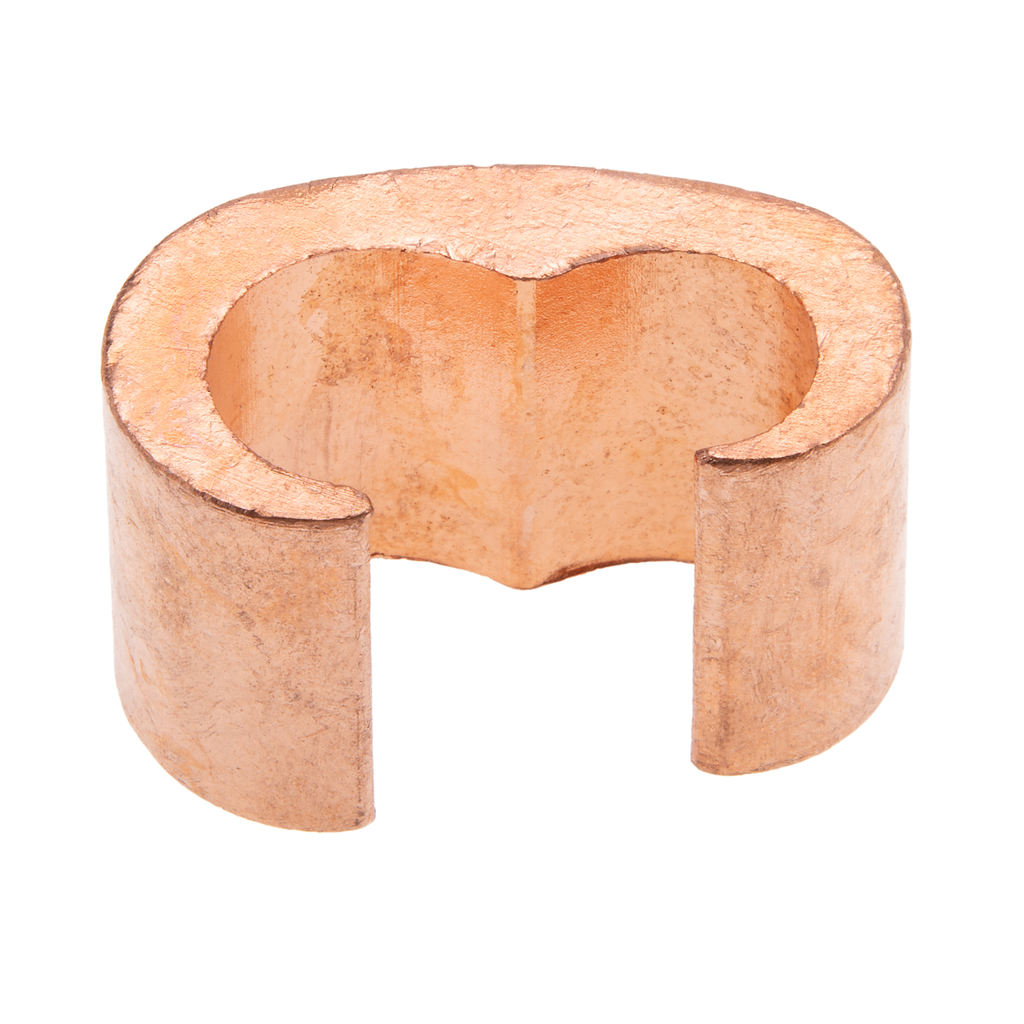

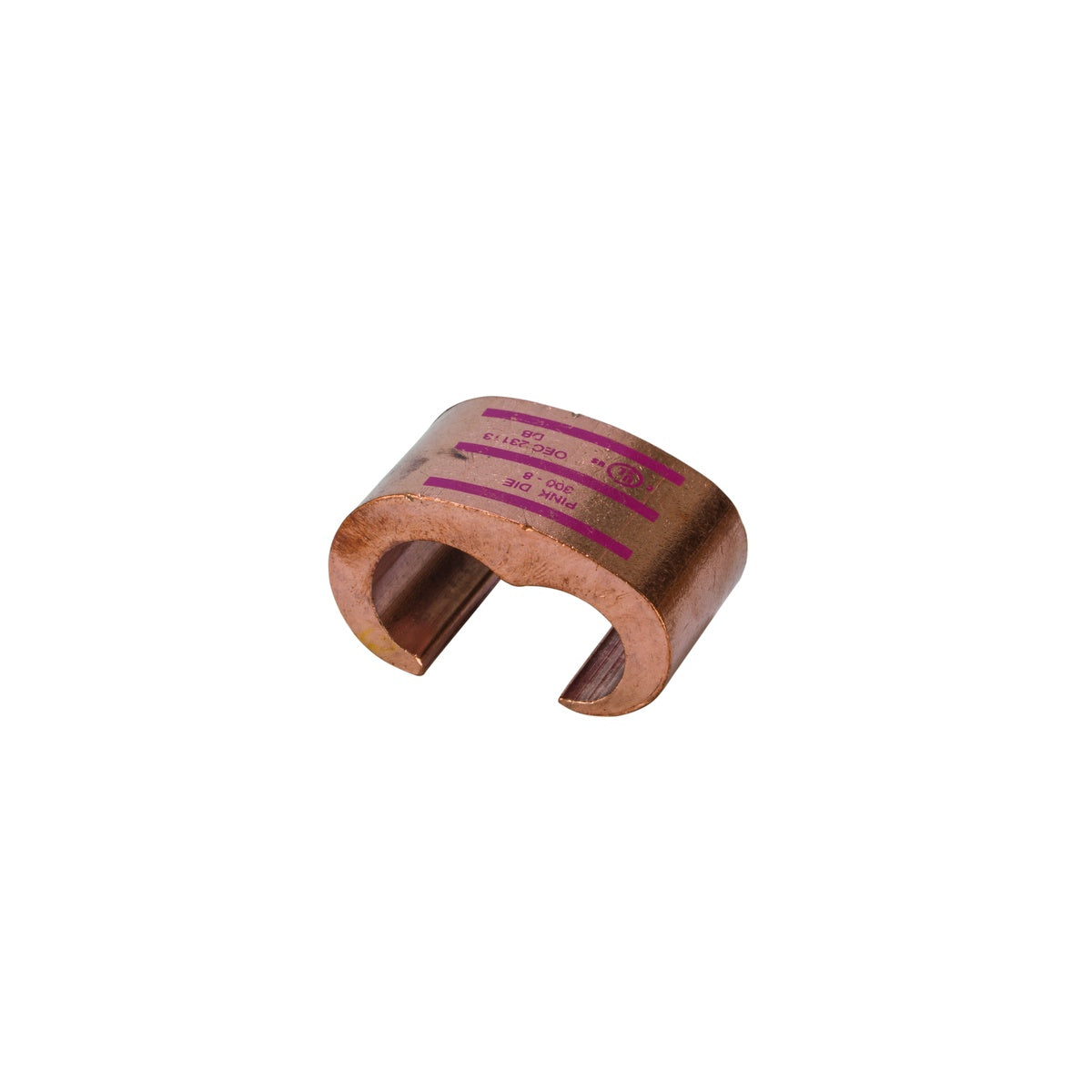

Copper C-Tap 300-2/0 Main Grounding Connector

This Copper C-Tap 300-2/0 Main connector is designed for terminating, splicing, and tapping power connectors in electrical systems. Manufactured by NSI Industries, it is a heavy-duty copper grounding connector suitable for use in wire and cable applications requiring reliable grounding connections. It complies with NEC250-81 and 250-91 standards for grounding electrode systems and is rated for 600 volts, making it appropriate for electrical distributors and switchgear suppliers focusing on grounding solutions.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: CTH-113
• Material: Copper
• Finish: Copper
• Color: Pink
• Conductor Size: 300 MCM to 2/0 AWG
• Voltage Rating: 600 Volts
• Temperature Rating: 90 °C (Max. 194 °F)
• Mechanical Durability: Single Use
• Dimensions: Length 42.5 in, Width 25 in, Height 1.673 in
• Country of Origin: Mexico
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding

Features

• Ensures positive, all-around compression with low resistance and high pull-out values
• Made of high conductivity copper to meet NEC grounding electrode system requirements
• Rated for 600V applications, suitable for grounding in electrical distribution and lighting solutions

Downloads & Links

• Spec Sheet
