Copper C-Tap 3-5 Main
SKU: #303883
Part: #CT-105
UPC: 662381098047
Copper C-Tap 3-5 Main
SKU: #303883
Part: #CT-105
UPC: 662381098047
Description

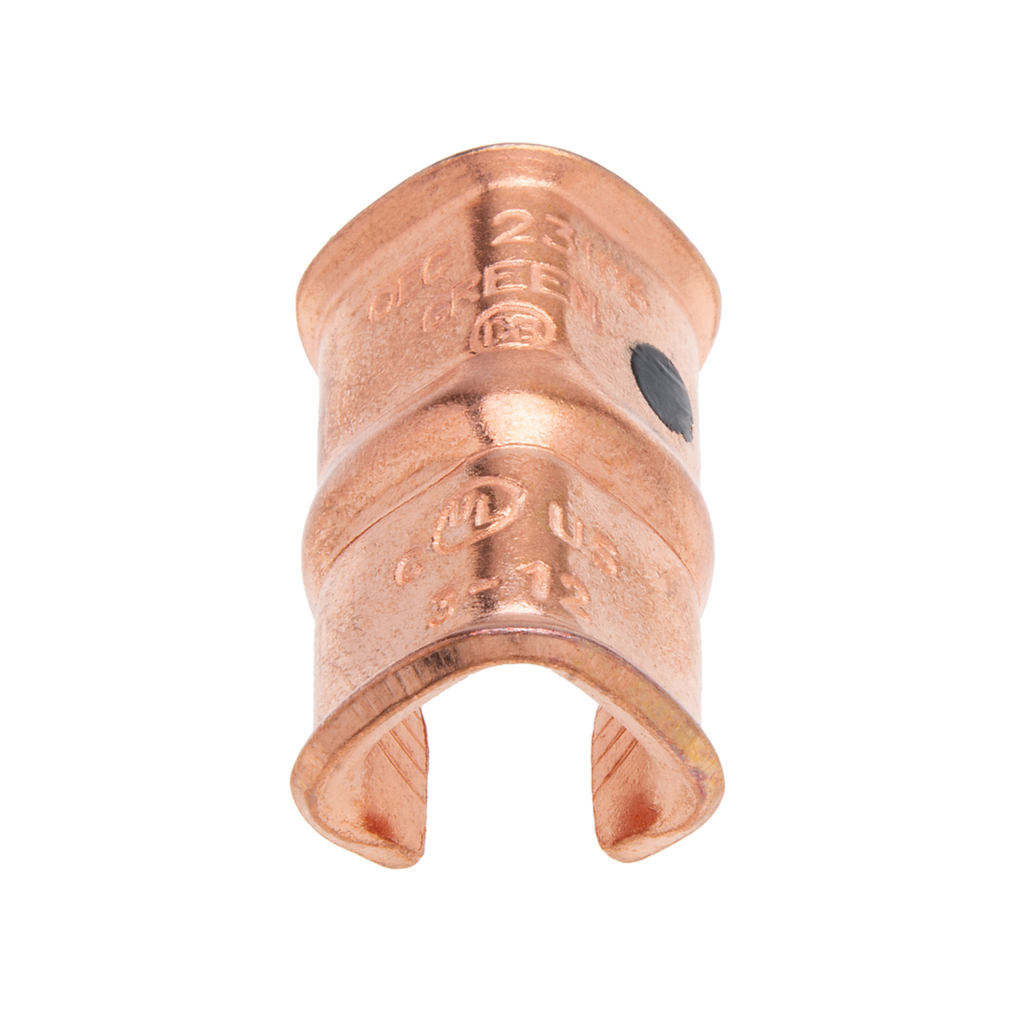

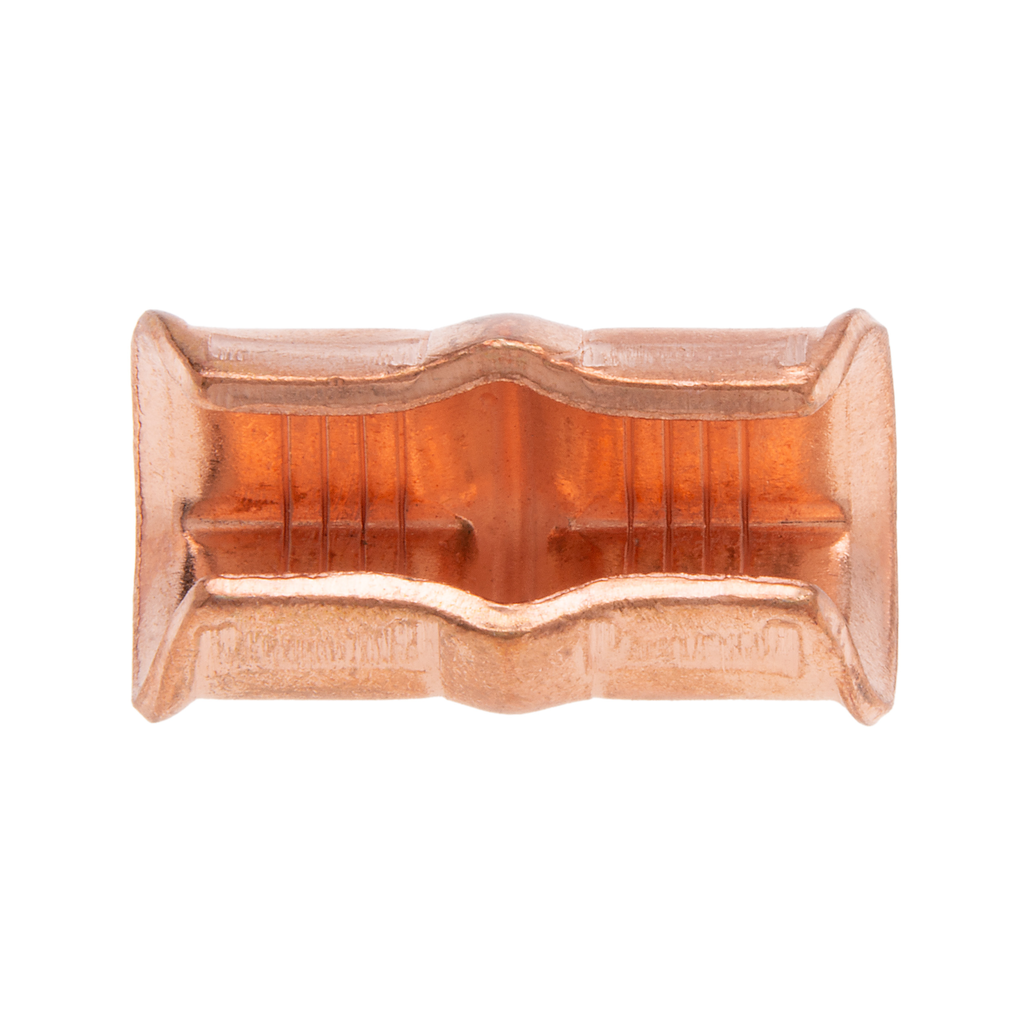

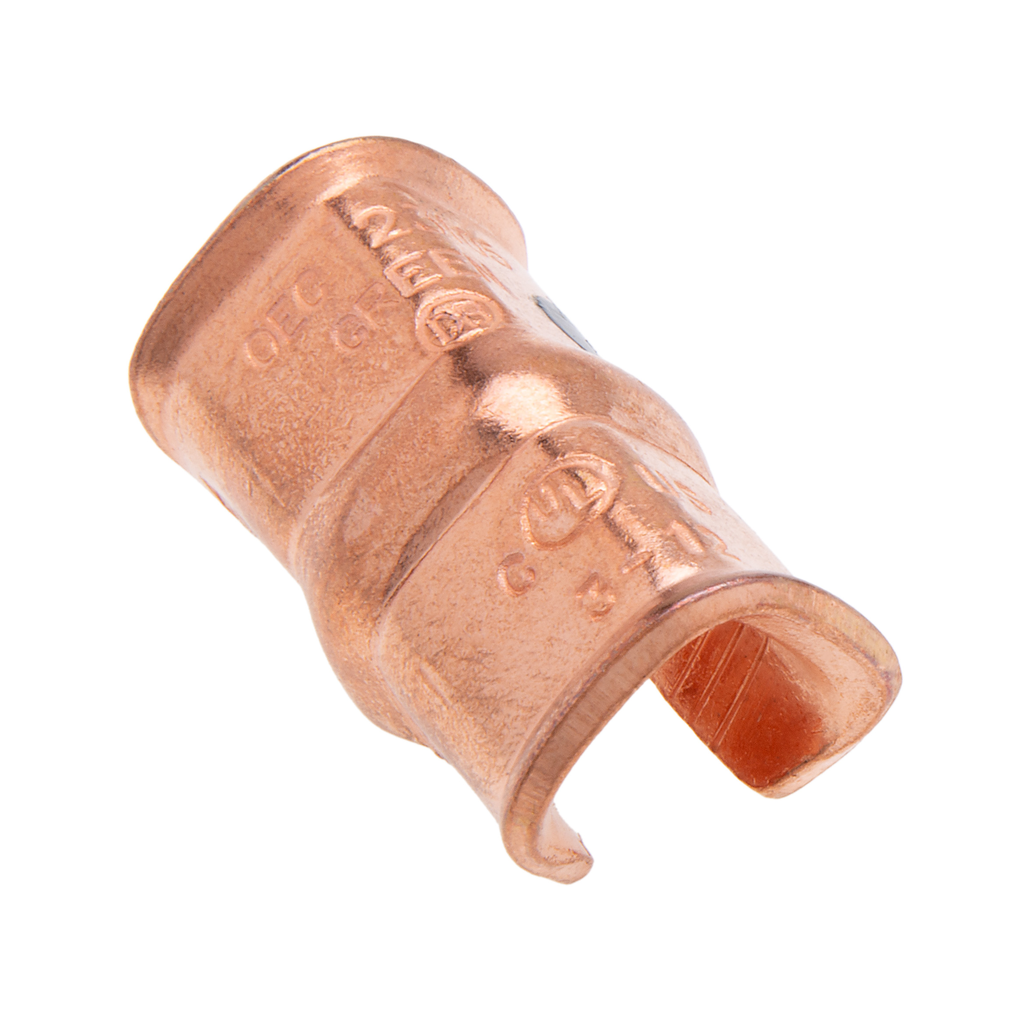

Copper C-Tap 3-5 Main Compression Connector
The Copper C-Tap 3-5 Main is a grounding connector designed for terminating, splicing, and tapping power connectors in electrical systems. Manufactured by NSI Industries, this copper compression connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding solutions. It is rated for 600 volts and complies with NEC250-81 and 250-91 standards, ensuring safe and effective connection to grounding electrode systems. The connector is ideal for wire and cable applications involving 3 to 5 AWG copper conductors.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: CT-105
- Conductor Size: 4 AWG
- Material: Copper
- Finish: Copper
- Color: Green
- Dimensions: Length 29.75 millimeters, Width 17.85 millimeters, Height 0.561 inches
- Product Weight: 3.8 ounces
- Voltage Rating: 600 Volts
- Environmental Conditions: 90°C
- Mechanical Durability: Single Use
- Country of Origin: India
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding
Features
- Ensures positive, all-around compression with low resistance and high pull-out values
- Made from high conductivity copper for optimal electrical performance
- Meets NEC250-81 and 250-91 grounding electrode system requirements
- Rated for use with Class B or C building wire copper cable only
