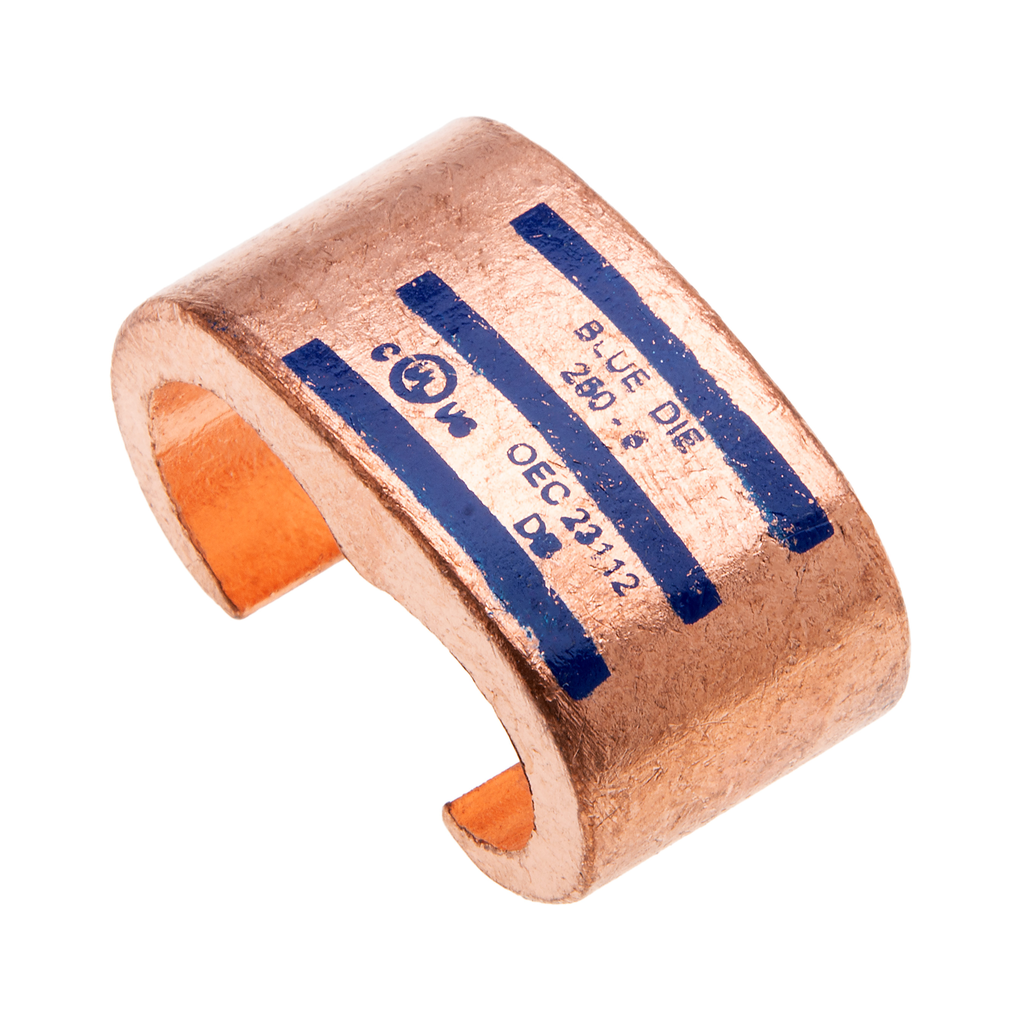

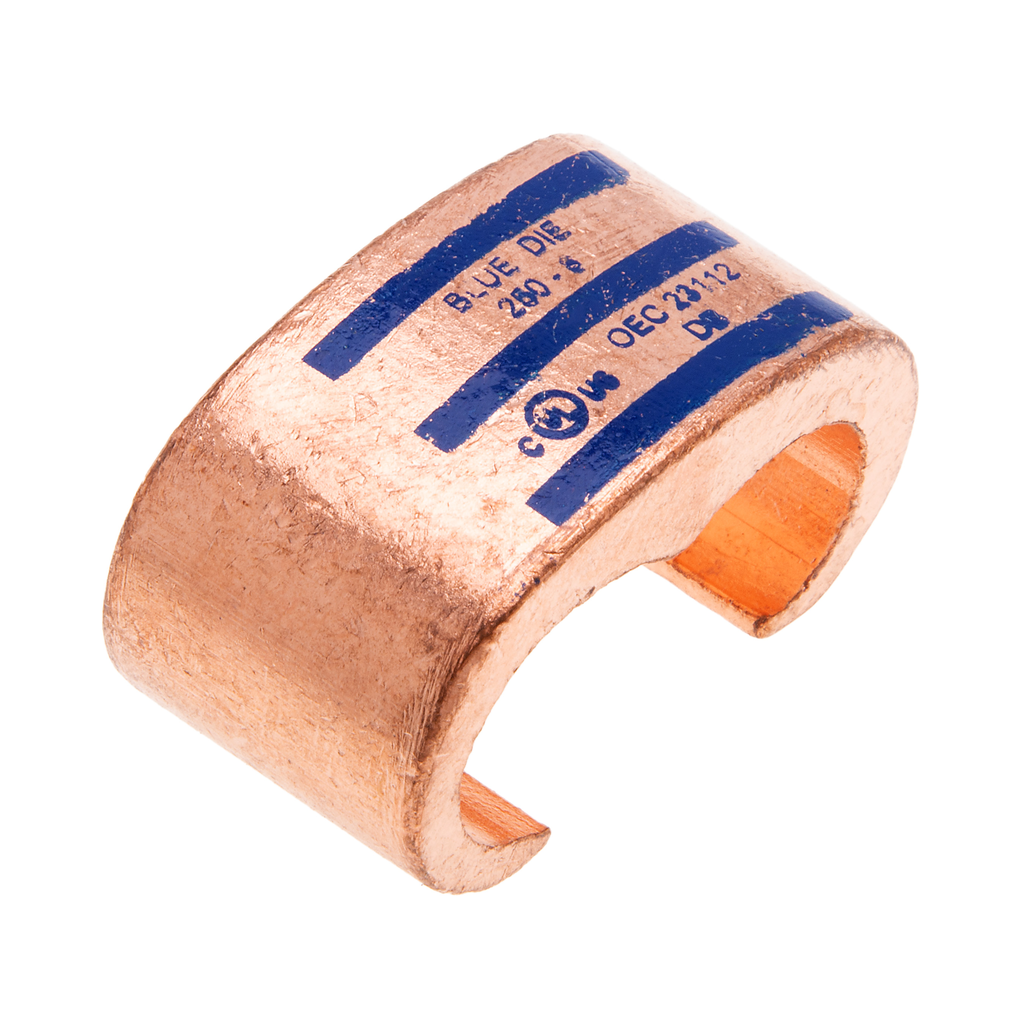

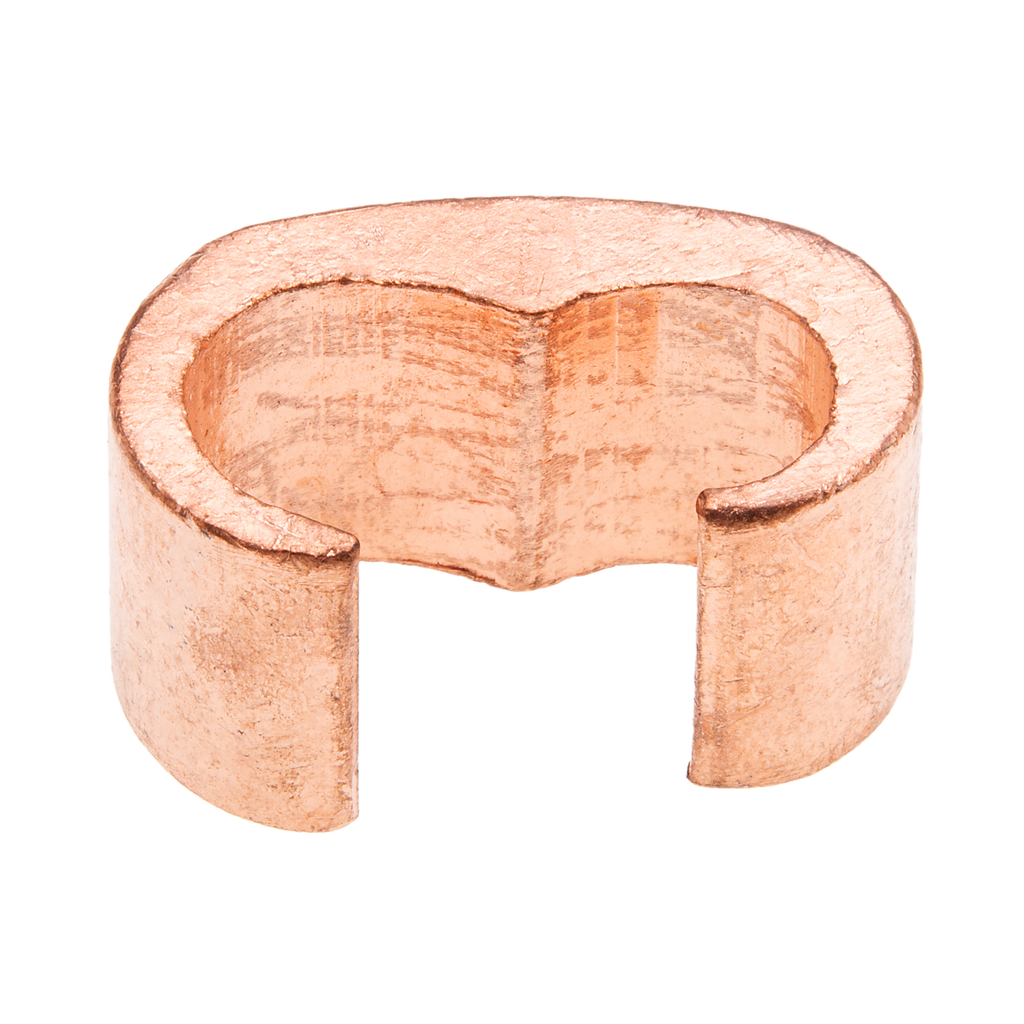

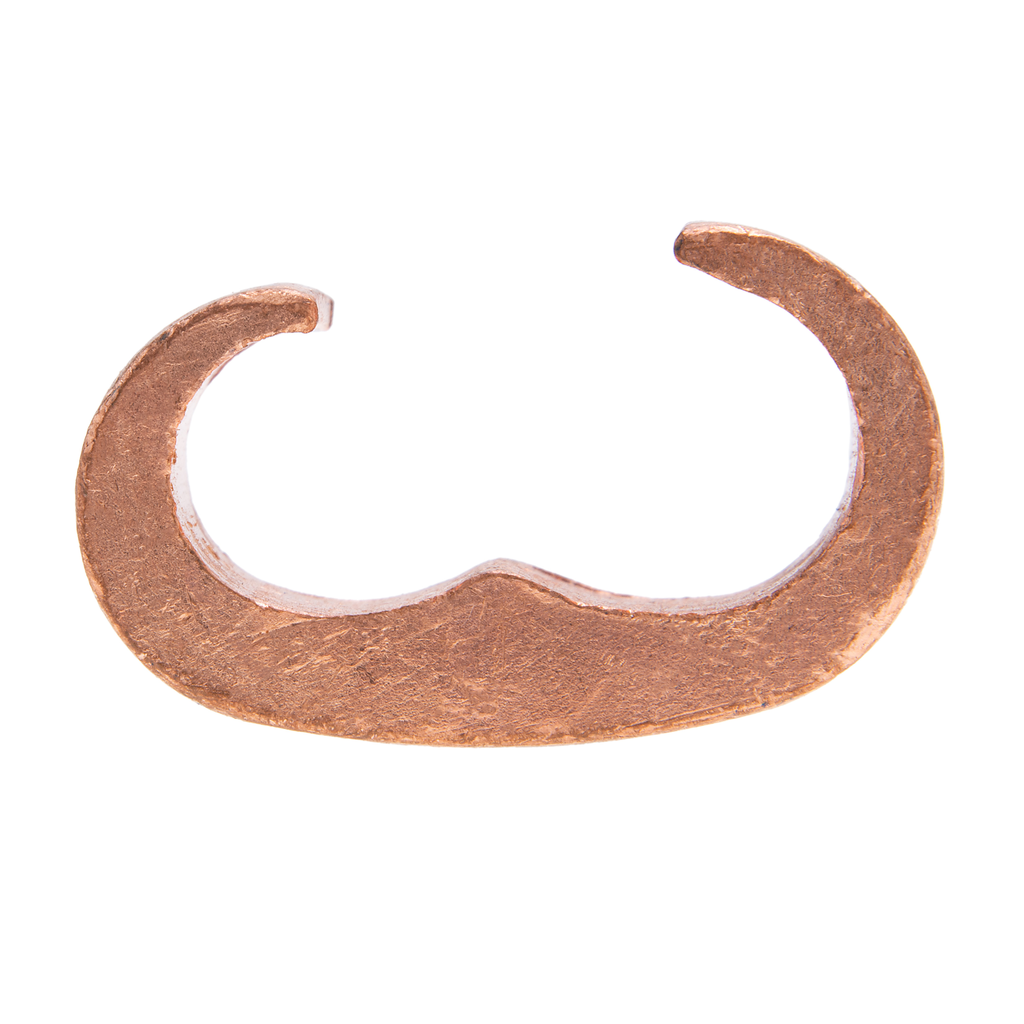

Copper C Tap 250-2/0 Main Electrical Connector

This Copper C Tap 250-2/0 Main connector is designed for terminating, splicing, and tapping power connectors in electrical distribution and grounding systems. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding and bonding solutions. The connector is made of high conductivity copper and complies with NEC250-81 and 250-91 grounding electrode system requirements. It is rated for 600 volts and supports conductor sizes from 250 MCM to 2/0 AWG, making it ideal for wire and cable applications in lighting and power distribution.

Specifications

• Manufacturer Part #: CTH-112
• Material: Copper
• Finish: Copper
• Color: Brown
• Conductor Size: 250 MCM
• Voltage Rating: 600 Volts
• Temperature Rating: 90 °C (Max. 194 °F)
• Dimensions (L x W x H): 37 mm x 22.5 mm x 1.456 in
• Product Weight: 0.45 lbs
• Mechanical Durability: Single Use
• Country of Origin: United States
• Made in USA: Yes
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding

Features

• Ensures positive, all-around compression with low resistance and high pull-out values
• Meets NEC250 grounding electrode system requirements
• Heavy duty copper construction for durability and conductivity
• Rated for 600V electrical applications
• Brown color coding for easy identification in wire and cable installations

Downloads & Links

• Spec Sheet
