Features

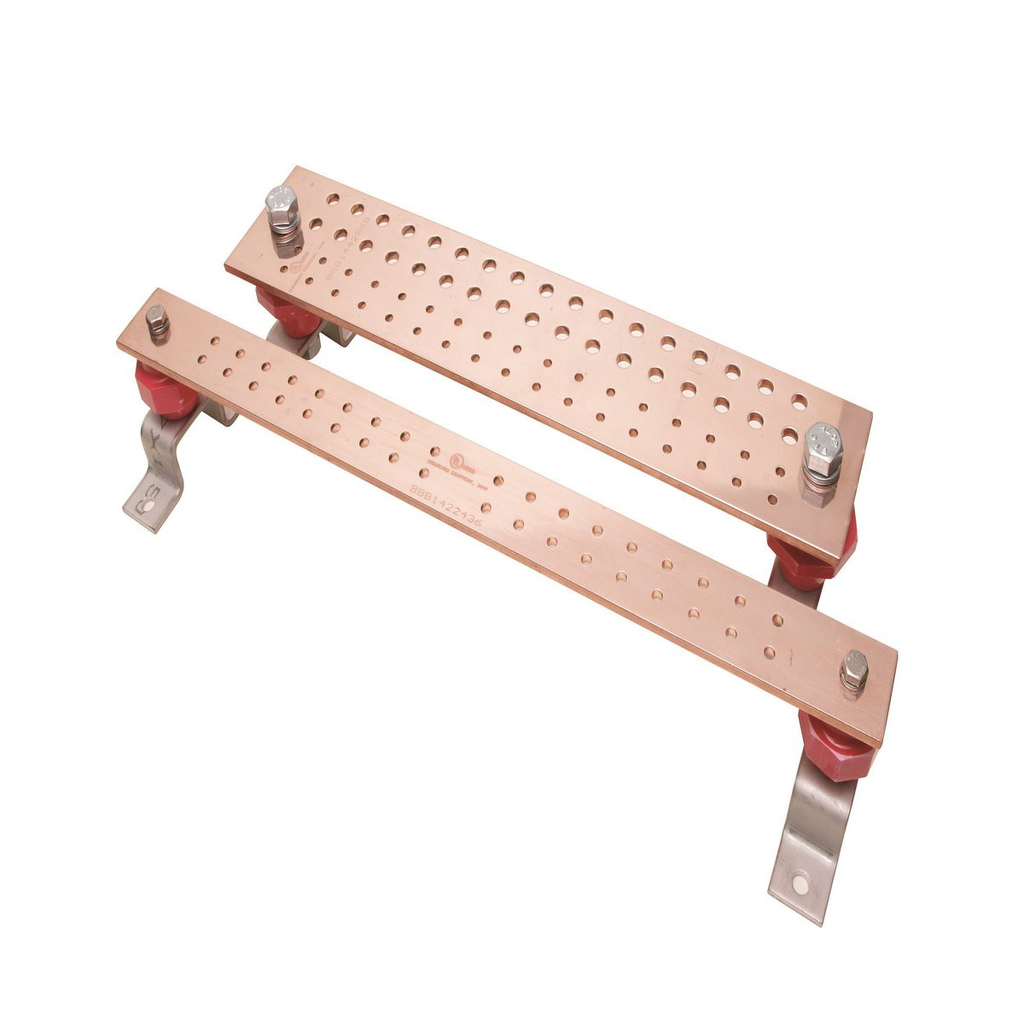

• Copper busbar is used in a variety of applications. UL Listed for grounding. Can be used as a common ground point and can also be used in "power" applications as well.
• Bare Copper Busbar, UL Listed For Grounding, Available In Many Sizes And Hole Patterns, Brackets And Insulators Included With Most Styles, Also Available In Undrilled, Horizontal And Vertical Versions, Busbar Is Used In A Variety Of Applications, Can Be Used As A Common Ground Point And Power Applications As Well, Dimension K: 0.44 IN, Number Of Holes: 24, With Insulator-bracket: Yes, Dimension E2: 1 IN, Dimension F1: 1.69 IN, Dimension E1: 0.75 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Dimension - Bar Length inch: 16 in
• Dimension - Bar Length mm: 406 mm
• Dimension - Bar Thickness inch: 0.25 in
• Dimension - Bar Thickness mm: 6 mm
• Dimension - Bar Width inch: 4 in
• Dimension - Bar Width mm: 102 mm
• Dimension - Hole Size inch: 0.44 in
• Dimension - Hole Size mm: 11 mm
• Dimension - Width fraction: 4 in
• Dimension - Width inch: 4.00 in
• Width: 4.00 in
• Each - Width: 4.00 in
• Physical Attribute - Number of Holes: 24
• Product Type: Mechanical
• Standards - RoHS Compliance Status: CM
• Application: For Used As A Common Ground Point And Power Applications
• Special Features: Features: Bare Copper Busbar, UL Listed For Grounding, Available In Many Sizes And Hole Patterns, Brackets And Insulators Included With Most Styles, Also Available In Undrilled, Horizontal And Vertical Versions, Busbar Is Used In A Variety Of Applications, Can Be Used As A Common Ground Point And Power Applications As Well, Dimension K: 0.44 IN, Number Of Holes: 24, With Insulator-bracket: Yes, Dimension E2: 1 IN, Dimension F1: 1.69 IN, Dimension E1: 0.75 IN
• Sub Brand: BUS BAR
• Type: BBB
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: BUSBAR 1/4X4X16 24HOLE
• Freight Class Code: 16027000
• Harmonization Code: 8536908585
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Replaced Catalog Number: 10104608
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B41BDLF
• Material: Copper
• Base Unit of Measure: EA
• BOX SIZE: 4.600x16.500x8.600 (in)
• Carton - Gross Weight per Pack: 6.750 lb.
• Carton - Number of Sub Packs: 1
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810489376
• Carton - Total Units: 1
• Case Weight: 6.750 lb.
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Standard Package Quantity: 1

Certifications

• CSA Approved: No
• cULus: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
