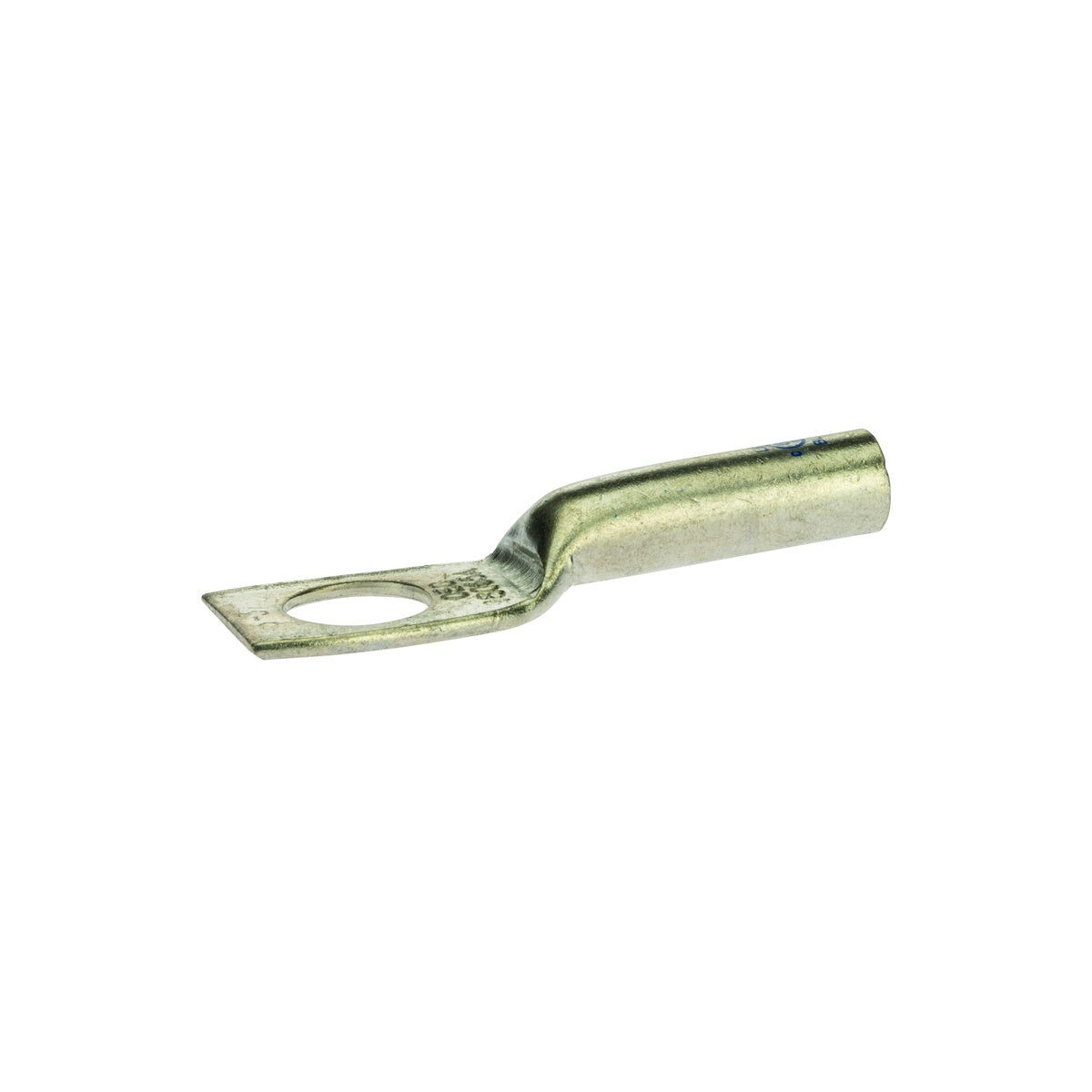

Copper Blue Compression Long Lug, 6 AWG, 3/8” Mount
SKU: #305312
Part: #L638
UPC: 662381034281
Copper Blue Compression Long Lug, 6 AWG, 3/8” Mount
SKU: #305312
Part: #L638
UPC: 662381034281
Description
Copper Blue Compression Long Lug, 6 AWG, 3/8” Mount – Compression Connector
The Copper Blue Compression Long Lug, catalog number L638 from NSI Industries, is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. This compression lug is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring reliable secondary power distribution connections in buildings, power plants, and industrial applications.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Color: Blue
- Cable Size: #6 AWG (STR)
- Mounting: 3/8” Mounting Hole
- Number of Holes: 1
- Length: 1.91 in
- Width: 0.59 in
- Height: 0.30 in
- Maximum Temperature: 194 degrees Fahrenheit (90 °C)
- Voltage Rating: 600V
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG)
- Country of Origin: India
- Product Weight: 2.2 oz
Features
- Constructed from high conductivity copper tubing for optimal electrical performance
- Tin-plated finish provides corrosion resistance and low contact resistance
- Standard installation hole sized for 3/8” mounting bolts
- Chamfered port designed to terminate a 6 AWG conductor
- Legible die index and blue color-coding for easy identification
- Closed barrel design sealed against moisture and contamination
- Creates a homogenous, vibration-resistant, and mechanically strong connection when crimped
- Listed for use up to 35KV when installed according to cable manufacturer instructions
