COOPER CRS T100MHDG 1 FORM 5 T COND BODY MALLEABLE HDG – Hot Dip Galvanized Conduit Body

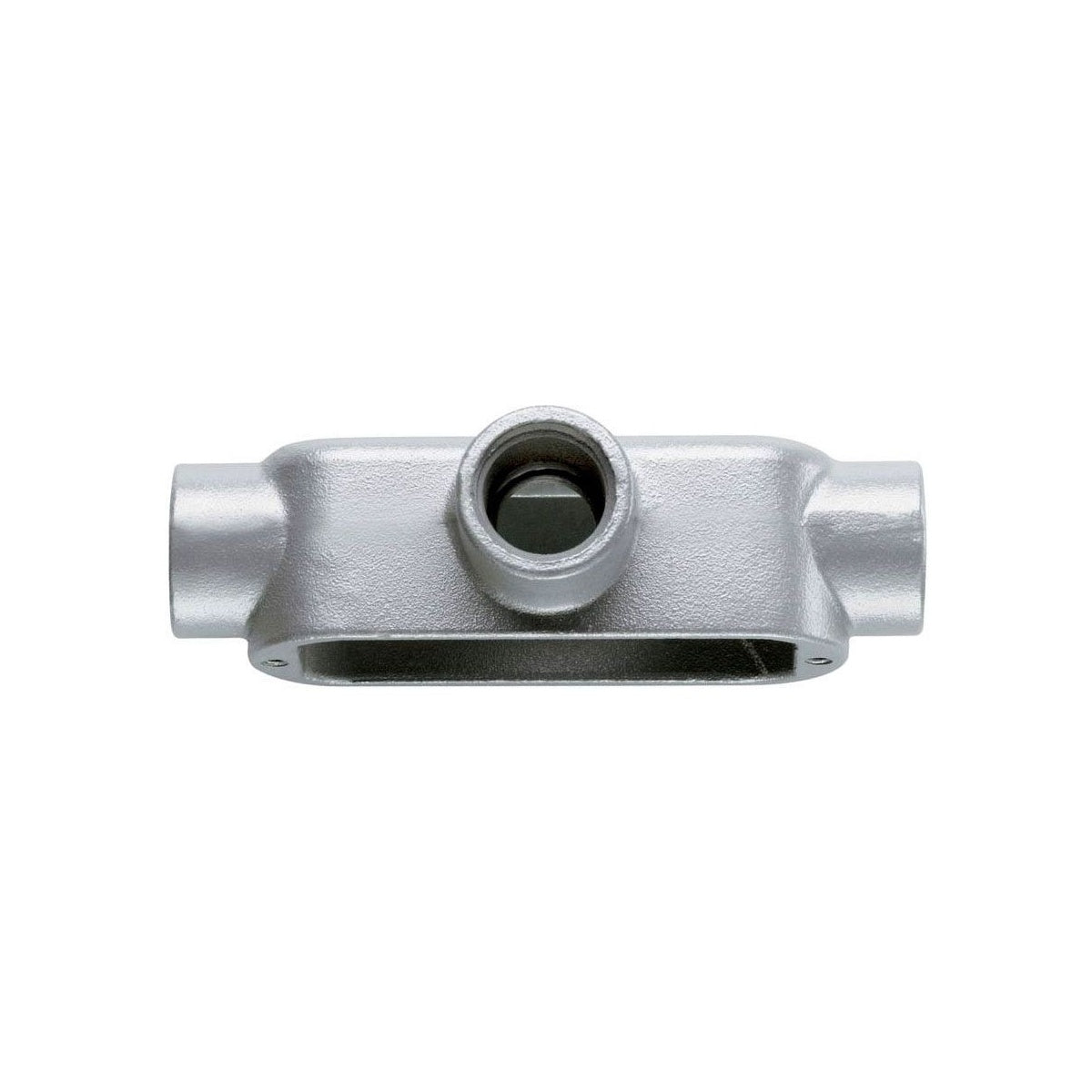

The COOPER CRS T100MHDG is a Form 5 Type T malleable iron conduit body with a hot dip galvanized finish, designed for use in commercial and institutional building electrical conduit systems. It serves as a conduit outlet for pulling conductors, making splices and taps, connecting conduit sections, and providing access for maintenance. This product is suitable for electrical distributors and switchgear suppliers seeking durable conduit bodies for lighting solutions and wire and cable installations in harsh environments.

Specifications

• Manufacturer: Cooper Crouse-Hinds
• Manufacturer Part #: T100M HDG
• Product Weight: 2.21 lbs
• Application: Commercial / Institutional Buildings / Structures
• Type: Form 5, Type T conduit body
• Material: Malleable iron body with hot dip galvanized finish
• Finish: Hot dip galvanized per ASTM A123/A123M
• Dimensions (inches): Size 1" – A: 2.65, B: 9.00, C: 2.60
• Internal Volume: 15.0 cubic inches
• Unit Quantity: 10 per pack
• Weight per 100 units: 196 lbs
• Max Number of Conductors: 3 #4 XHHW
• UPC: 662277037921

Features

• Hot dip galvanized finish provides corrosion protection by forming a durable metallurgical bond between zinc and steel
• Designed to act as pull outlets, provide splice and tap access, and facilitate conduit connections and bends
• Compatible with commercial electrical conduit systems in harsh environments including road salt exposure
• Interchangeable with Appleton Form 35 conduit bodies
• Built-in rollers facilitate wire pulling
• Integral smooth and rounded bushings protect wire insulation
• Solid neoprene gaskets (convertible to open type)
• Stainless steel cover screws for durability
• Domed sheet steel covers for additional cubic capacity
• Integral gasket cover provides NEMA 4 rating for environmental protection
• UL Standard 514B and cUL to CSA Standard C22.2 No. 18 certified
