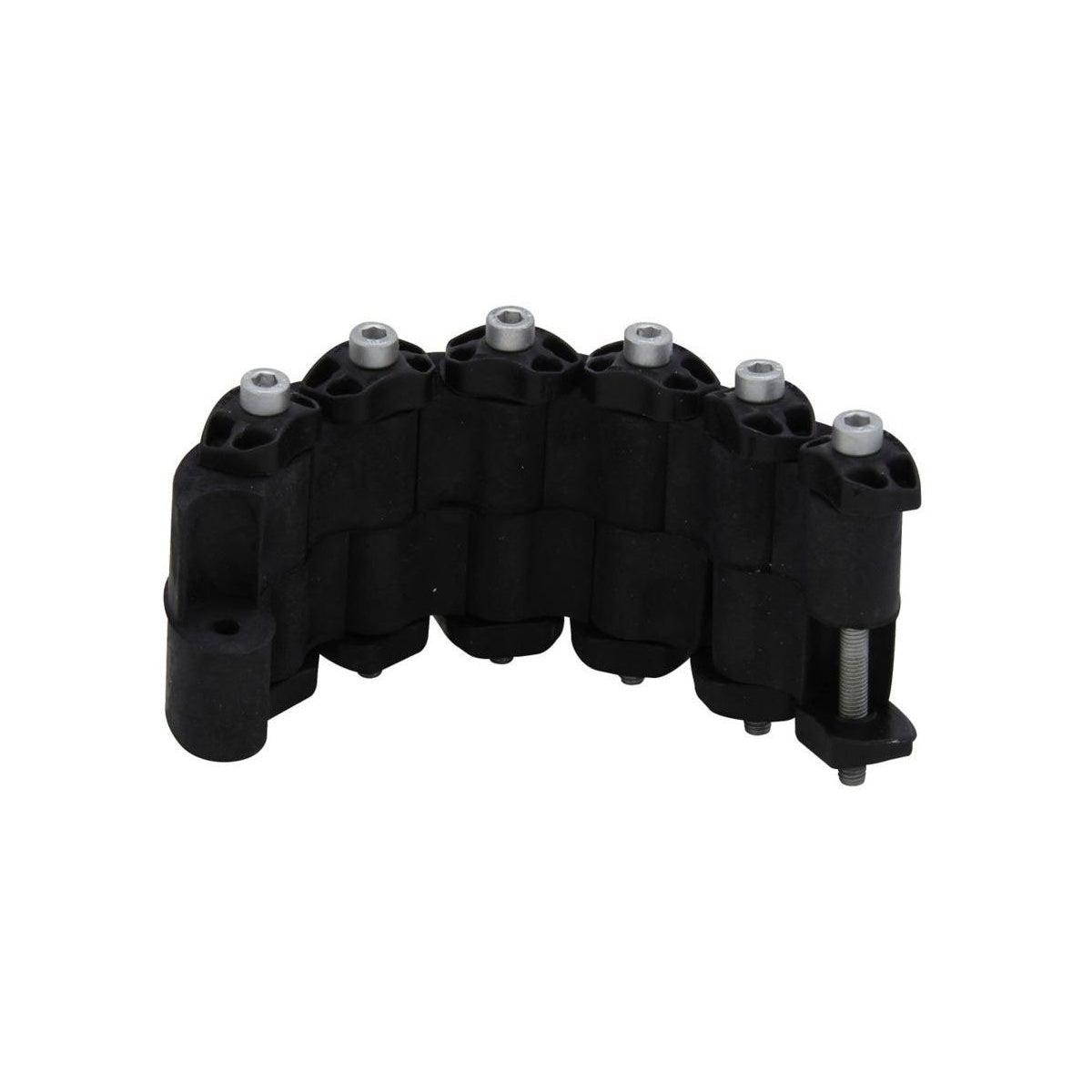

COOPER CRS LSA300C08 LINK-SEAL Environmental Seal for Conduit

The COOPER CRS LSA300C08 LINK-SEAL is a modular mechanical environmental seal designed for sealing conduits passing through concrete walls, floors, or ceilings. Manufactured by Cooper Crouse-Hinds, this product provides a quick, economical, and reliable solution for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring durable conduit seals in wet and corrosive environments.

Specifications

• Manufacturer: Cooper Crouse-Hinds
• Manufacturer Part Number: LSA300C08
• Product Weight: 1.75 lbs
• Seal Material: EPDM rubber (black) for environmental seal
• Pressure Plates: Glass-reinforced nylon
• Fasteners: Carbon steel with zinc dichromate plating
• Operating Temperature Range: -40¬∞F to +250¬∞F
• Hydrostatic Seal Rating: 20 PSIg (40 feet of head)
• Conduit Nominal Size: 3 inches EMT, IMC, or RSC
• Cast or Cored Hole Diameter: 5 inches
• Number of Links/Bolts: 8

Features

• Quick and economical installation, saving up to 75% installation time compared to competitors
• Positive hydrostatic sealing rated at 20 PSIg, exceeding most application requirements
• Designed for long life as a permanent environmental seal resistant to aging, ozone, sunlight, water, and a wide range of chemicals
• Provides electrical insulation where cathodic protection is required
• Compensates for conduit misalignment and absorbs shock, sound, and vibration to reduce conduit fatigue
• Suitable for wet locations and corrosive environments
• Compatible with plastic or steel sleeves cast into concrete walls or floors
