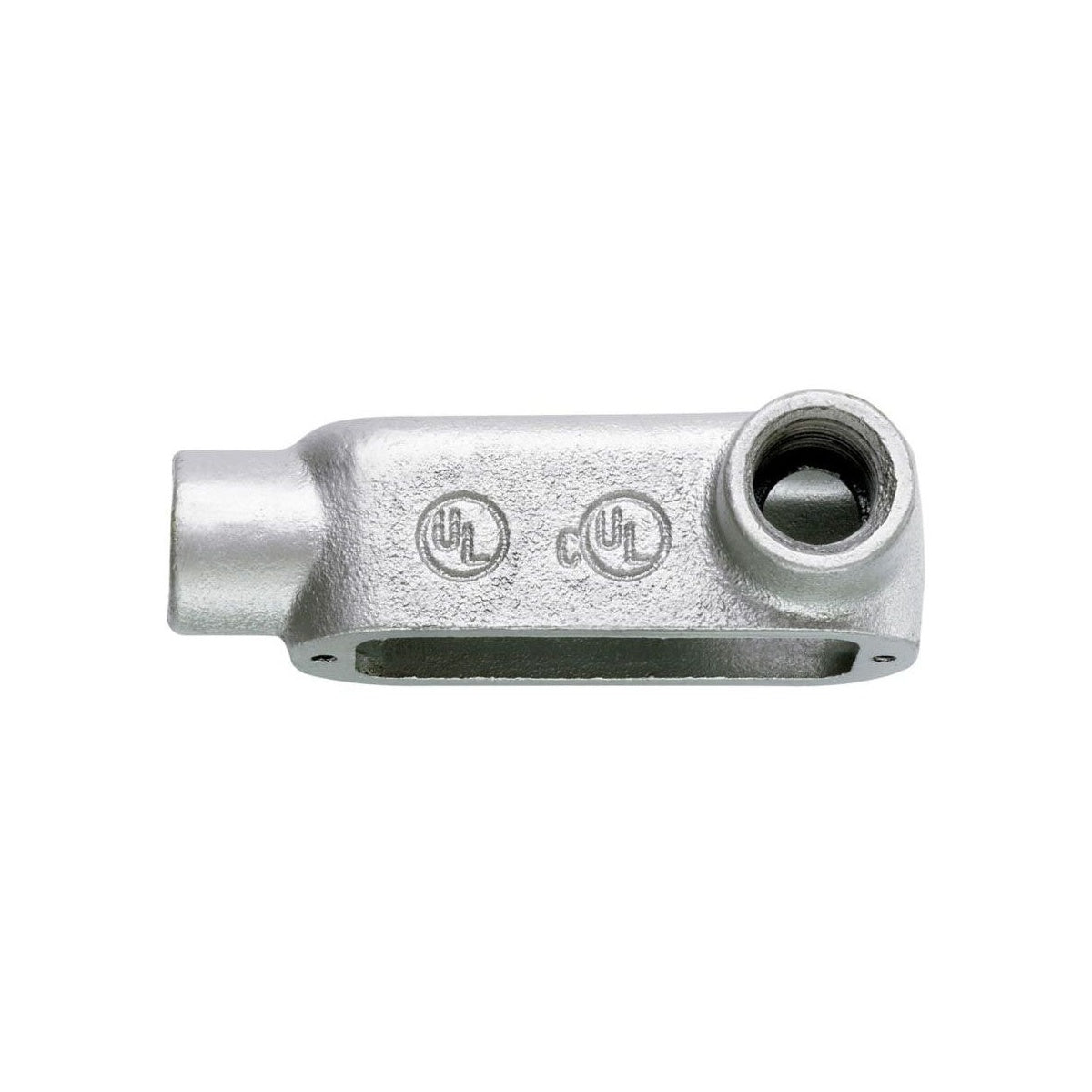

COOPER CRS LR400M 4 FORM 5 LR COND BODY MALLEABLE – Malleable Iron Conduit Body

The COOPER CRS LR400M Form 5 malleable iron conduit body is designed for use in commercial and institutional building conduit systems. It serves as a conduit outlet body that facilitates wire pulling, provides access for splices and taps, and acts as mounting outlets for lighting fixtures and wiring devices. This product is suitable for electrical distributors and switchgear suppliers requiring durable conduit bodies compatible with wire and cable installations.

Specifications

• Manufacturer: Cooper Crouse-Hinds
• Manufacturer Part #: LR400M
• Size: 4”
• Internal Volume: 324.0 cubic inches
• Weight: 26.08 lbs (per unit)
• Max Number of Conductors: 3 #350MCM XHHW
• Material: Malleable Iron
• Application: Commercial / Institutional Buildings / Structures
• UPC: 782274756127

Features

• Form 5 conduit body design for pull outlets, splices, taps, and mounting outlets
• Interchangeable with Appleton Form 35 conduit bodies
• Built-in rollers to facilitate wire pulling (1¼” to 4” sizes)
• Smooth and rounded integral bushings protect wire insulation
• Solid neoprene gaskets convertible to open type by removing perforated center section
• Stainless steel cover screws for corrosion resistance
• Domed sheet steel covers provide additional cubic capacity
• Integral gasket cover provides NEMA 4 rating for environmental protection
• Electrogalvanized and aluminum acrylic paint finish for durability
• Certified to UL Standard 514B and cUL/CSA Standard C22.2 No. 18
