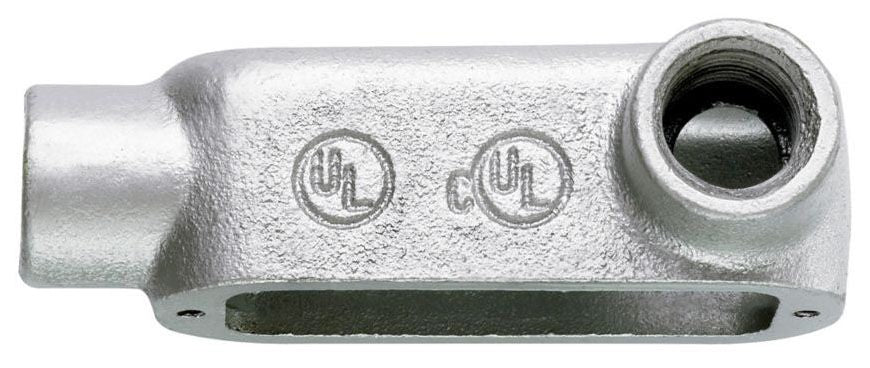

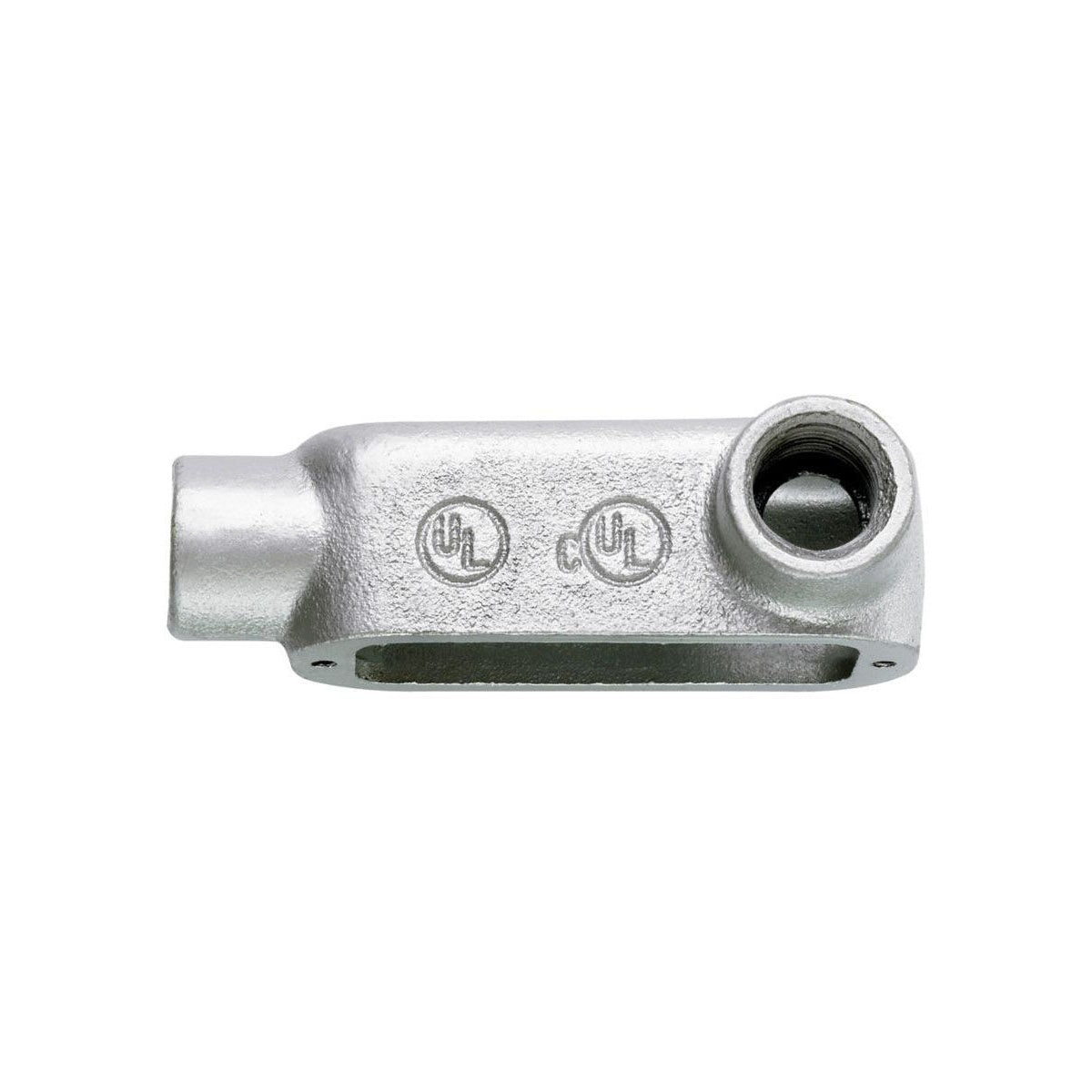

COOPER CRS LR100MHDG 1 FORM 5 LR COND BODY MALLEABLE HDG Conduit Body

The COOPER CRS LR100MHDG is a Form 5 LR conduit body designed for commercial and institutional building applications. Manufactured by Cooper Crouse-Hinds, this malleable iron conduit body features a hot dip galvanized finish to provide durable corrosion protection in harsh environments. It is suitable for use in conduit systems to facilitate wire pulling, provide access for conductor splices and taps, and support mounting for lighting fixtures and wiring devices. This product is ideal for electrical distributors and switchgear suppliers looking for reliable conduit bodies in wire and cable installations.

Specifications

• Manufacturer: Cooper Crouse-Hinds
• Manufacturer Part #: LR100M HDG
• Product Weight: 1.8 lbs
• Application: Commercial / Institutional Buildings / Structures
• Size: 1 inch
• Internal Volume: 12.5 cubic inches
• Unit Quantity: 10
• Weight per 100 units: 157 lbs
• Maximum Number of Conductors: 3 #4 XHHW
• Material: Malleable iron
• Finish: Hot dip galvanized
• UPC: 662277037891

Features

• Hot dip galvanized finish provides superior corrosion resistance by forming a metallurgical bond between zinc and steel
• Compatible with Appleton Form 35 conduit bodies
• Designed to act as pull outlets for conductors, provide access for splices and taps, and facilitate 90-degree bends in conduit runs
• Integral gasket cover for NEMA 4 rating
• Solid neoprene gaskets (convertible to open type)
• Stainless steel cover screws
• Domed sheet steel covers for additional cubic capacity
