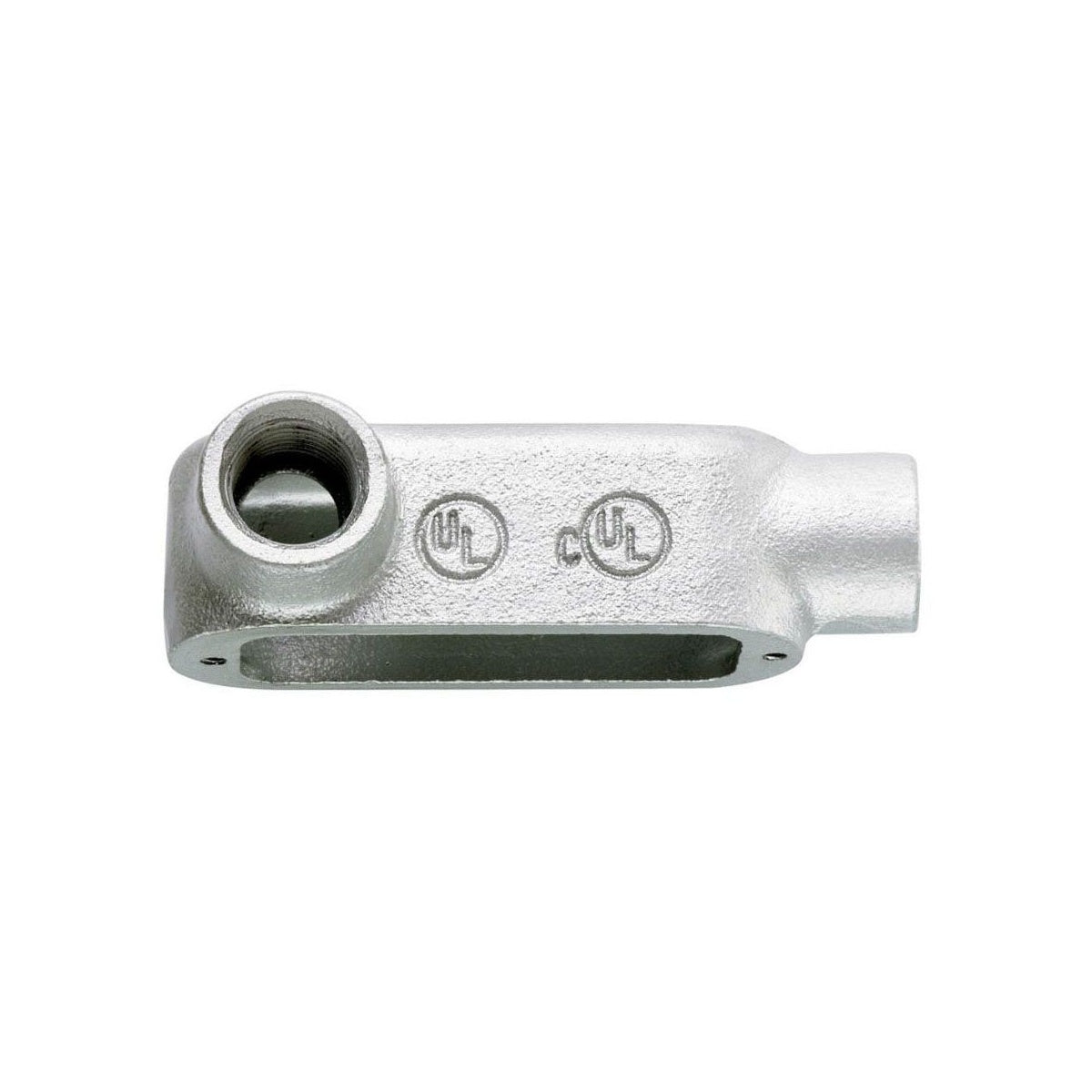

COOPER CRS LL400M 4" Form 5 LL Conduit Body Malleable Iron

The COOPER CRS LL400M is a Form 5 LL type conduit outlet body made from malleable iron, designed for use in commercial and institutional buildings. It serves as an essential component in conduit systems, providing access points for conductor pulling, splicing, tapping, and connecting conduit sections. This conduit body is suitable for applications requiring durable, corrosion-resistant electrical fittings and is compatible with wiring devices and lighting fixtures installation.

Specifications

• Manufacturer: Cooper Crouse-Hinds
• Manufacturer Part #: LL400M
• Type: LL (Form 5)
• Size: 4 inches
• Material: Malleable iron body
• Weight: 27 lbs (per unit)
• Internal Volume: 324.0 cubic inches
• Max Number of Conductors: 3 conductors of 350 MCM XHHW
• UPC: 782274756226
• Application: Commercial / Institutional Buildings / Structures
• Certifications: UL File No. E-15022, UL Standard 514B, cUL/CSA to CSA Standard C22.2 No. 18

Features

• Interchangeable with Appleton Form 35 conduit bodies
• Built-in rollers facilitate wire pulling for sizes 1¬º‚Äù to 4‚Äù C and LB bodies
• Smooth, rounded integral bushings protect wire insulation
• Solid neoprene gaskets convertible to open type by removing perforated center
• Stainless steel cover screws for corrosion resistance
• Domed sheet steel covers provide additional cubic capacity
• Integral gasket cover provides NEMA 4 rating for environmental protection
• Electrogalvanized finish with aluminum acrylic paint for durability

Downloads & Links

• Spec Sheet
