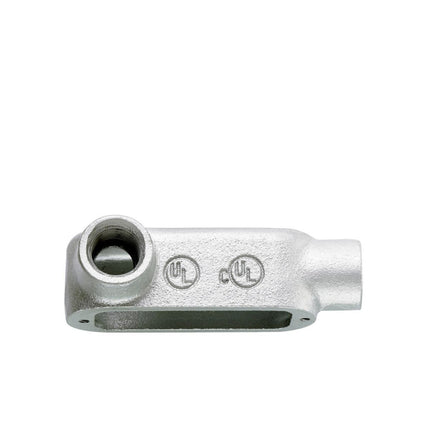

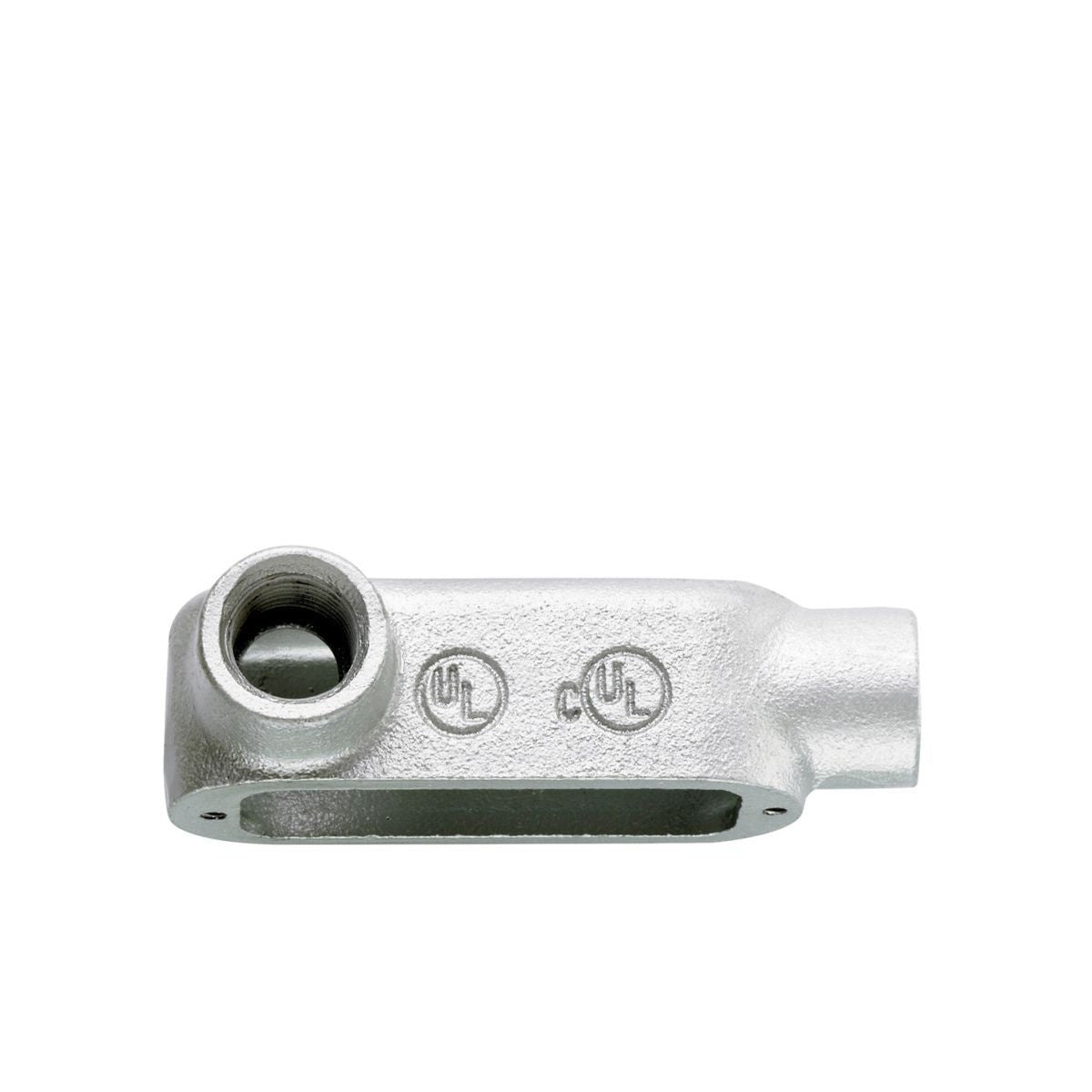

COOPER CRS LL100MHDG 1 FORM 5 LL COND BODY MALLEABLE HDG - Hot Dip Galvanized Conduit Body

The COOPER CRS LL100MHDG is a Form 5 LL conduit body designed for use in commercial and institutional building applications. Manufactured by Cooper Crouse-Hinds, this malleable iron conduit body features a hot dip galvanized finish that provides superior corrosion protection, making it suitable for harsh environmental conditions and infrastructure projects. It is intended for use as a pull outlet, splice access, mounting outlet for lighting fixtures and wiring devices, and for making 90-degree bends in conduit runs. This product supports the needs of electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring durable conduit body solutions.

Specifications

• Manufacturer Part #: LL100M HDG
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Application: Commercial / Institutional Buildings / Structures
• Product Weight: 1.8850 lbs
• Size: 1 inch
• Internal Volume: 12.5 cubic inches
• Max Number of Conductors: 3 conductors #4 XHHW (from Type LL, 1” size data)
• UPC: 662277037907

Features

• Hot dip galvanized finish providing a durable, corrosion-resistant barrier and sacrificial anode protection
• Interchangeable with Appleton Form 35 conduit bodies
• Smooth and rounded integral bushings for wire insulation protection
• Integral gasket cover provides NEMA 4 rating for environmental sealing
• Stainless steel cover screws for corrosion resistance
• Designed for pull outlets, splice access, mounting outlets, conduit connection, and 90-degree bends in conduit runs

Certifications and Compliances

• UL Standard 514B
• UL File No. E-15022
• cUL to CSA Standard C22.2 No. 18
• Conforms to ASTM A123/A123M finish thickness standards
• NEMA FB1 compliant
