COOPER CRS EBBRA604WT603 60A 3W4P ARKTE INTRLCK RCPT CH 60A BRKR
SKU: #407987
Part: #EBBRA604 WT60 3
UPC: 782274417974
COOPER CRS EBBRA604WT603 60A 3W4P ARKTE INTRLCK RCPT CH 60A BRKR
SKU: #407987
Part: #EBBRA604 WT60 3
UPC: 782274417974
Description

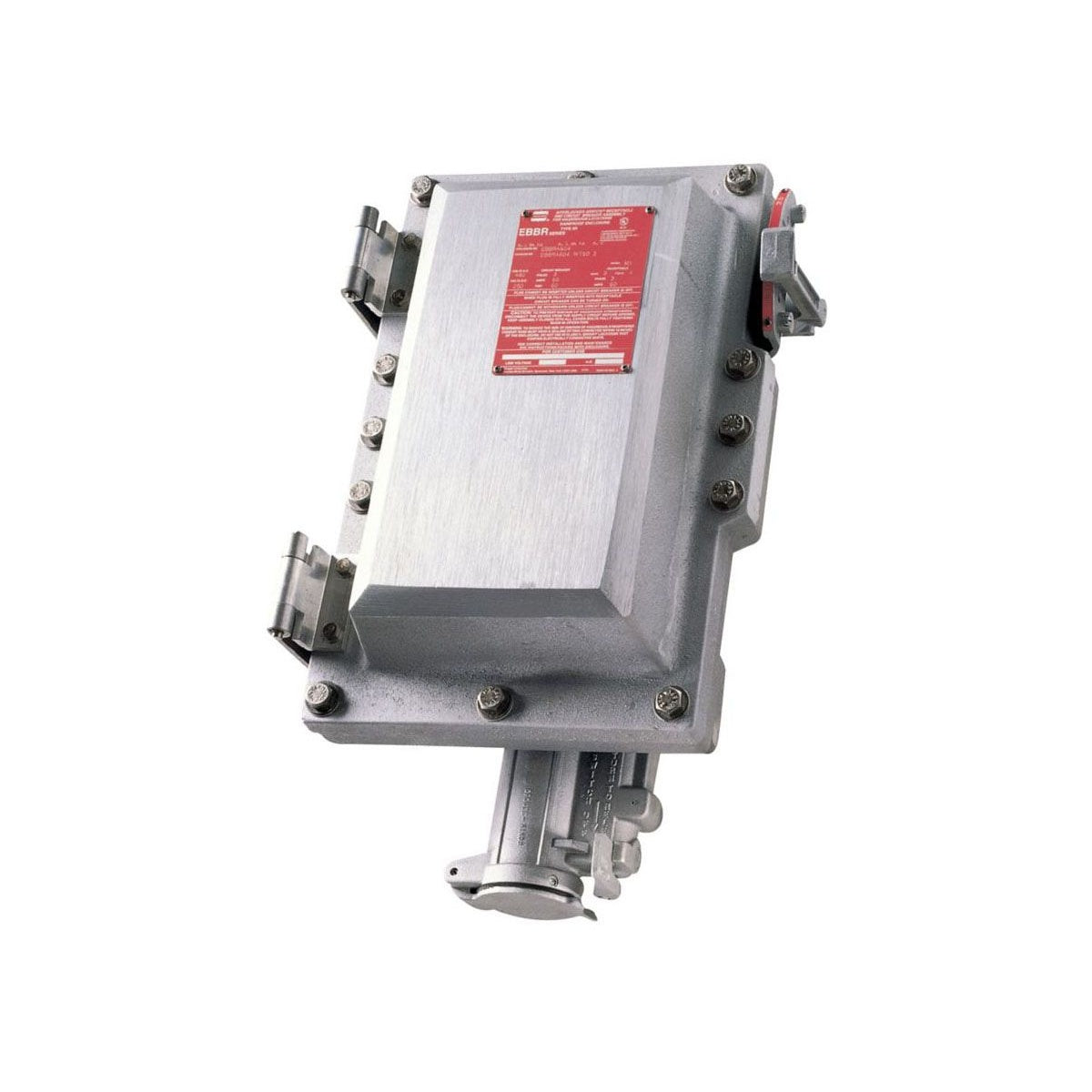

COOPER CRS EBBRA604WT603 60A 3W4P ARKTE INTRLCK RCPT CH 60A BRKR - Explosionproof Interlocked Receptacle
The COOPER CRS EBBRA604WT603 is a 60 amp, 3-wire, 4-pole explosionproof interlocked receptacle with circuit breaker designed for industrial facilities and factories, specifically for power distribution and control applications. It provides safe and reliable service outlets for portable equipment in hazardous locations, including areas with flammable vapors, gases, or combustible dust. This product is suitable for use in damp, wet, or corrosive environments without requiring protective shelter. Ideal for electrical distributors and switchgear suppliers, it supports compliance with NEC hazardous location standards and offers protection against short circuits and overloads.
Specifications
- Manufacturer: Cooper Crouse-Hinds
- Manufacturer Part #: EBBRA604 WT60 3
- Application: Industrial Facilities & Factories - Facility: Power Distribution and Control
- Product Weight: 110 lbs
- Electrical Ratings: 60 Amperes, 3-wire, 4-pole configuration
- Certifications: NEC Class I, Divisions 1 & 2, Groups B, C, D; Class II, Divisions 1 & 2, Groups FA, G; Class III
- NEMA Ratings: 3, 3R, 7BCD, 9FG, 12
- UL Standard: UL1203
- UPC: 782274417974
Features
- Rugged, corrosion-resistant, cast copper-free aluminum construction
- Mechanical interlock mechanism for dead front construction
- Receptacle mechanically interlocked with circuit breaker to provide disconnect means, short circuit protection, and thermal time delay overload protection
- Spring door receptacle mechanically interlocked with the circuit breaker operating mechanism for safe operation
- Plug and receptacle contacts cannot be made or broken under load; circuit breaker cannot close until plug is fully inserted
- Operating handles can be padlocked in “ON” or “OFF” positions; breakers are trip-free and will open under short circuit or overload even if handle is locked
- Component operating handles located through the right side wall for visual confirmation of correct assembly and operation
- Semi-clamshell enclosure design with external machined flat joint flame path for easy access to interior components
- Minimum enclosure-to-enclosure spacing with little interference when cover is open
- Copper-free aluminum hinges allow cover to swing fully open
- Stainless steel quick release, captive hex head cover bolts with springs indicating full retraction
- Versatile internal operating mechanisms allow field adjustment to accommodate popular manufacturers’ breakers
- Neoprene cover gasket permanently attached to seal out moisture
- Top drilled and tapped entrances for power conduit and breather/drain, with breather and drain entrances plugged
- Tap-on mounting feet for installation
- Grounding provided via extra grounding pole and direct connection between receptacle and metallic plug
