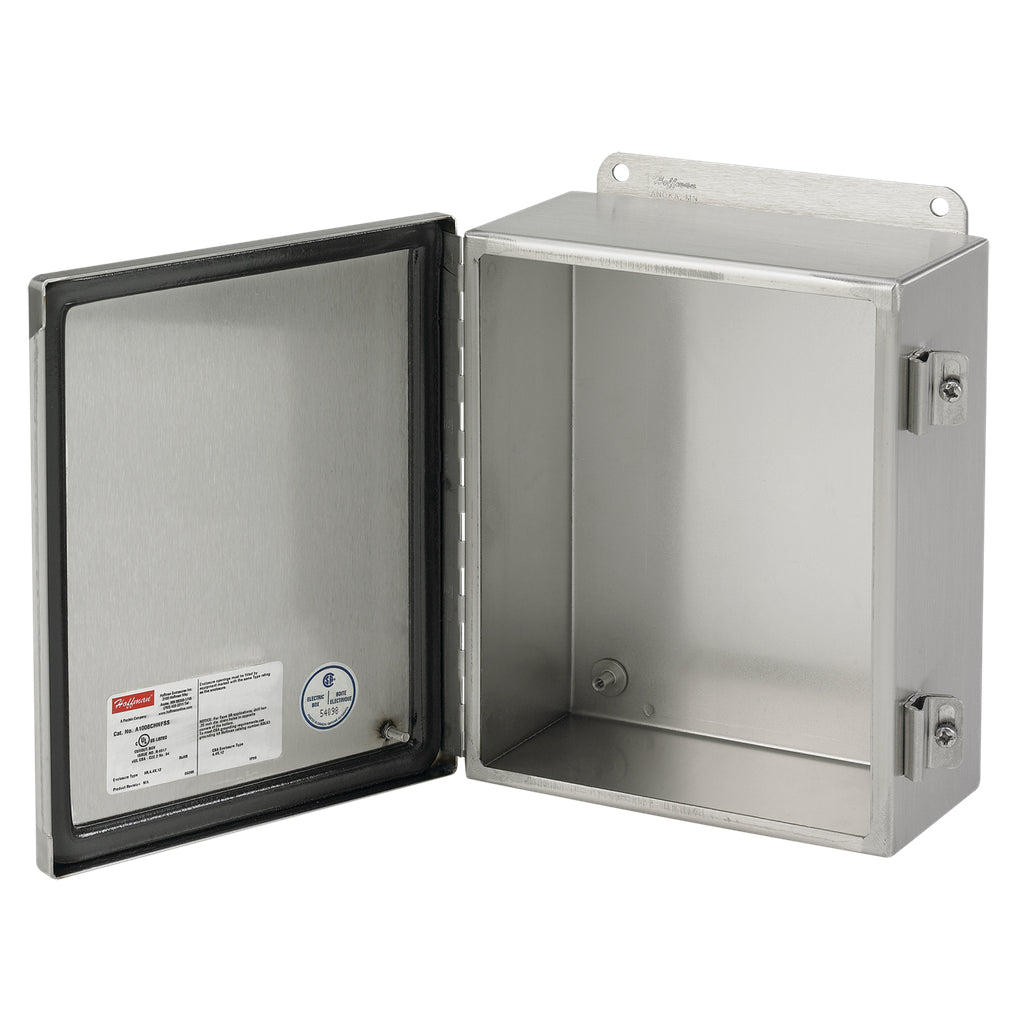

Continuous Hinge with Clamps Junction Box Type 4X, 6x6x4, Brushed Stainless Steel

This Continuous Hinge with Clamps Junction Box, model A606CHNFSS by nVent Hoffman, is designed for indoor and outdoor electrical protection applications. It provides robust enclosure solutions for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers requiring a durable, corrosion-resistant junction box. The Type 4X rating ensures protection against corrosion and harsh environmental conditions.

Specifications

• Material: Stainless Steel 304
• Finish: Brushed
• Dimensions (L x W x H): 6.00 x 6.40 x 4.30 inches
• Depth: 102 millimeters
• Body Thickness: 1.59 millimeters
• Weight: 4.1 lbs
• Country of Origin: Mexico
• Manufacturer: nVent Hoffman
• Manufacturer Part #: A606CHNFSS
• Order Minimum: 1 unit
• Certifications: UL 50, 50E; UL508A Listed; cUL CSA C22.2 No. 94; NEMA Type 3R, 4, 4X, 12; IEC 60529 IP66

Features

• Continuous hinge with stainless steel clamp covers for secure sealing
• Type 4X enclosure providing corrosion resistance for indoor/outdoor use
• Seamless foam gasket for reliable environmental sealing
• Stainless steel screws and fasteners enhance durability and corrosion resistance
• Removable continuous hinge pin allows easy door removal
• Provision for bonding between door and enclosure body
• Includes permanent nuts for optional panel mounting and terminal block kits
• Smooth brushed finish on cover and body sides
