Continuous Hinge Enclosure with Clamps Type 4, 16x14x6, Gray, Mild Steel

Name: Continuous Hinge Enclosure with Clamps Type 4, 16x14x6, Gray, Mild Steel
Brand: nVent Hoffman
SKU: 132678
Availability: OutOfStock

SKU: #132678

Part: #A1614CHNF

UPC: 783510557607

nVent Hoffman

Continuous Hinge Enclosure with Clamps Type 4, 16x14x6, Gray, Mild Steel

SKU: #132678

Part: #A1614CHNF

UPC: 783510557607

Product form

Out of stock

Free pickup available

Next day delivery

Description

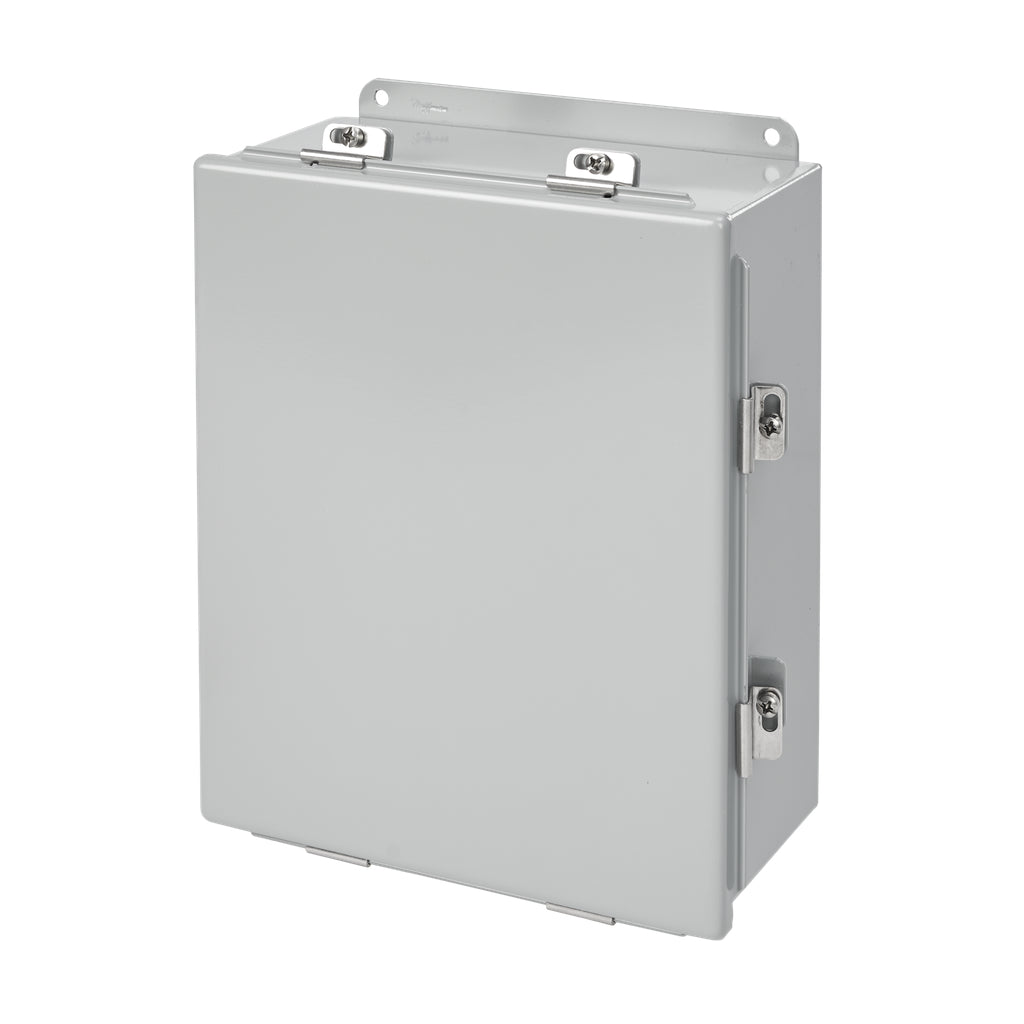

Continuous Hinge Enclosure with Clamps Type 4, 16x14x6, Gray, Mild Steel Junction Box

This Type 4 continuous hinge enclosure is designed to house and protect electrical connections, suitable for industrial applications requiring robust protection. Manufactured by nVent Hoffman, it serves as a reliable junction box for electrical distributors and switchgear suppliers, providing secure and accessible protection for wire and cable installations. The enclosure is ideal for environments demanding NEMA Type 4 rated protection against water and dust ingress.

Specifications

Material: Steel
Finish: Powder Coat
Color: Gray (ANSI 61)
Dimensions (L x W x H): 17.90 inch x 15.40 inch x 7.00 inch
Depth: 152 millimeters
Weight: 20.3 lbs
Manufacturer: nVent Hoffman
Manufacturer Part #: A1614CHNF
Country of Origin: Mexico
Enclosure Rating: NEMA Type 4
Certifications: UL 50, UL 50E Listed (File E27567), cUL to CSA C22.2 No.14, 94.1, 94.2
Ingress Protection: IP66 (per EU Declaration of Conformity)

Features

Continuous hinge design for easy access and secure enclosure operation
Equipped with clamps for secure mounting and component retention
Powder-coated finish enhances corrosion resistance and durability
Complies with UL, cUL, and NEMA standards for electrical enclosures
Suitable for indoor or outdoor use in industrial control and electrical distribution applications
