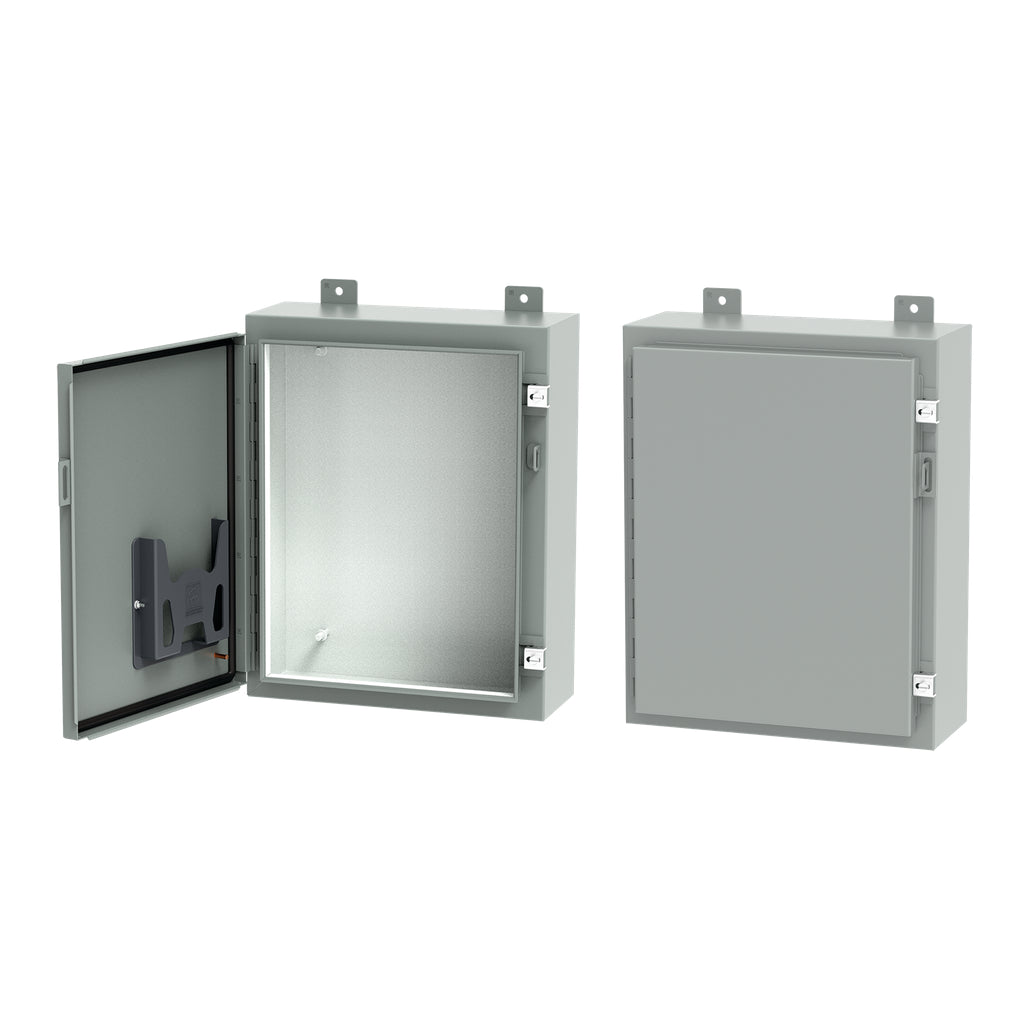

Continuous Hinge Enclosure with Clamps LP Type 12, 24x24x6, Gray, Mild Steel - Electrical Enclosure

This continuous hinge enclosure with clamps is designed for industrial electrical applications requiring secure access and protection. It is a Type 12 enclosure suitable for wire and cable management, providing protection against dust, dirt, and dripping non-corrosive liquids. Ideal for electrical distributors, lighting solutions providers, and switchgear suppliers, this enclosure ensures safety and durability in demanding environments.

Specifications

• Material: Steel
• Finish: Powder Coat, ANSI 61 gray outside and inside
• Dimensions (L x W x H): 28.70 in x 25.30 in x 8.00 in
• Depth: 152 millimeters
• Type Rating: NEMA Type 12, 13; UL 508A Listed; cUL Listed per CSA C22.2 No. 94; IEC 60529 IP65
• Body Gauge: 16 gauge steel
• Number of Clamps: 2
• Data Pocket: Small high-impact thermoplastic
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: nVent Hoffman
• Manufacturer Part Number: A242406LP
• Weight: 41 lbs

Features

• Continuous heavy-gauge hinge pin for durable door operation
• Screw-down door clamps with padlocking hasp and staple for enhanced security
• Seams continuously welded and ground smooth for structural integrity
• External welded-on mounting brackets for easy installation
• Formed external return flanges around all sides of enclosure opening to improve sealing
• Seamless foam-in-place gasket providing a dust and liquid-tight seal
• Collar studs for mounting optional panels
• Bonding provision on door to ensure electrical continuity
