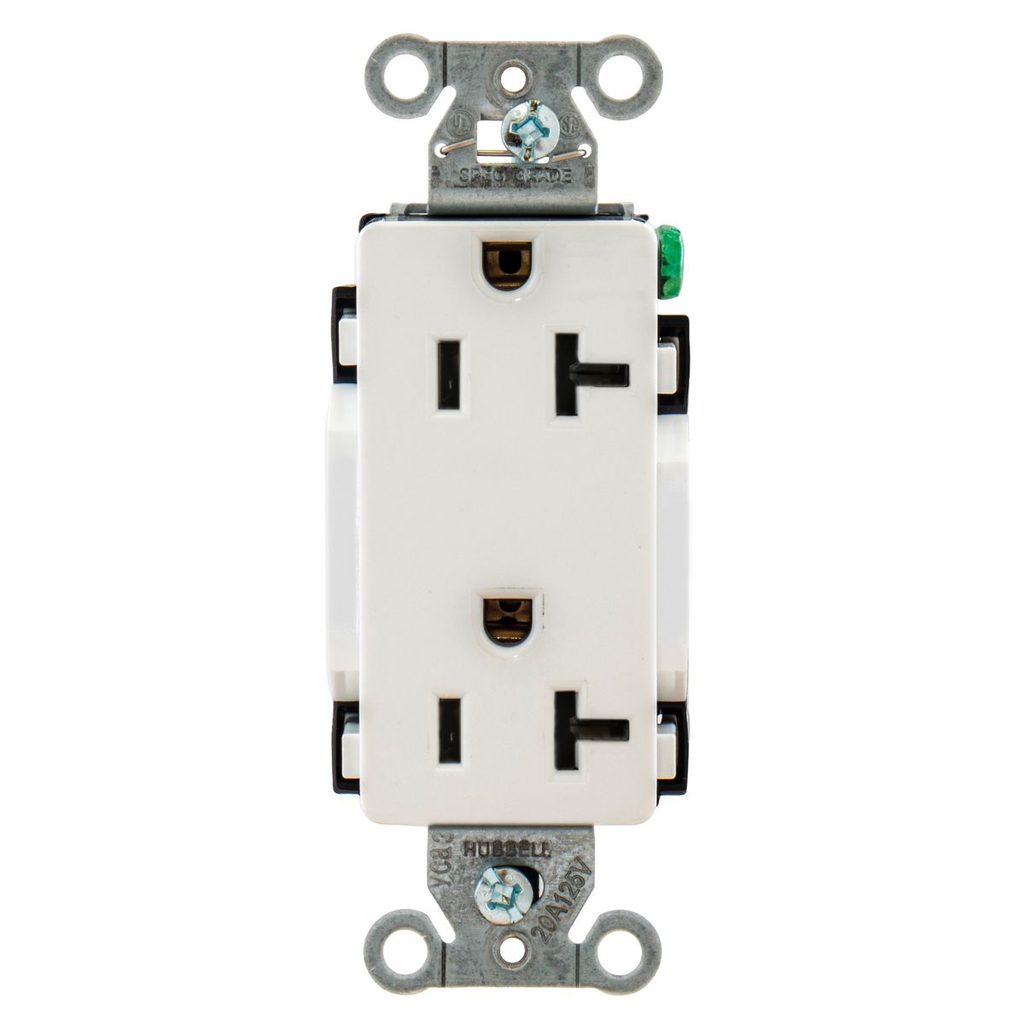

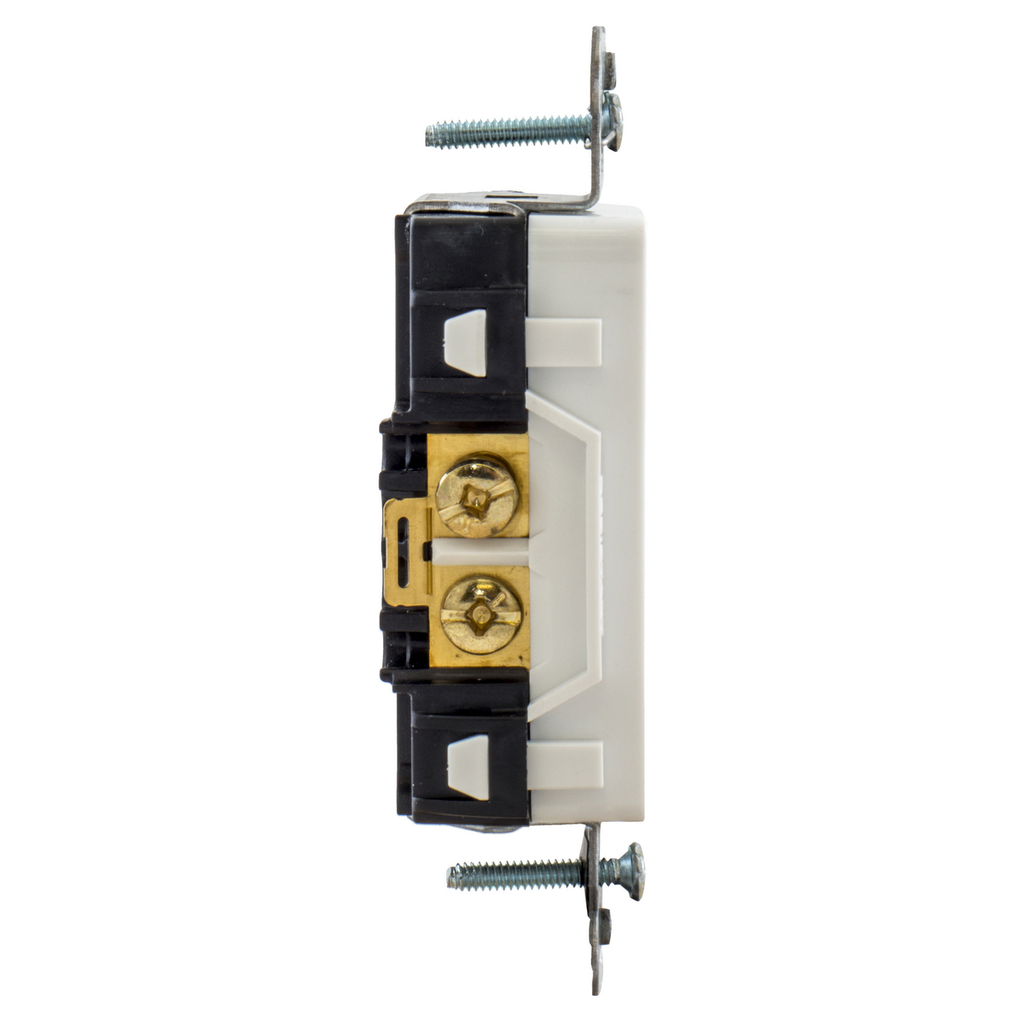

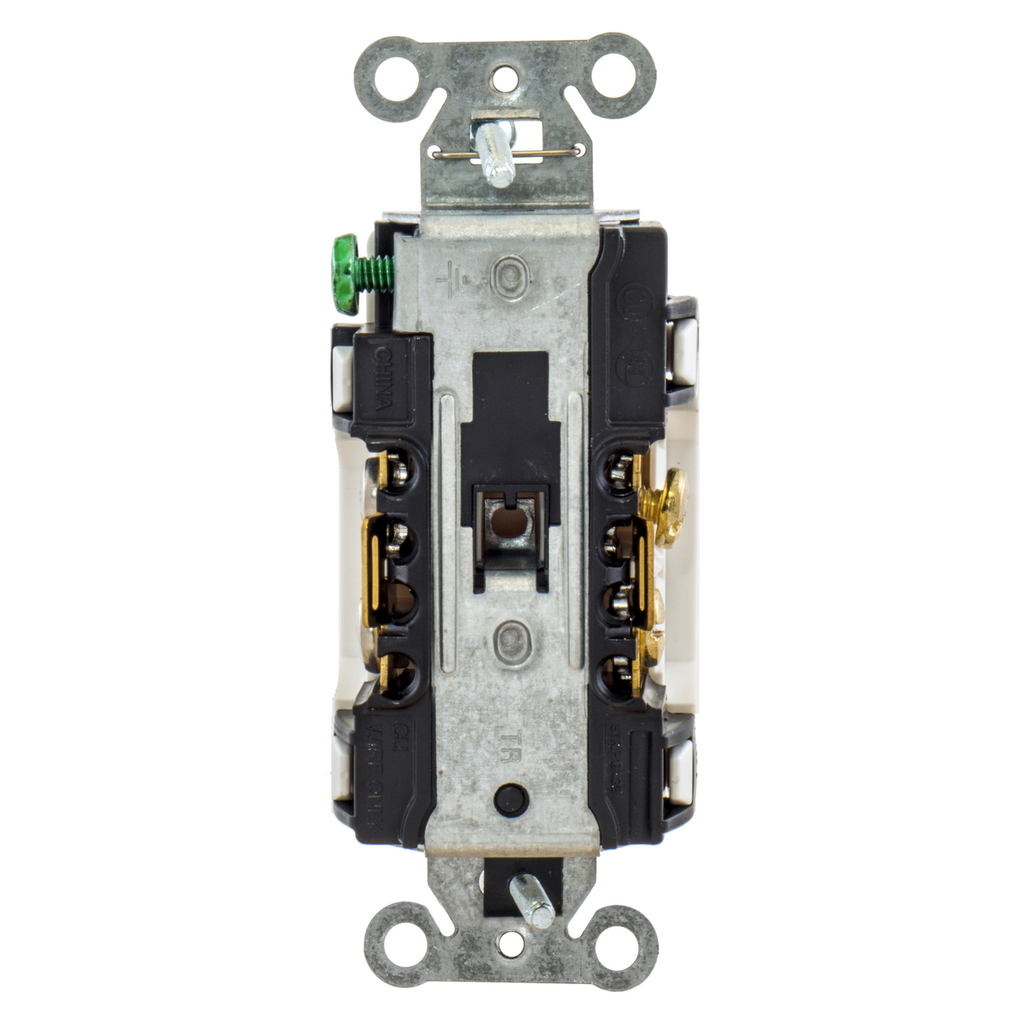

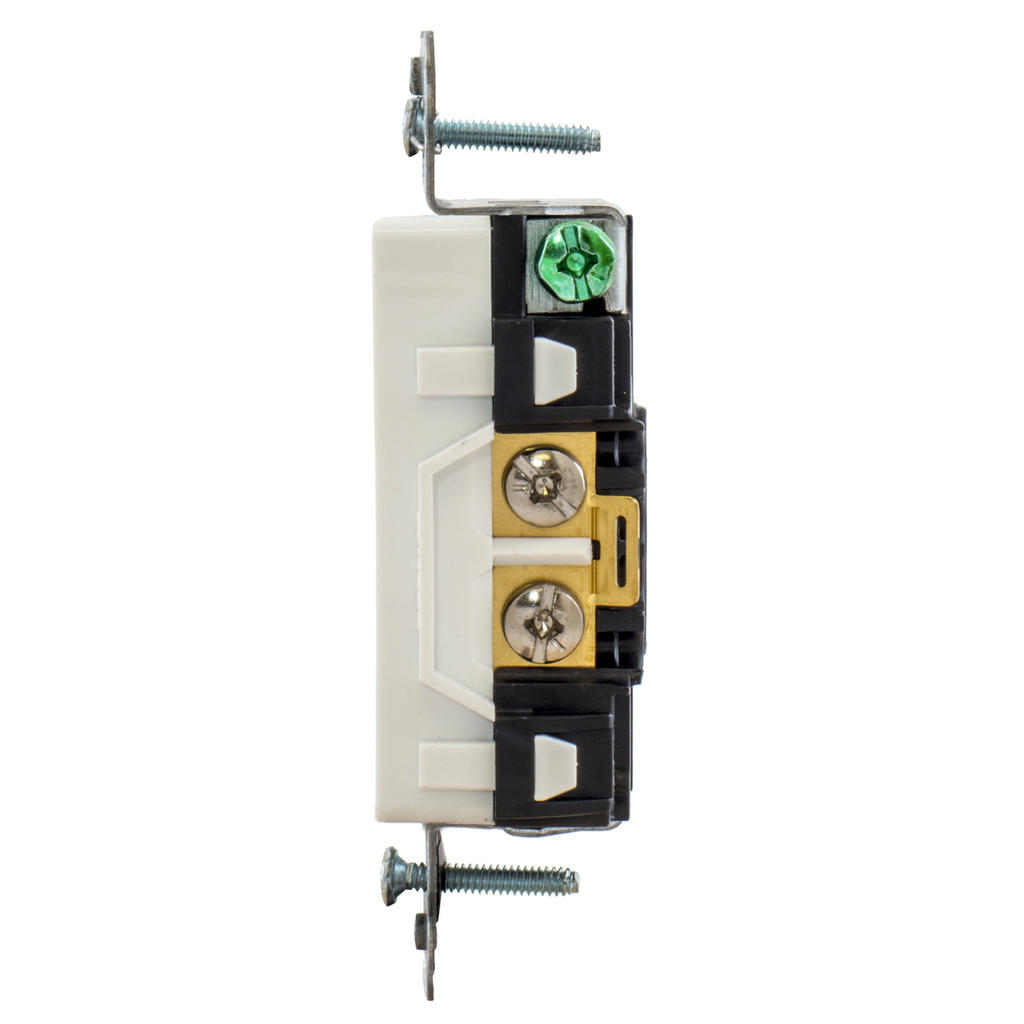

Construction/Commercial Receptacles DR20WHI - Commercial Specification Grade Electrical Receptacle

The Construction/Commercial Receptacles DR20WHI is a commercial specification grade, straight blade duplex receptacle designed for electrical distributors and switchgear suppliers requiring reliable lighting and power solutions. It is suitable for commercial and industrial applications where durable and code-compliant wire and cable connections are essential. This receptacle supports 20 amperes at 125 volts, featuring a 2-pole, 3-wire grounding design with a NEMA 5-20R rating, ensuring compatibility with standard commercial electrical systems.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: DR20WHI
• Application: Commercial Specification Grade
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 Volts
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Color: White
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dimensions (L x W x H): 3.28 in x 1.06 in x 1.29 in
• Product Weight: 0.2000 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means

Features

• Style Line® decorator duplex design with smooth nylon face for durability
• Back and side wired for flexible installation options
• Self-grounding, suitable for commercial and industrial wiring applications
• Meets UL and CSA certification standards for safety and reliability
• Compatible with standard 20A, 125V commercial electrical systems
