Construction/Commercial Receptacles DR20ITR - Tamper-Resistant Electrical Distributor Solution

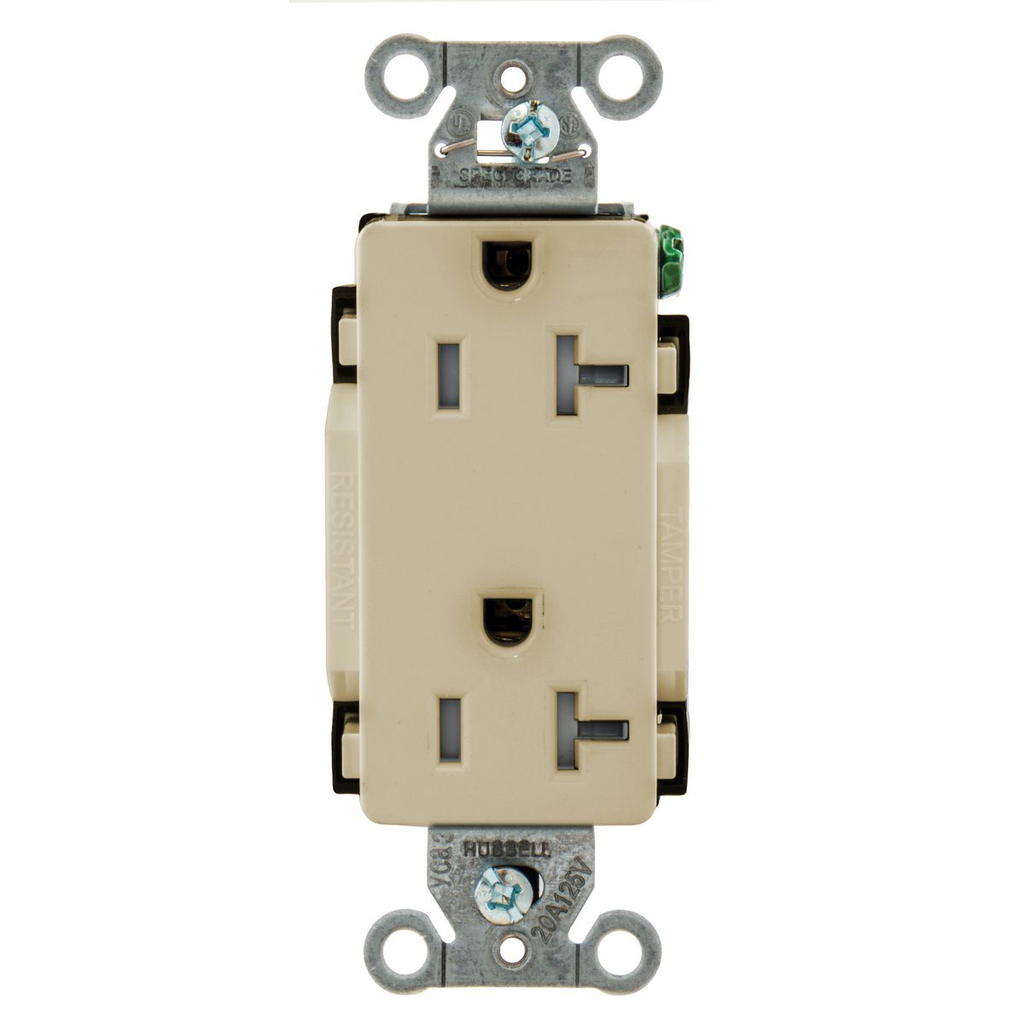

The Construction/Commercial Receptacles DR20ITR by Hubbell Wiring Device-Kellems is a tamper-resistant, decorator-style duplex receptacle designed for commercial specification grade applications. It supports 20 amperes at 125 volts with a 2-pole, 3-wire grounding configuration, suitable for indoor dry environments unless additional protection is provided. This receptacle features Hubbell’s patented Cam Action Technology, ensuring smooth plug insertion and enhanced safety compliance with the 2017 National Electrical Code® tamper-resistant requirements. Ideal for electrical distributors and lighting solutions providers, it offers reliable performance in commercial, industrial, and construction wiring applications.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: DR20ITR
• Amperage: 20 amperes
• Voltage Rating: 125V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Nylon
• Color: Ivory
• Mounting: Screw Mount

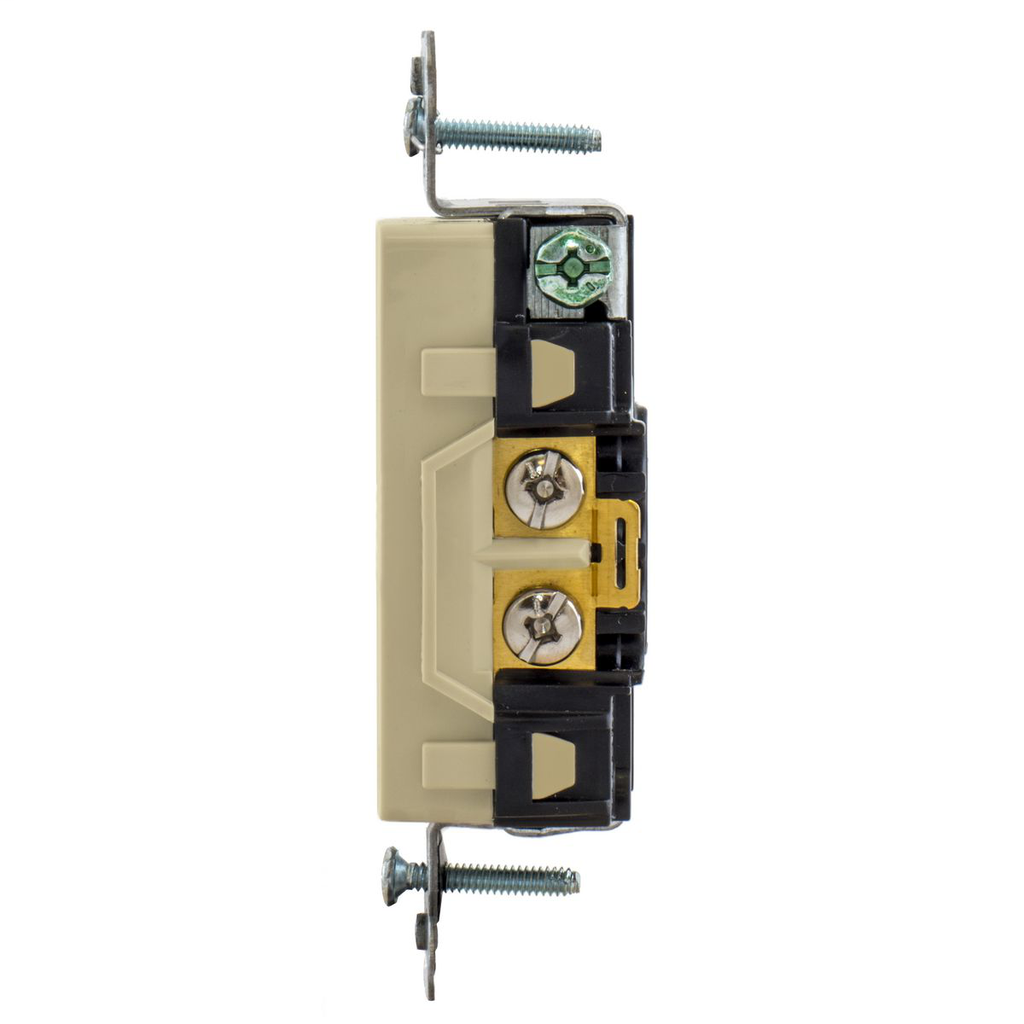

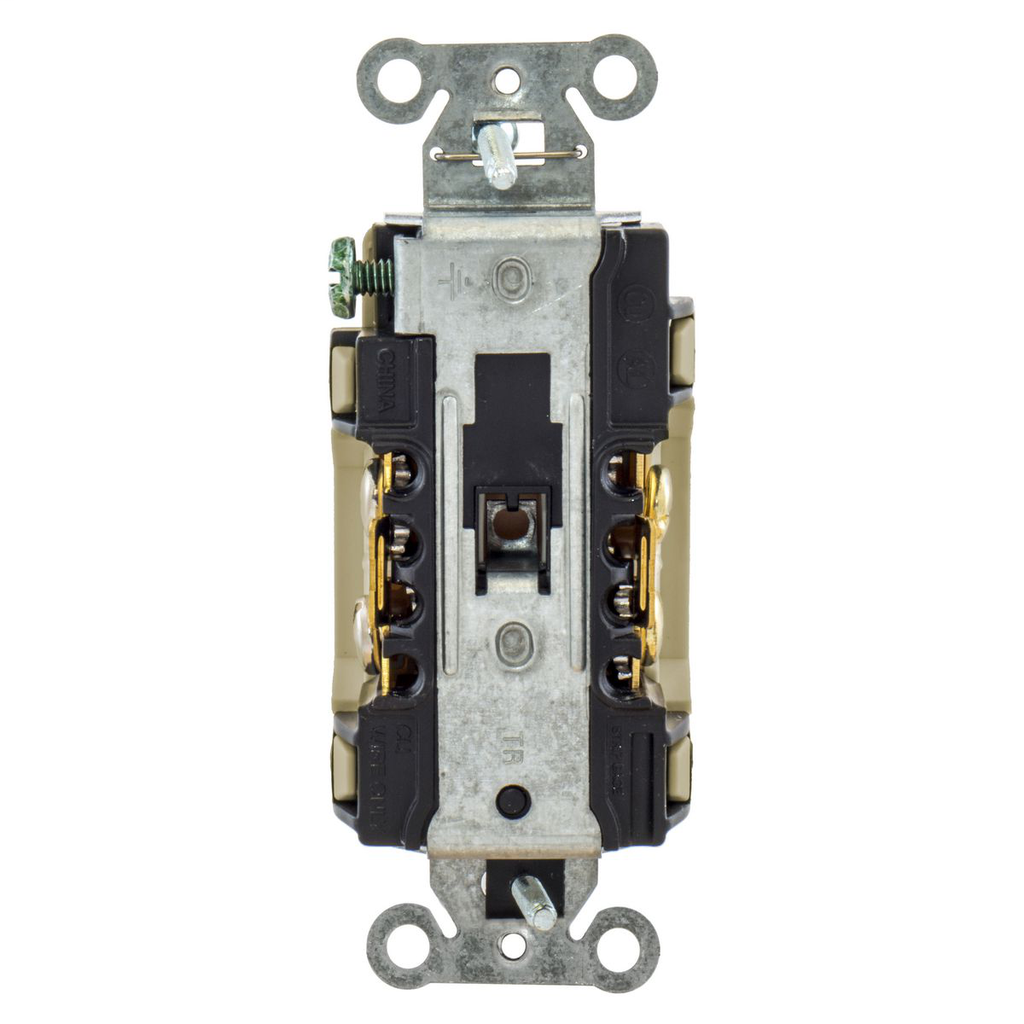

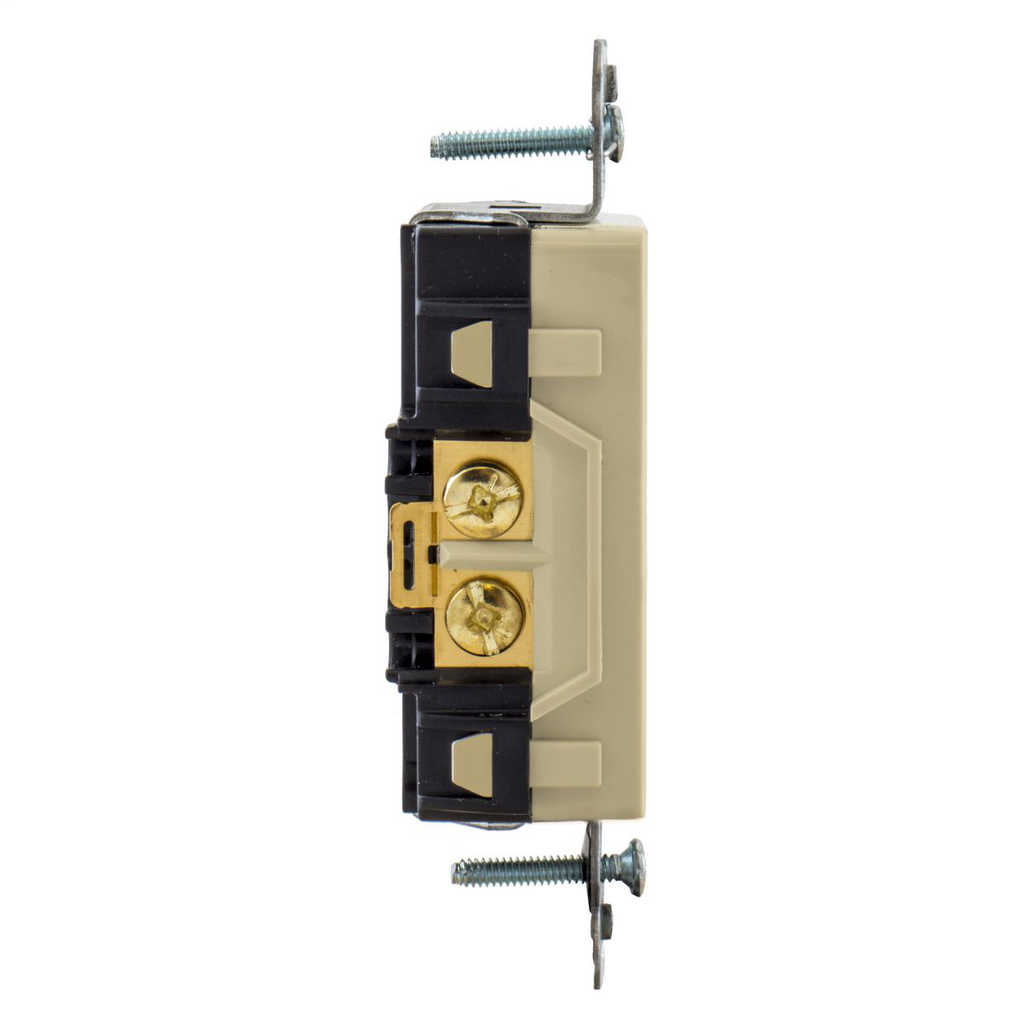

• Connection: Back and Side Wired
• Dimensions: 3.28 in (Length) x 1.14 in (Width) x 1.29 in (Height)
• Product Weight: 0.2200 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Number of Phases: 1

Features

• Patented Cam Action Mechanism for smoother, more reliable plug insertion and minimized friction
• Tamper-Resistant design compliant with 2017 National Electrical Code® Section 406.12
• Commercial Specification Grade quality for durability and long-term performance
• Back and side wiring options for flexible installation
• High dielectric strength ensuring safety under electrical stress
• Constructed with durable nylon for mechanical and electrical reliability
