Construction/Commercial Receptacles DR15BLK - Commercial Specification Grade Receptacle

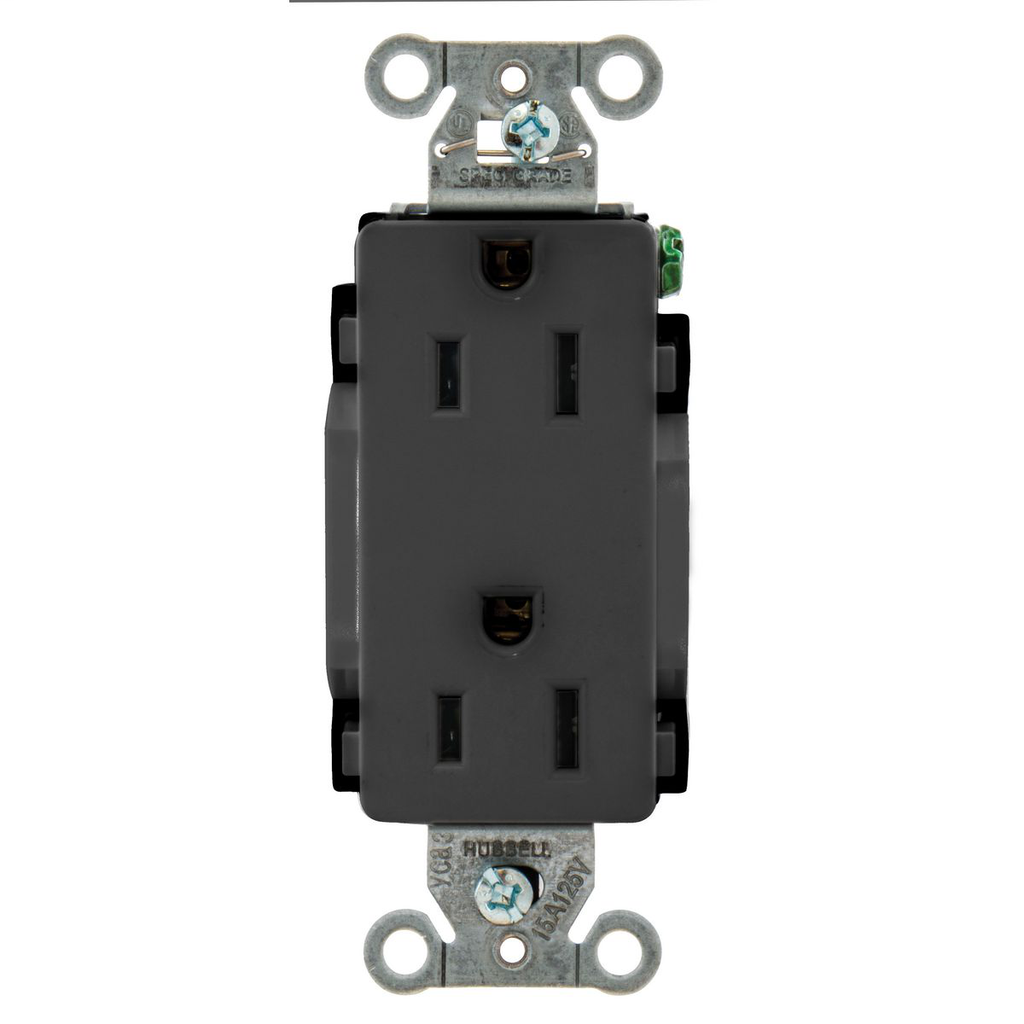

The Construction/Commercial Receptacles DR15BLK by Hubbell Wiring Device-Kellems is a commercial specification grade, 15 amp, 125 volt duplex receptacle designed for reliable electrical distribution in commercial and industrial applications. This black, decorator-style receptacle is suitable for indoor dry environments and is ideal for electrical distributors and lighting solutions requiring durable wire and cable connections. Featuring a smooth nylon face and back and side wiring options, it supports secure screw mounting and complies with NEMA 5-15R standards.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: DR15BLK
• Application: Commercial Specification Grade
• Amperage: 15 amperes
• Voltage: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-15R
• Material: Nylon
• Color: Black
• Mounting: Screw Mount

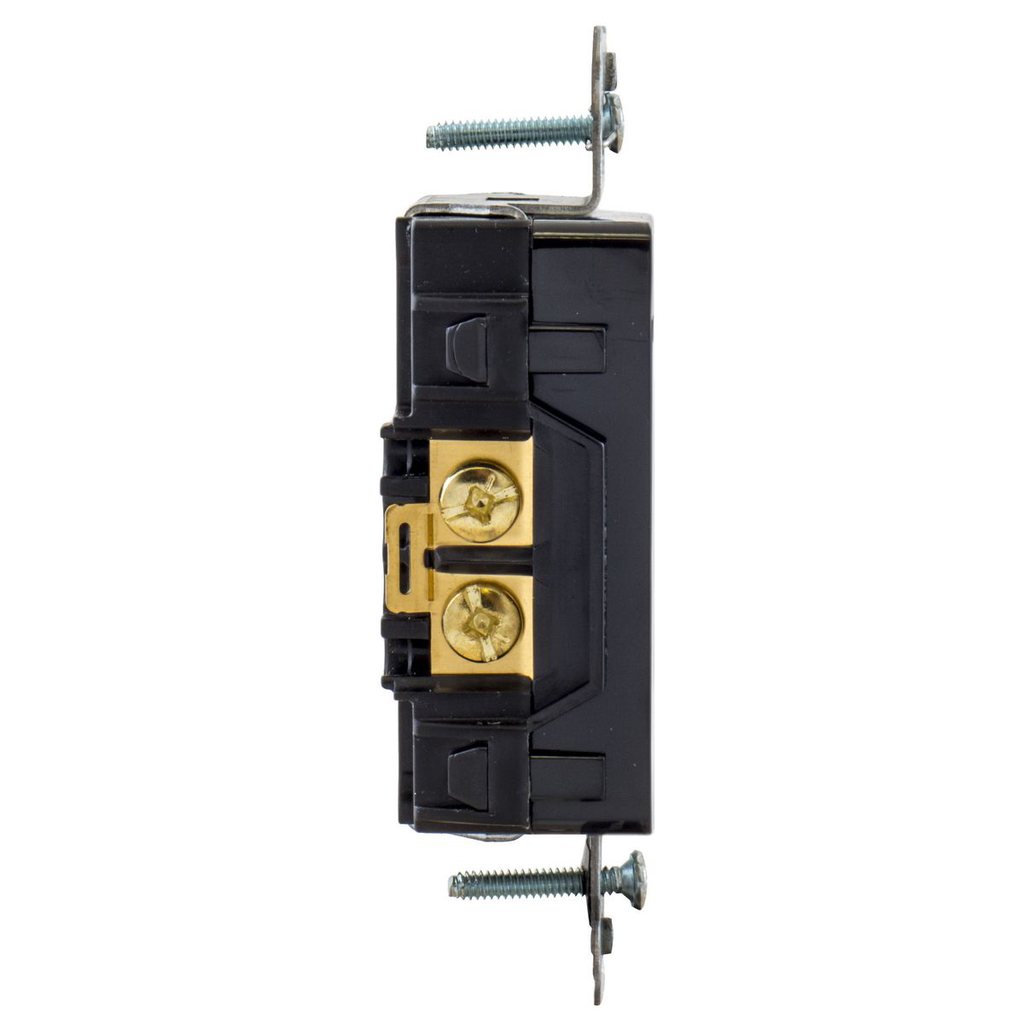

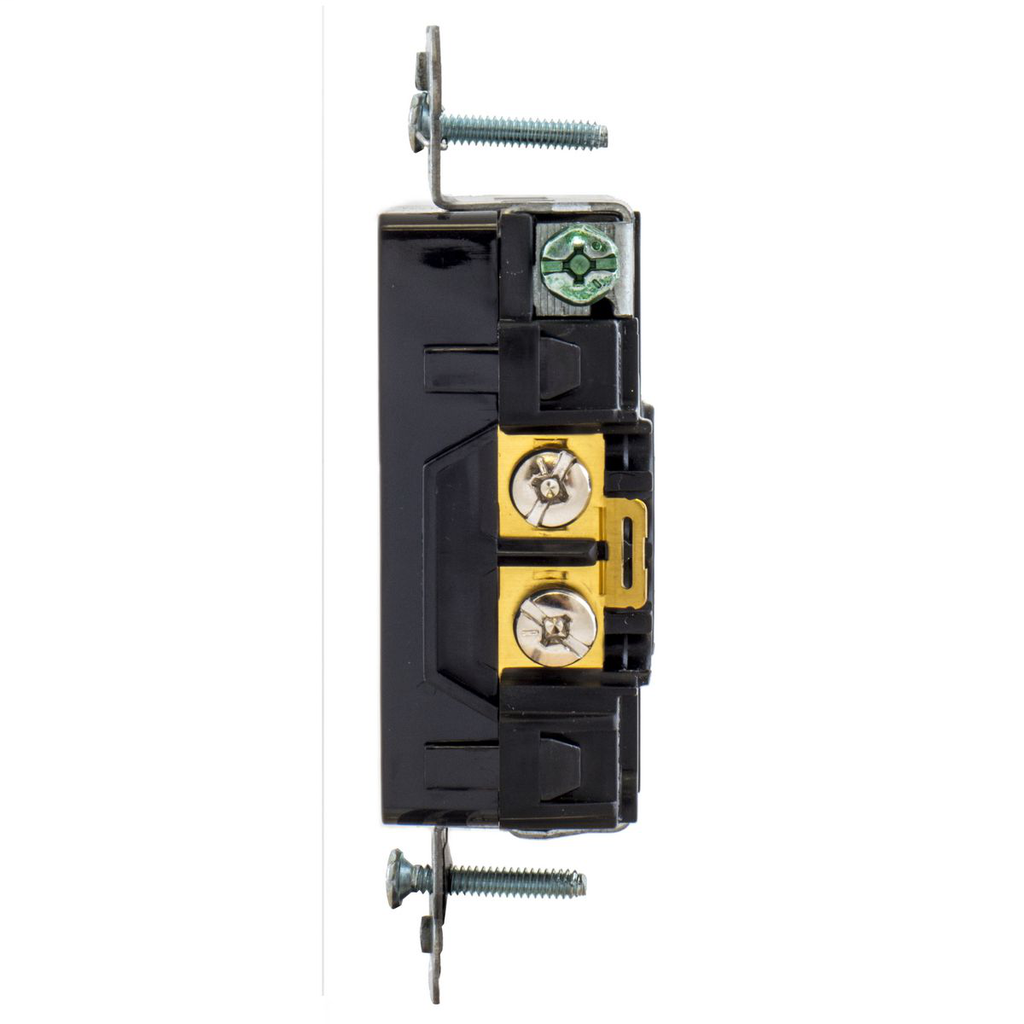

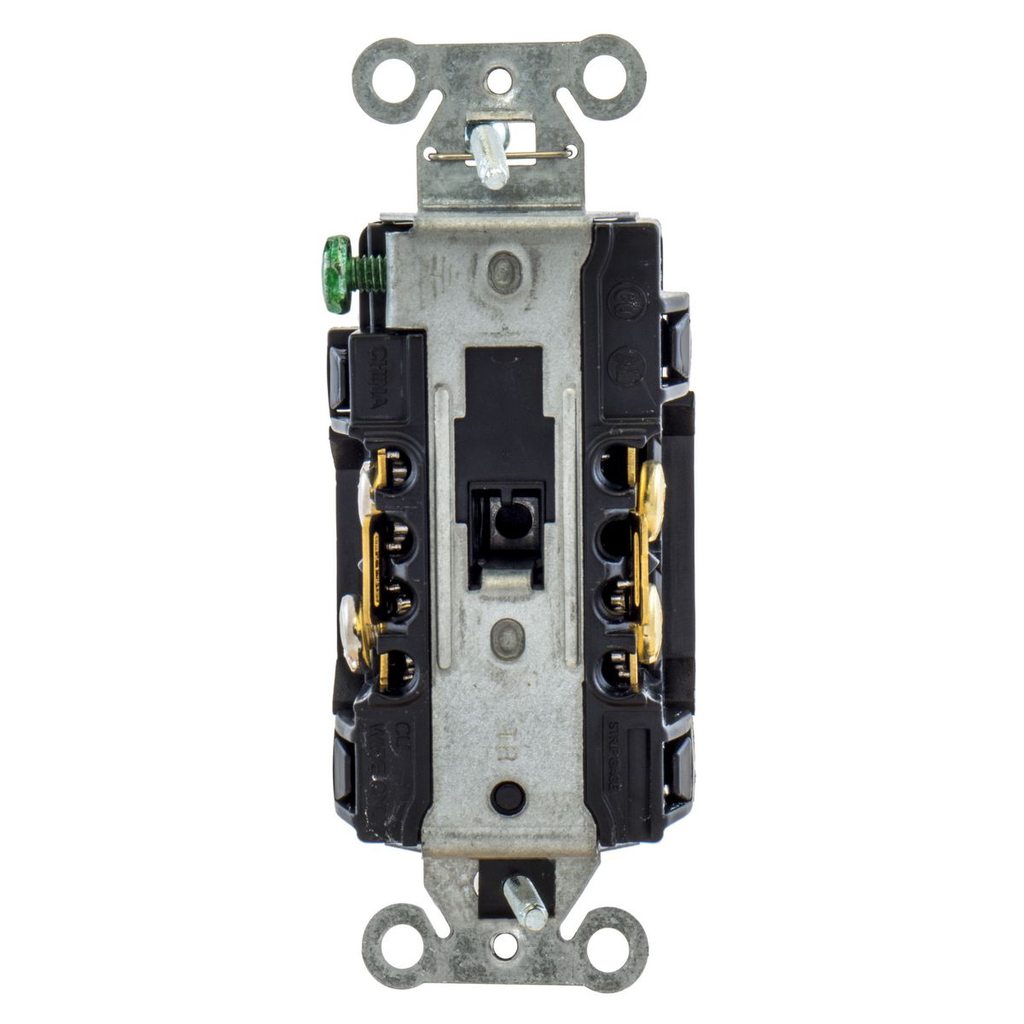

• Connection: Back and Side Wired
• Dimensions (HxWxL): 3.28 in x 1.06 in x 1.29 in
• Product Weight: 0.2 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Number of Phases: 1

Features

• Commercial specification grade for demanding electrical distributor and switchgear supplier applications
• Smooth nylon face resists breaking, chipping, and cracking
• Back and side wiring options for flexible installation
• Durable screw mount design for secure attachment
• Complies with NEMA 5-15R standards ensuring compatibility with standard receptacles
• Withstands high dielectric strength for safety and reliability
• Suitable for indoor dry environments typical in commercial settings

Downloads & Links

• Wiring A-26 Catalog page
• Wiring AA-43 Catalog Page
• Hubbell Marine Full Line Catalog
• WDK_DR15_DRAWING_PDF
• Spec Sheet
• Connexion 2.0 Zone Distribution System
• WIRING_PD1579_INSTALLINST
• DR15BLK AutoCAD Drawing
