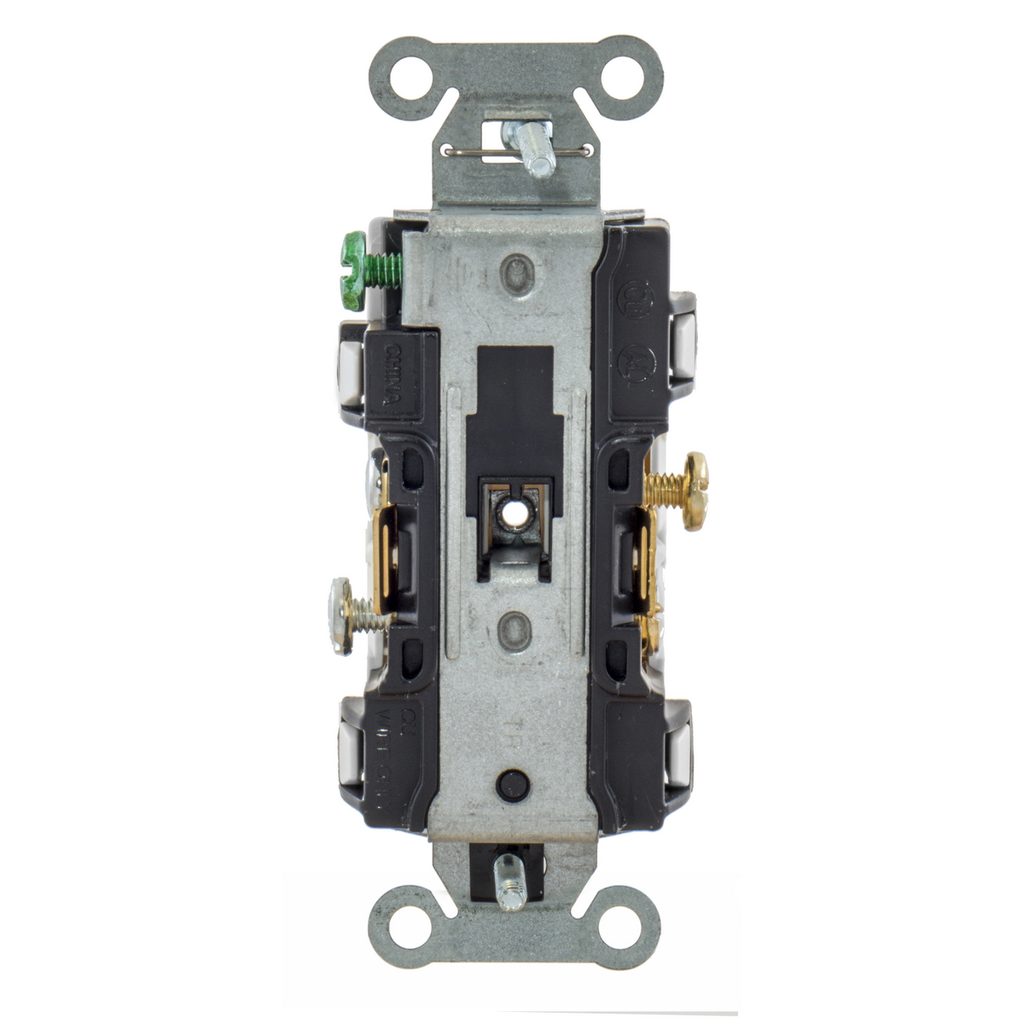

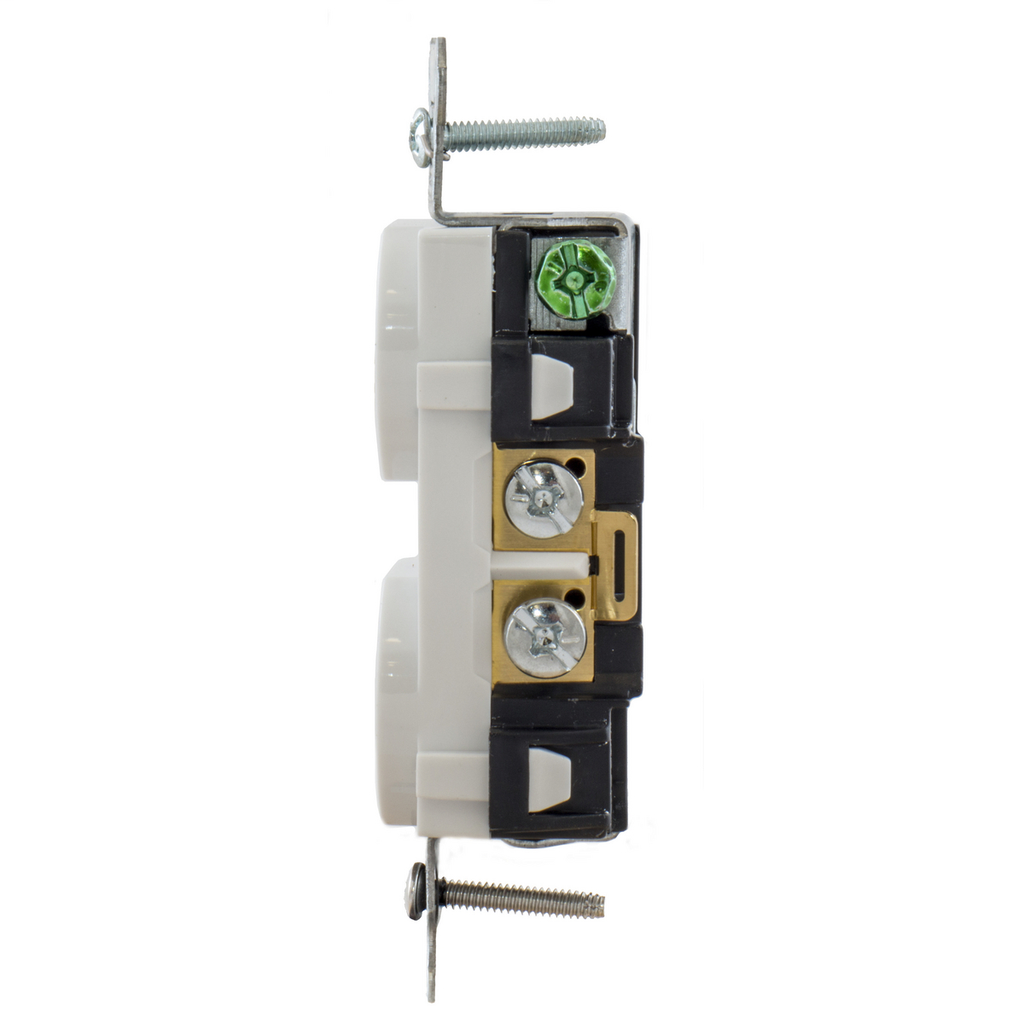

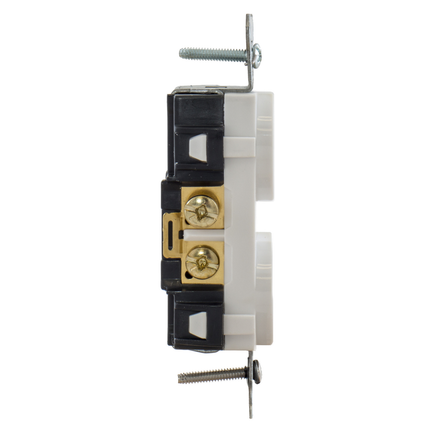

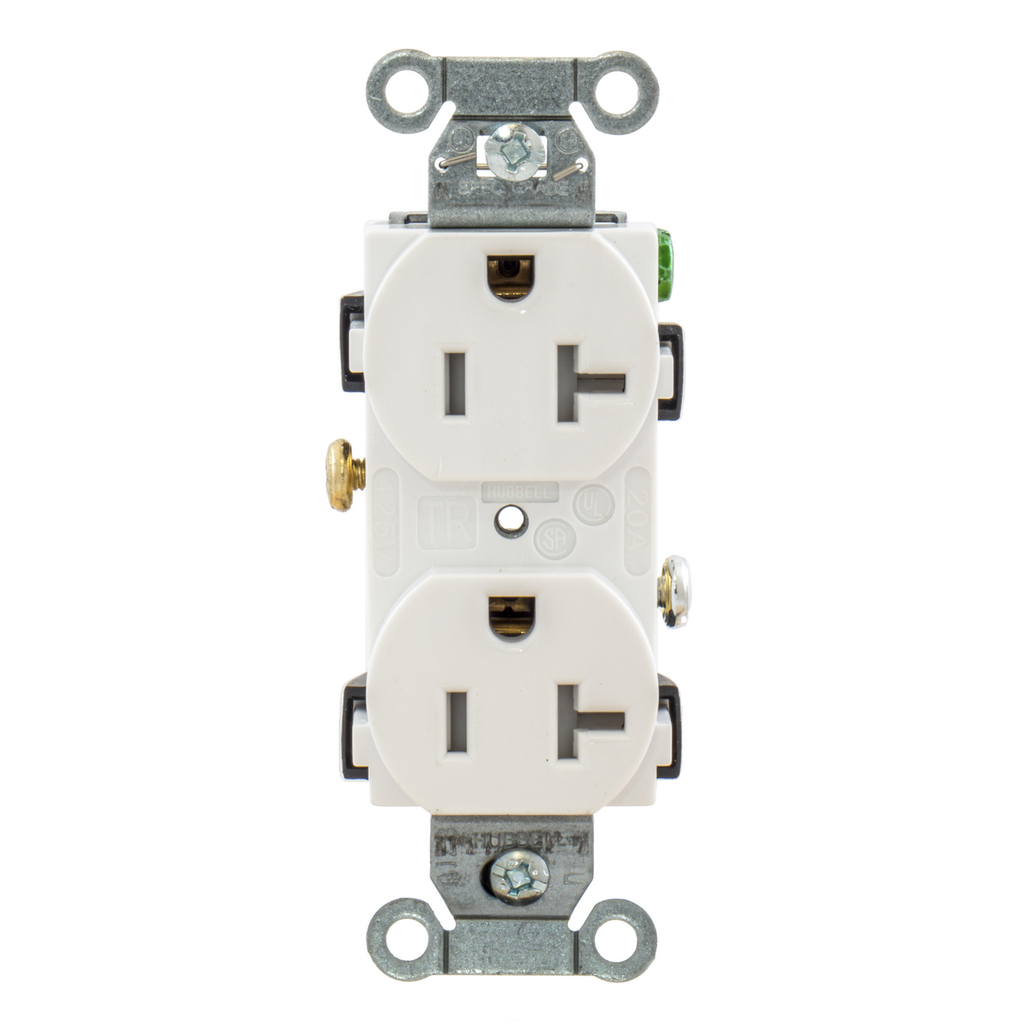

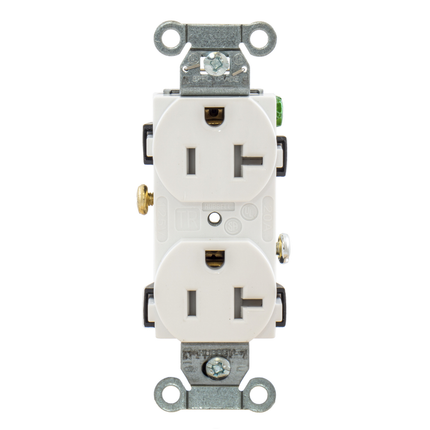

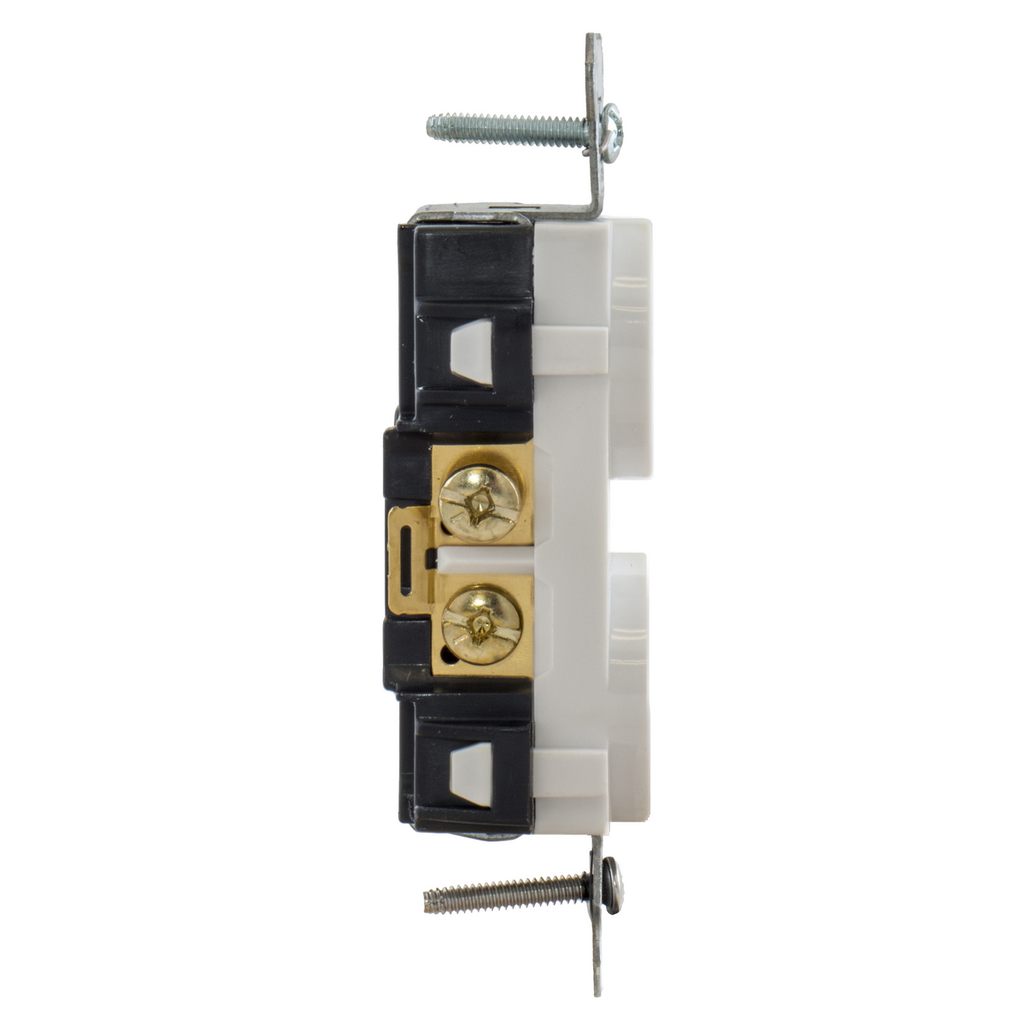

Construction/Commercial Receptacles CR20WHITR - Commercial Specification Grade Duplex Receptacle

This Hubbell Wiring Device-Kellems Construction/Commercial Receptacle CR20WHITR is a commercial specification grade, tamper-resistant duplex receptacle designed for 20 amp, 125 volt applications. It features a 2-pole, 3-wire grounding configuration suitable for indoor dry environments. Ideal for electrical distributors and lighting solutions providers, this device supports wire and cable connections with back and side wiring options and is compatible with standard switchgear installations.

Specifications

• Application: Commercial Specification Grade
• Amperage Rating: 20 A
• Voltage: 125 V
• Poles: 2-Pole
• Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Nylon (Face and Base)
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dimensions (H x W x L): 3.28 in x 1.14 in x 1.32 in
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.2000 lbs

Features

• Tamper-resistant shutter compliant with national electrical code requirements
• Smooth face design
• Triple wipe contacts for reliable electrical connection
• Automatic self-grounding stainless steel staple
• UL Listed to UL498 and CSA Certified
• NEMA WD-6 Compliant
• Terminal accommodation for #12 to #10 AWG copper stranded or solid conductors
