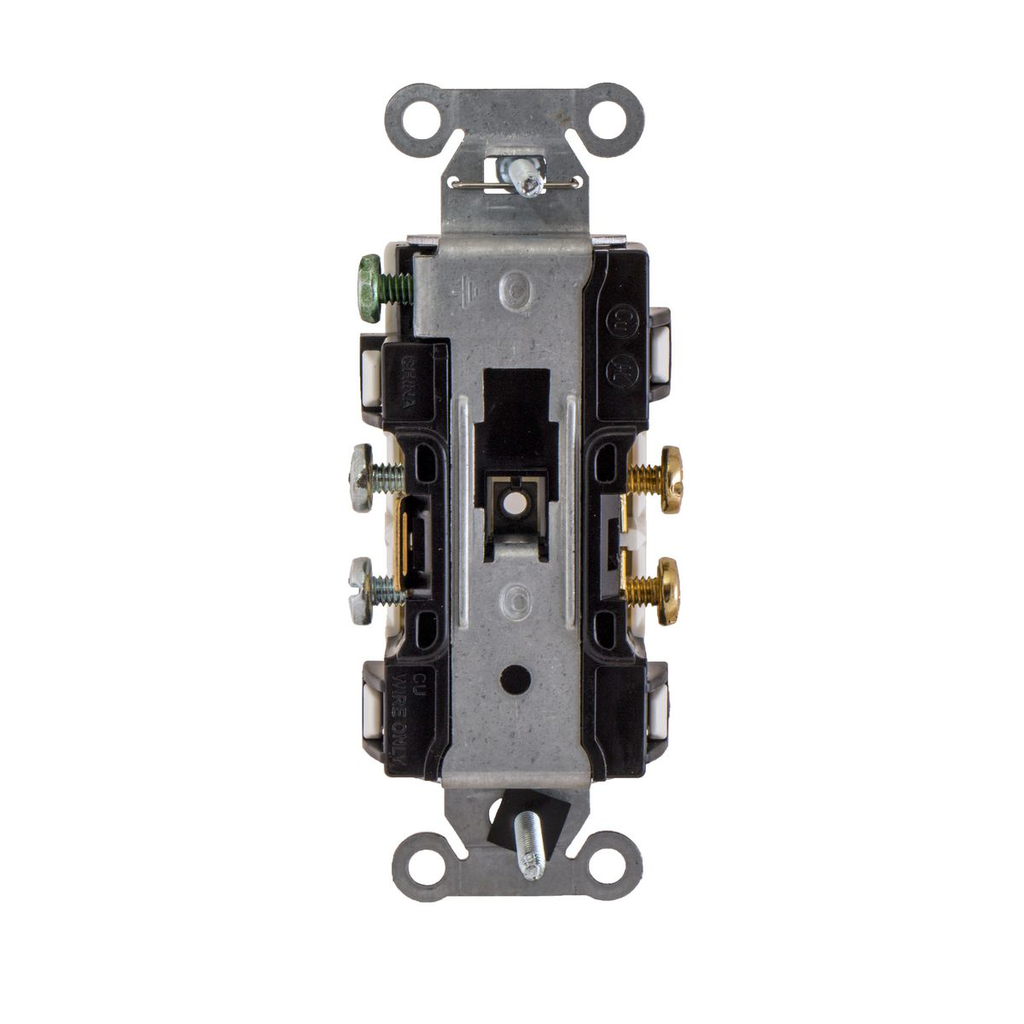

Construction/Commercial Receptacles CR20WHI – Commercial Specification Grade Receptacle

The Construction/Commercial Receptacles CR20WHI by Hubbell Wiring Device-Kellems are commercial specification grade, straight blade duplex receptacles designed for reliable electrical distribution in commercial and construction environments. These 20 amp, 125 volt, 2-pole, 3-wire grounding devices provide a durable and safe connection solution for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring high-quality receptacles for indoor dry environments.

Specifications

• Application: Commercial Specification Grade
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CR20WHI
• UPC: 783585900179
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Nylon face and base
• Color: White
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dimensions: Height 3.28 in, Width 0.83 in, Length 1.32 in
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: Minimum -40°C (without impact), Maximum continuous 75°C
• Environmental Conditions: Indoor dry unless protected by additional means
• Weight: 0.2 lbs

Features

• Easy access split circuit tab
• Fork terminal capable
• Smooth nylon face for durability and aesthetics
• Triple wipe brass contacts for improved conductivity and reliability
• Automatic self-grounding stainless steel staple
• Certified for current interrupting at full rated current
• Terminals identified in accordance with UL 498 and CSA standards
• UL Listed to UL498 File No. E2186 and CSA Certified to C22.2 No. 42
• Fed. Spec. W-C-596 and NEMA WD-6 compliant
