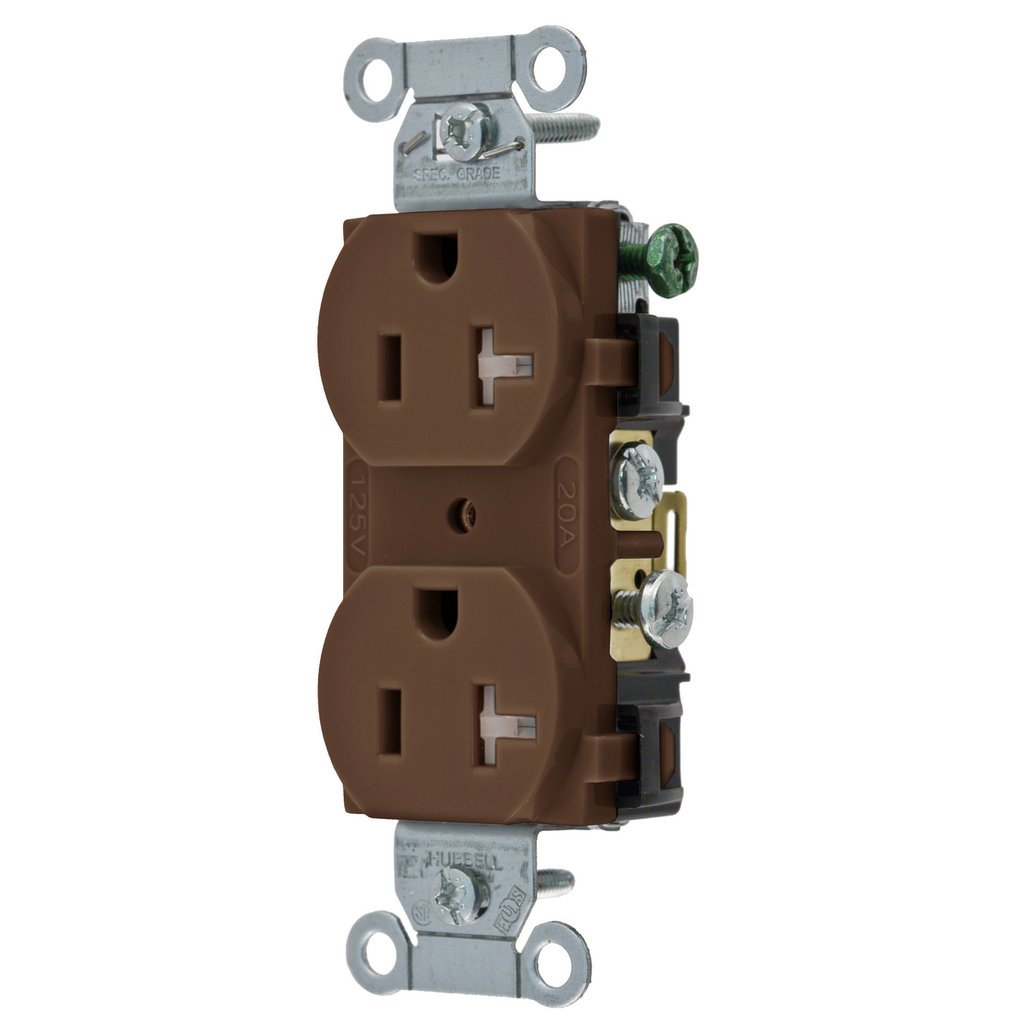

Construction/Commercial Receptacles CR20TR – Tamper-Resistant Duplex Receptacle

The Construction/Commercial Receptacles CR20TR by Hubbell Wiring Device-Kellems are tamper-resistant, commercial specification grade duplex receptacles designed for reliable electrical distribution in commercial and construction environments. These receptacles provide a safe and durable solution for wiring and cable installations, suitable for use by electrical distributors and switchgear suppliers requiring high-quality, code-compliant devices. Featuring a 2-pole, 3-wire grounding configuration rated for 20 amperes and 125 volts, they support standard NEMA 5-20R plugs and ensure secure mounting and wiring connections for indoor dry environments.

Specifications

• Application: Commercial Specification Grade
• Amperage Rating: 20 A
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Color: Brown
• Dimensions (HxWxL): 3.28 in x 1.14 in x 1.32 in
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Manufacturer Name: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CR20TR
• Product Weight: 0.2000 lbs
• UPC: 783585144252

Features

• Tamper-Resistant design with patented cam action mechanism for smooth and reliable plug insertion
• Commercial grade durability suitable for construction and commercial electrical installations
• Back and side wiring capability for flexible installation options
• Compliance with 2017 National Electrical Code® tamper-resistant receptacle requirements
• High dielectric strength ensuring safety and performance under voltage stress
• Compact dimensions facilitating installation in standard electrical boxes
