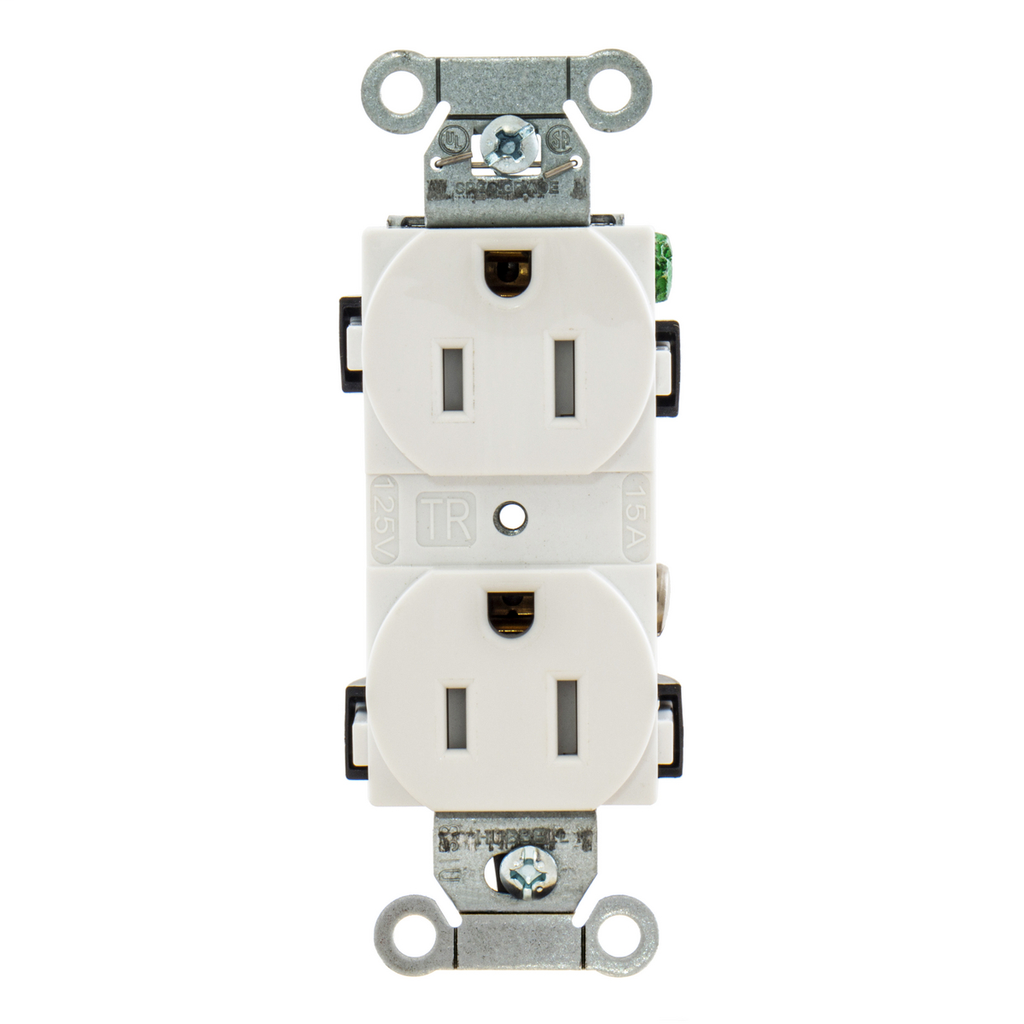

Construction/Commercial Receptacles BR15WHITR - Tamper-Resistant Receptacle

The Construction/Commercial Receptacles BR15WHITR is a tamper-resistant duplex receptacle designed for commercial and industrial applications. It provides a reliable electrical connection suitable for use by electrical distributors and lighting solutions providers. This receptacle supports 15 amperes at 125 volts with a 2-pole, 3-wire grounding configuration, ensuring compatibility with standard NEMA 5-15R plugs. Its screw mount design and back and side wiring options facilitate straightforward installation and maintenance in commercial environments.

Specifications

• Application: Commercial Specification Grade
• Amperage Rating: 15 A
• Current: 15 amperes
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Operating Temperature: -40 degrees Celsius
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Dimensions (HxWxL): 3.28 in x 0.83 in x 1.32 in
• Color: White
• Product Weight: 0.5250 lbs
• Manufacturer Name: Hubbell Wiring Device-Kellems
• Manufacturer Part #: BR15WHITR

Features

• Tamper-Resistant design with Hubbell patented Cam Action Technology for smooth plug insertion and enhanced safety
• Commercial/Industrial Grade durability for reliable performance in demanding environments
• Compatible with 15A, 125V electrical systems
• Back and side wiring options for installation flexibility
• Durable nylon construction for long-lasting use
• Meets UL and CSA certifications for safety and compliance
