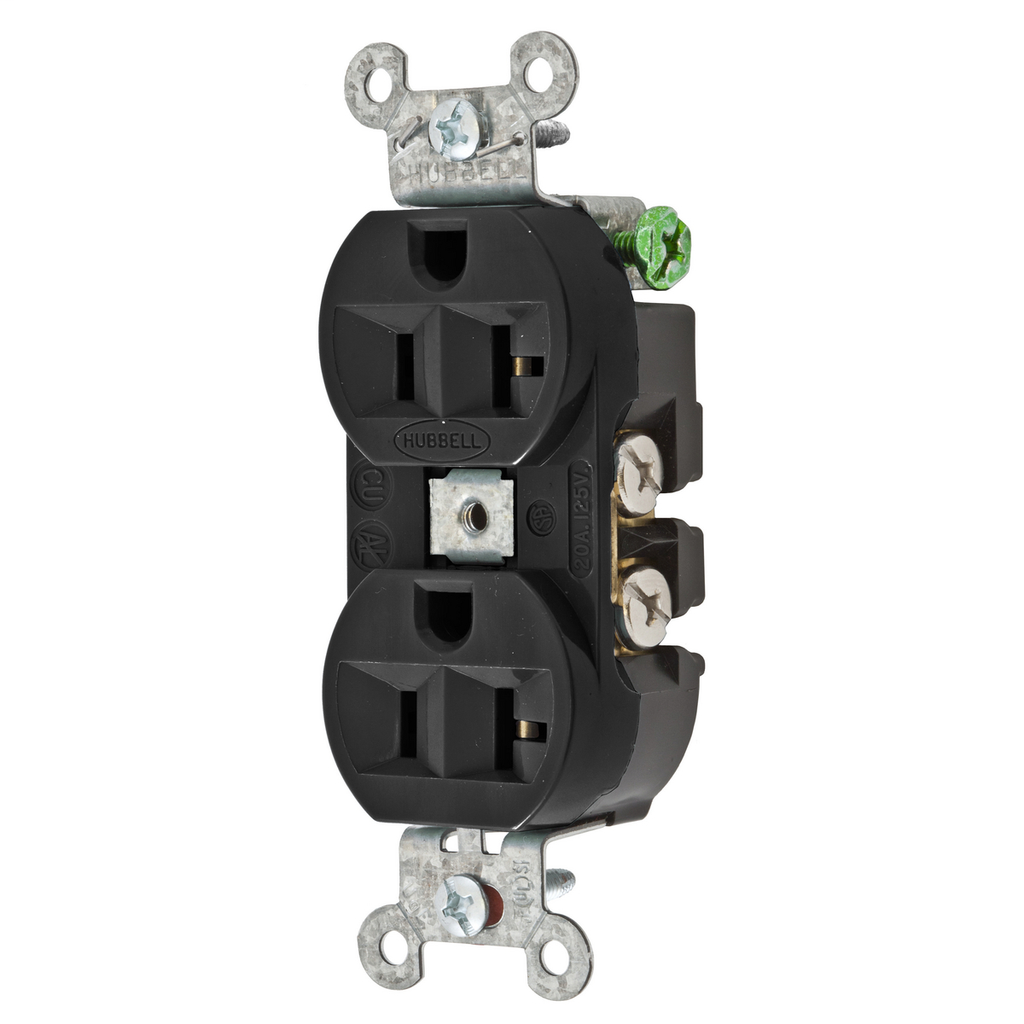

Construction/Commercial Receptacles 5362BLK - Heavy Duty Electrical Distributor Solution

The Construction/Commercial Receptacles 5362BLK by Hubbell Wiring Device-Kellems is a heavy-duty, commercial-grade duplex receptacle designed for reliable electrical distribution in industrial and commercial environments. It is ideal for use in wiring and lighting solutions requiring robust, specification-grade receptacles. This device supports 20 amperes at 125 volts, featuring a 2-pole, 3-wire grounding configuration with a NEMA 5-20R rating. Suitable for indoor dry environments unless additional protection is applied, it provides a durable and dependable connection for wire and cable installations.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 5362BLK
• Application: Hubbell-Pro Extra Heavy Duty
• Amperage Rating: 20 A
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Thermoplastic/Composite
• Color: Black
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dimensions (L x W x H): 3.28 in x 1.41 in x 1.09 in
• Product Weight: 0.2200 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry unless protected by additional means

Features

• Specification-grade duplex receptacle designed for commercial and industrial applications
• Back and side wired for flexible installation options
• Thermoplastic/composite construction for durability and electrical safety
• Meets Hubbell-Pro Extra Heavy Duty application standards
• UL and CSA listed for compliance and safety assurance
• Compact dimensions suitable for standard electrical boxes

Downloads & Links

• Wiring A-23 Catalog page
• WDK_5362_DRAWINGS_PDF
• Spec Sheet
