Construction/Commercial Receptacles 5352AW | Heavy Duty Electrical Receptacle

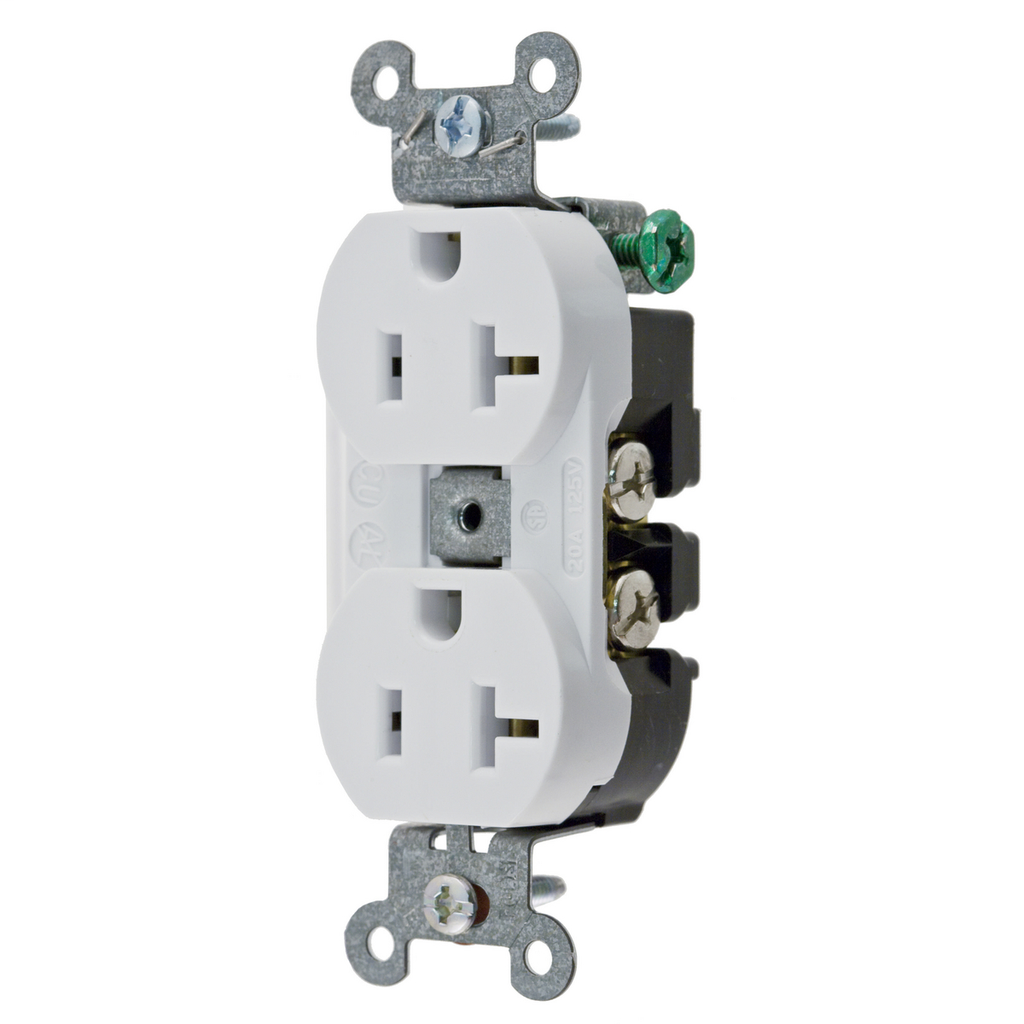

The Hubbell Wiring Device-Kellems Construction/Commercial Receptacle 5352AW is a Hubbell-Pro Heavy Duty specification grade duplex receptacle designed for commercial and industrial electrical distribution applications. It is a 20 ampere, 125 volt, 2-pole, 3-wire grounding device suitable for indoor dry environments unless additional protection is applied. This receptacle is ideal for use by electrical distributors and switchgear suppliers requiring reliable, durable wiring devices and lighting solutions.

Specifications

• Application: Hubbell-Pro Heavy Duty
• Amperage Rating: 20 A
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Dimensions (L x W x H): 3.28 in x 1.41 in x 1.09 in
• Product Weight: 0.4940 lb
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C minimum (without impact)
• Environmental Conditions: Indoor Dry unless protected by additional means

Features

• Smooth nylon face with a slender, compact design
• Triple wipe brass contacts for reliable electrical connection
• Automatic self-grounding stainless steel staple
• Galvanized steel mounting strap with zinc plated steel mounting screws
• Certified for current interrupting at full rated current
• UL 94 V-2 flammability rating
• Terminal accommodation for #12–#10 AWG copper stranded or solid conductor
• Terminal wire leads identified in accordance with UL 498
• Back and side wiring options for flexible installation
