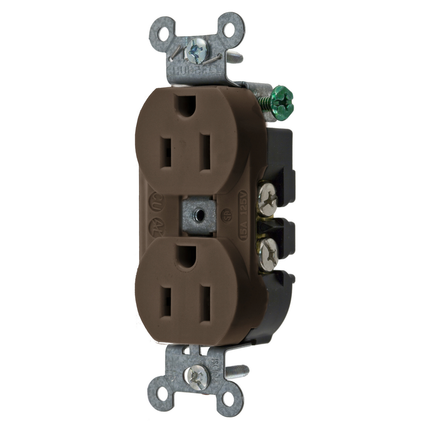

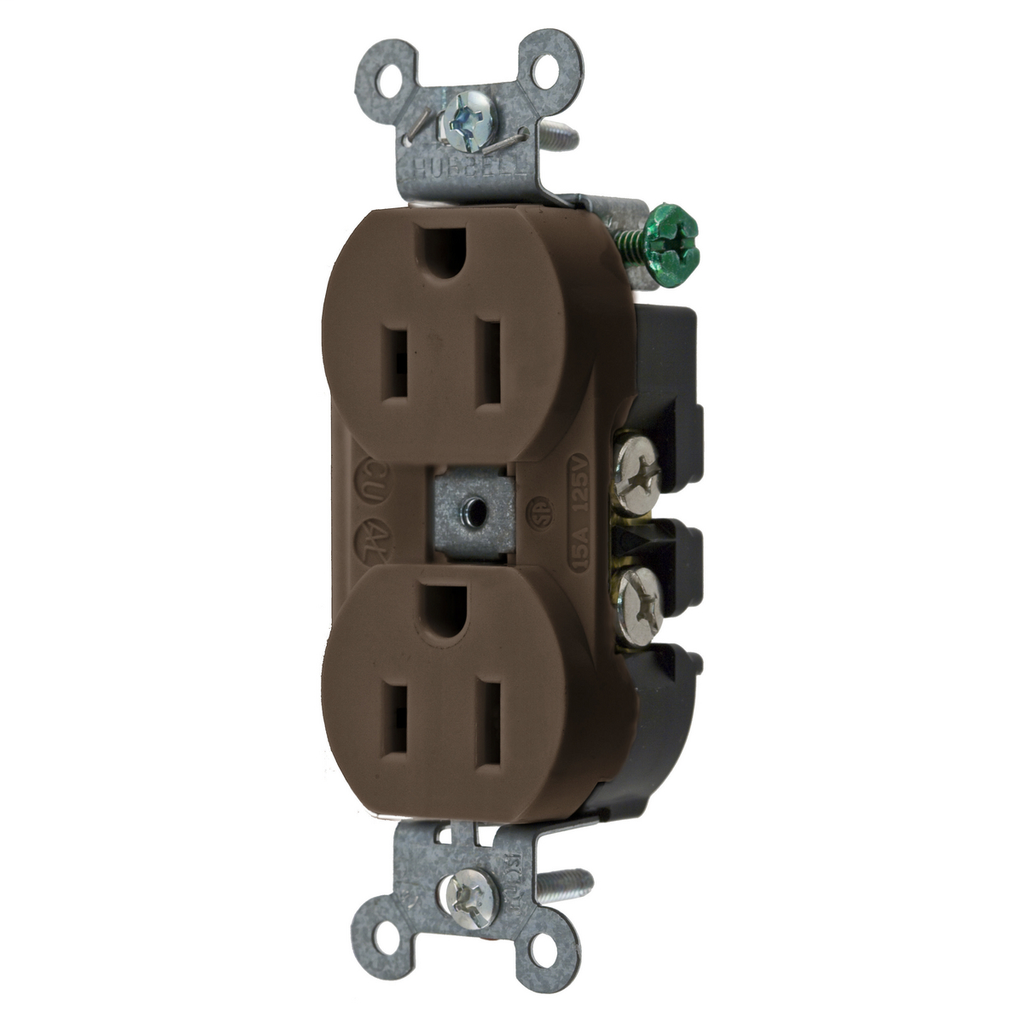

Construction/Commercial Receptacles 5252AB – Heavy Duty Electrical Distributor Solution

The Construction/Commercial Receptacles 5252AB by Hubbell Wiring Device-Kellems is a heavy duty, specification grade duplex receptacle designed for commercial and industrial applications. It features a straight blade, 2-pole, 3-wire grounding configuration rated at 15 amperes and 125 volts. This product is suitable for indoor dry environments and is ideal for electrical distributors and lighting solutions requiring reliable wire and cable connections.

Specifications

• Application: Hubbell-Pro Heavy Duty
• Amperage Rating: 15 A
• Voltage: 125 V
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Thermoplastic/Composite
• Mounting: Screw Mount
• Dimensions (L x W x H): 3.28 in x 1.41 in x 1.1 in
• Color: Brown
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 0.1500 lbs
• Manufacturer Part #: 5252AB

Features

• Commercial/Industrial grade duplex receptacle for heavy duty applications
• Straight blade design for secure and reliable connections
• Thermoplastic/composite construction for durability and electrical insulation
• Screw mounting for stable installation
• Meets industry standards with UL and CSA certification (implied by manufacturer and specs)
• Brown color coding for easy identification in wiring systems
