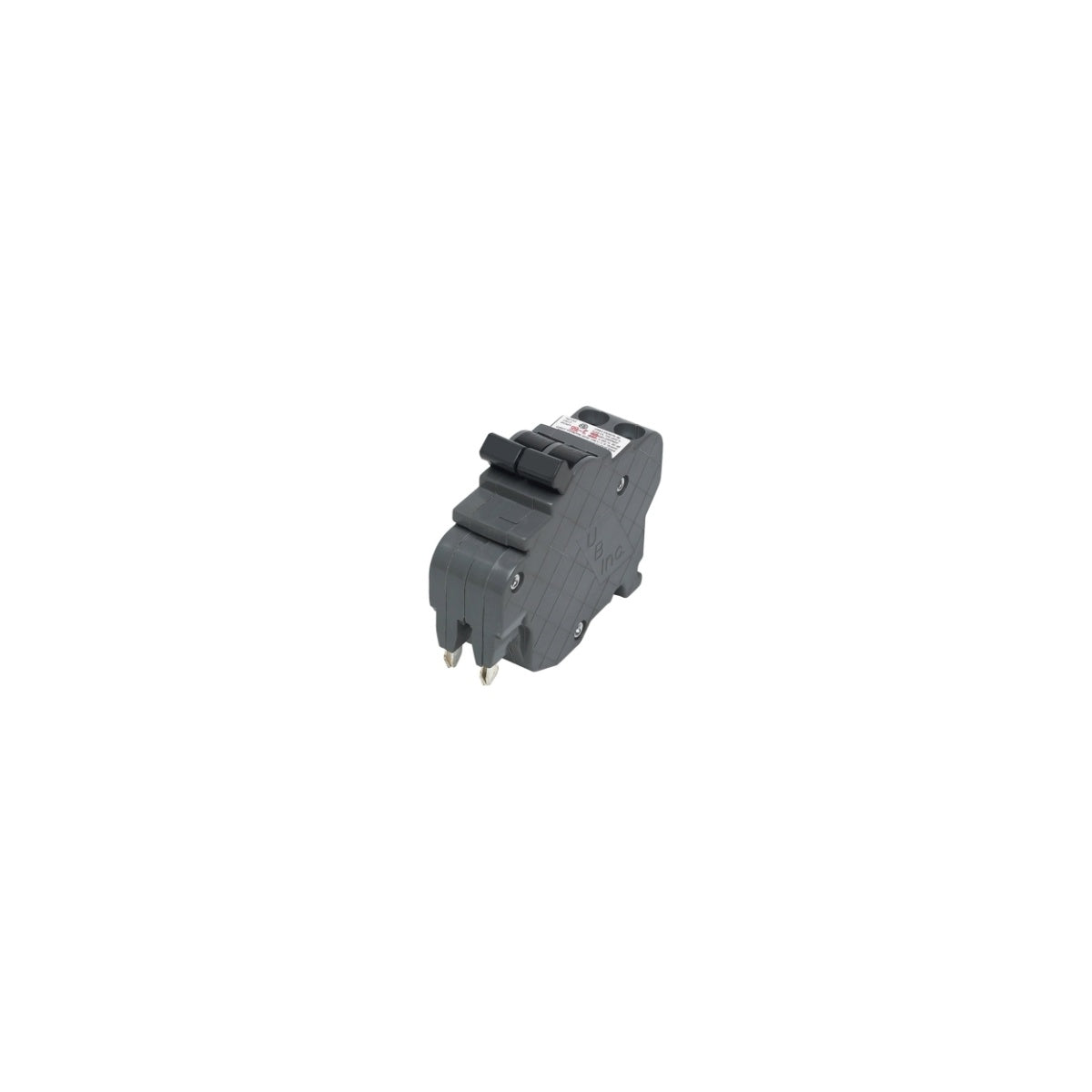

CONNECTICUT ELECTRIC UBIF-0220N CONNECTICUT ELECTRIC UBIF0220N CONNECTICUT ELECTRIC CIRCUIT BREAKER TYPE UBIF (THIN). 2-POLE 20A
SKU: #18979
Part: #UBIF0220N
UPC: 094925019339
CONNECTICUT ELECTRIC UBIF-0220N CONNECTICUT ELECTRIC UBIF0220N CONNECTICUT ELECTRIC CIRCUIT BREAKER TYPE UBIF (THIN). 2-POLE 20A
SKU: #18979
Part: #UBIF0220N
UPC: 094925019339
Description
CONNECTICUT ELECTRIC UBIF0220N Circuit Breaker 2-Pole 20A
The CONNECTICUT ELECTRIC UBIF0220N is a 2-pole, 20-amp circuit breaker designed for use as a replacement in Federal Pacific Electric® load centers. It is engineered to meet the requirements of electrical distributors and switchgear suppliers, providing reliable protection for electrical circuits in residential and commercial applications. This breaker is HACR (Heating and Air Conditioning Rated) and SWD (Switch Duty) certified, ensuring compatibility with HVAC equipment and general electrical systems.
Specifications
- Manufacturer: CONNECTICUT ELECTRIC
- Manufacturer Part #: UBIF0220N
- Poles: 2
- Voltage: 120/240 Volts AC
- Amperage: 20 Amps
- Interrupting Rating: 10,000 Amps max RMS SYM
- Series: Thin
- Weight: 0.3 lbs
- UPC: 094925019339
Features
- Replacement breaker for Federal Pacific Electric® load centers
- Meets or exceeds ANSI/UL 489, 9th and 10th Edition standards
- Performance tested for calibration, overload, endurance, and dielectric withstand
- HACR and SWD rated for heating, air conditioning, and general switch duty applications
- Compact thin profile design for space-saving installations
