CONNECTICUT ELECTRIC UBIF-020N CIRCUIT BREAKER TYPE UBIF (THIN). 1-POLE 20A
SKU: #18971
Part: #UBIF-020N
UPC: 094925019315
CONNECTICUT ELECTRIC UBIF-020N CIRCUIT BREAKER TYPE UBIF (THIN). 1-POLE 20A
SKU: #18971
Part: #UBIF-020N
UPC: 094925019315
Description

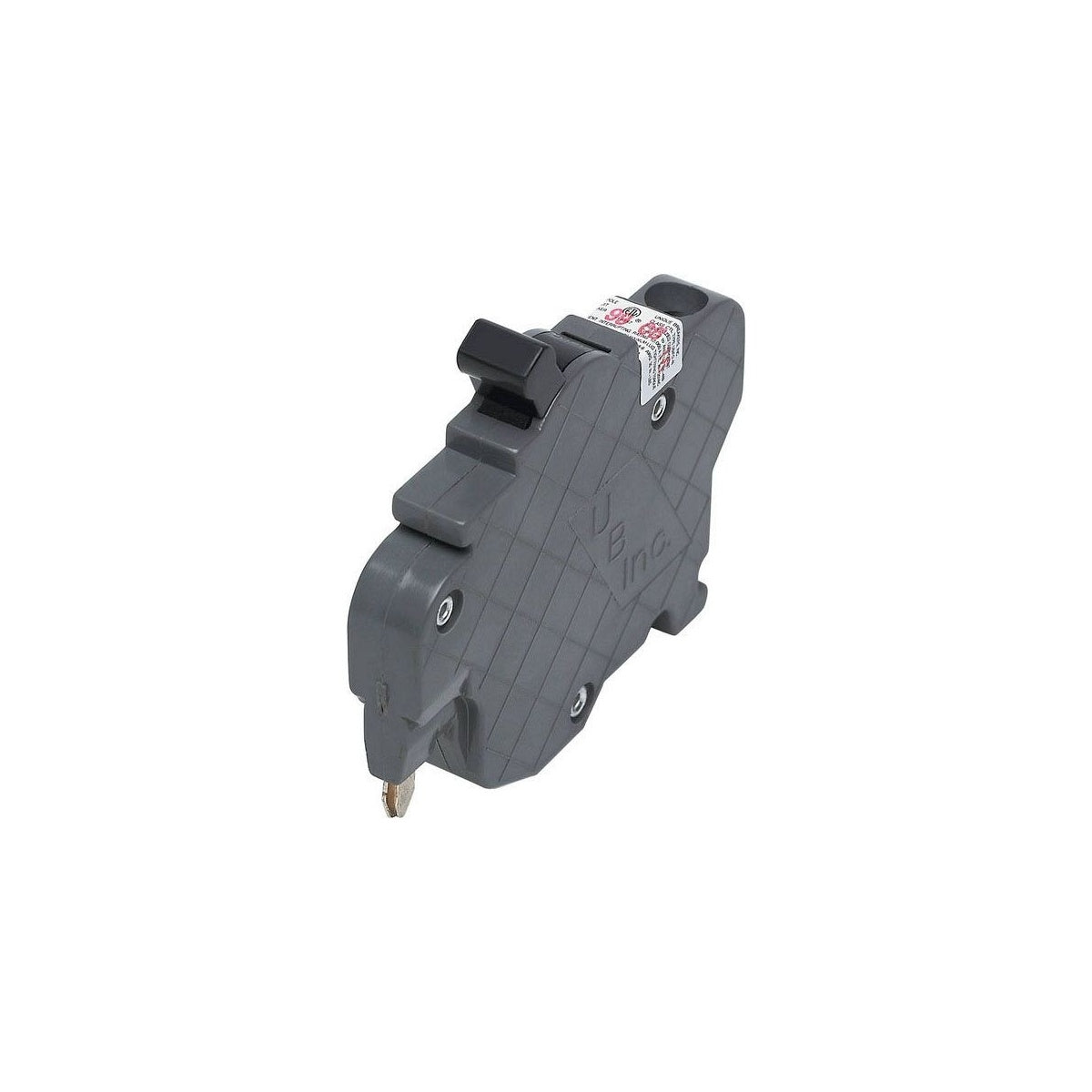

CONNECTICUT ELECTRIC UBIF-020N Circuit Breaker Thin 1-Pole 20A
The CONNECTICUT ELECTRIC UBIF-020N is a 1-pole, 20-amp thin series circuit breaker designed for use in Federal Pacific Electric® load centers. It serves as a reliable replacement breaker suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring compatible, certified circuit protection devices.
Specifications
- Manufacturer: CONNECTICUT ELECTRIC
- Manufacturer Part #: UBIF-020N
- Catalog Number: UBIF020N
- Poles: 1
- Voltage Rating: 120 Volts AC
- Amperage: 20 Amps
- Series Type: Thin
- Interrupting Rating: 10,000 Amps max RMS SYM
- Weight: 0.1 lbs
- UPC: 094925019315
Features
- Meets or exceeds ANSI/UL 489 Standard (9th and 10th Editions)
- Switch Duty (SWD) rated
- Tested and certified to National Electric Code requirements
- Compatible replacement for Federal Pacific Electric® load centers
- Compact thin profile design for space-saving installations
