CONN, W/TIGHT, 3P 30A 250V, L15-30R, YL
SKU: #143055
Part: #HBL29W75
UPC: 783585131887
CONN, W/TIGHT, 3P 30A 250V, L15-30R, YL
SKU: #143055
Part: #HBL29W75
UPC: 783585131887
Description

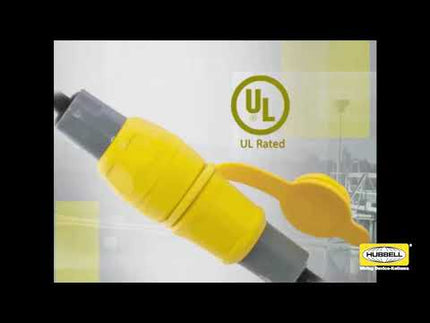

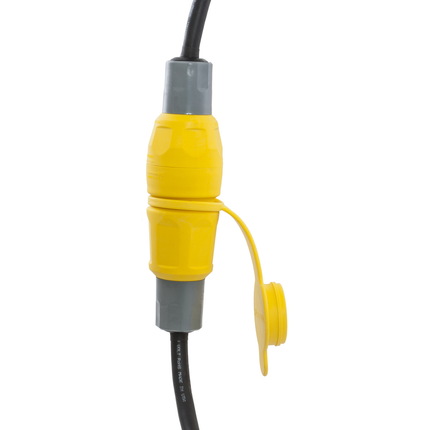

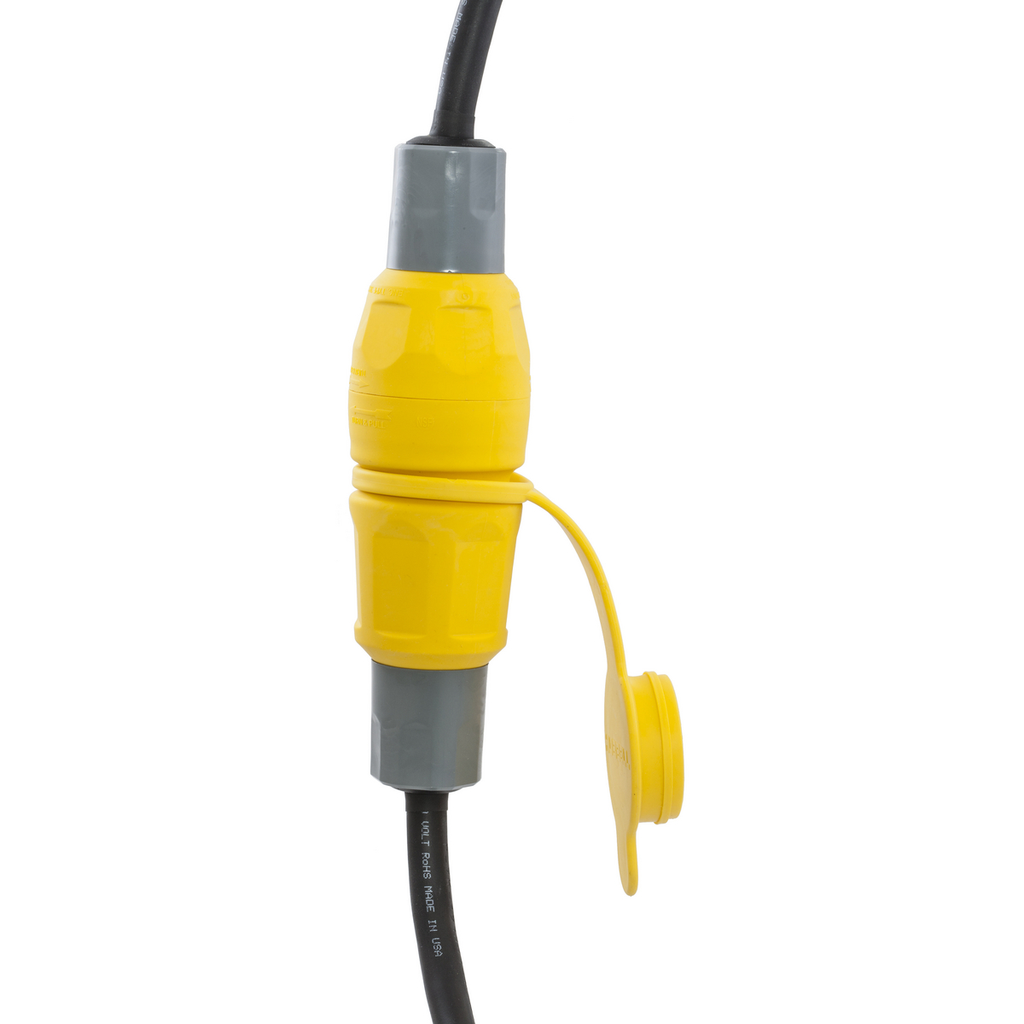

CONN, W/TIGHT, 3P 30A 250V, L15-30R, YL Twist-Lock Connector
This watertight Twist-Lock® connector is designed for industrial and commercial electrical applications, providing secure and durable connections for 3-phase power systems. It supports 30 amperes at 250 volts AC with a 3-pole, 4-wire grounding configuration, making it suitable for heavy-duty wiring and cable management needs. The connector features a thermoplastic elastomer body with an insulated design, ensuring resistance to water ingress and environmental conditions. It is cord mounted and uses terminal screw connections for reliable electrical contact, meeting NEMA L15-30R standards.
Specifications
- Application: Industrial/Commercial
- Amperage Rating: 30 A
- Current: 30 amperes
- Voltage: 250V AC
- Number of Poles: 3-Pole
- Number of Wires: 4
- Number of Conductors: 4-Wire Grounding
- Material: Elastomer/Composite
- Color: Yellow
- Mounting: Cord Mounted
- Connection: Terminal Screws
- Insulation: Insulated Body
- Conductor Range: #14AWG to #10AWG
- NEMA Rating: L15-30R
- Width: 7.5 in
- Product Weight: 9.4780 lbs
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL29W75
Features
- Watertight construction suitable for harsh industrial environments
- Twist-Lock® design prevents unintentional disconnection
- Thermoplastic elastomer body provides impact and chemical resistance
- Insulated body enhances safety and durability
- Terminal screw connections ensure secure wiring
- Yellow color coding for easy identification of voltage and amperage
- Cord mounted for flexible installation
