Conduit Riser Support Grips, Single Weave, Closed Mesh, Ring Type, 4.00" Conduit, Tin-Coated Bronze, 2.00-2.49"
SKU: #135153
Part: #02211041
UPC: 783585305332
Conduit Riser Support Grips, Single Weave, Closed Mesh, Ring Type, 4.00" Conduit, Tin-Coated Bronze, 2.00-2.49"
SKU: #135153
Part: #02211041
UPC: 783585305332
Description

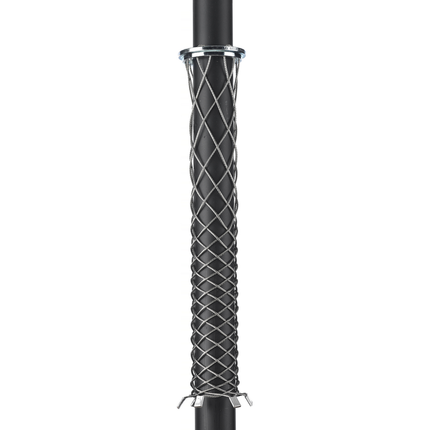

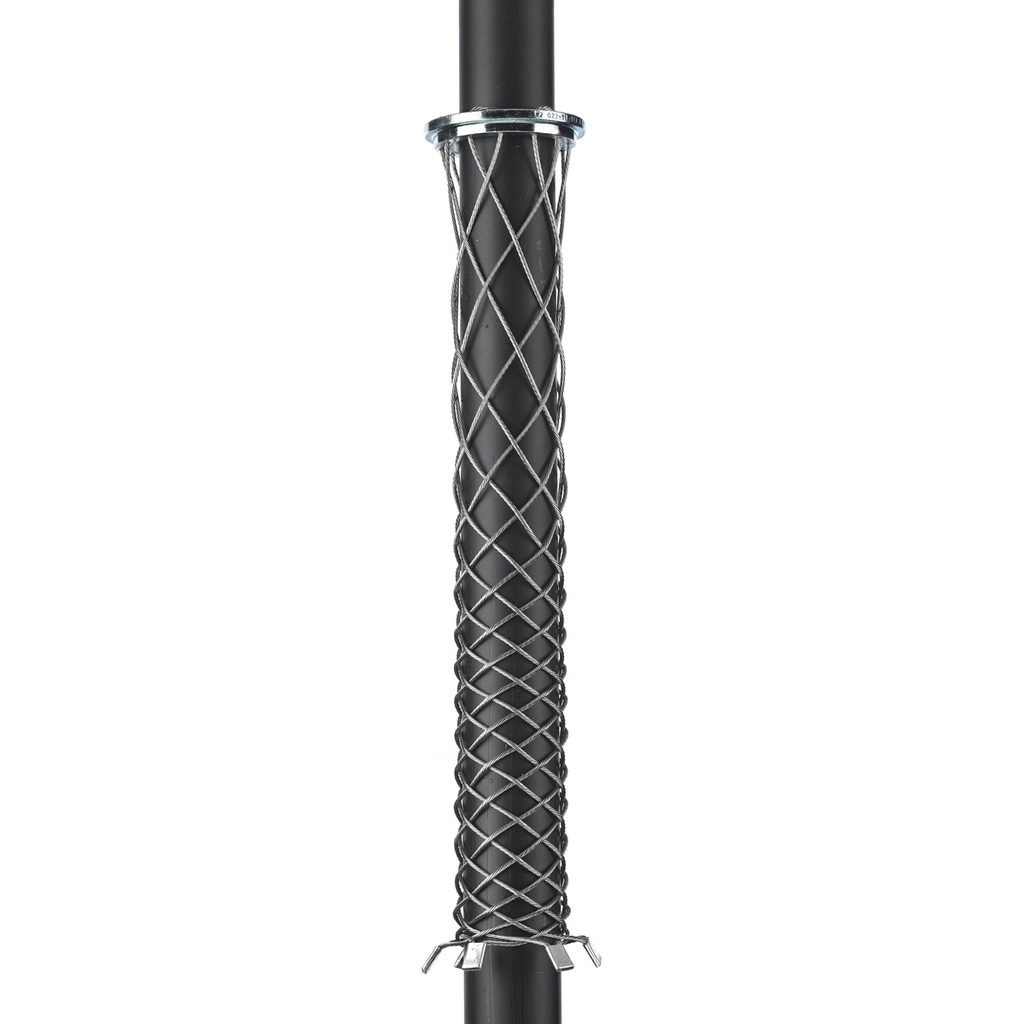

Conduit Riser Support Grips, Single Weave, Closed Mesh, 4.00" Conduit, Tin-Coated Bronze – Cable Support in Conduit
This conduit riser support grip is designed to provide secure cable support inside standard electrical rigid metal conduit and schedule 40 rigid PVC conduit. Manufactured by Hubbell Wiring Device-Kellems, it is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. The grip features a single weave, closed mesh construction of tin-coated bronze strands, permanently fastened to a bronze support ring, allowing ventilation within the conduit while supporting cable loads ranging from 2.00 to 2.49 inches in diameter.
Specifications
- Application: Cable Support in Conduit
- Material: Bronze, Tin Coated
- Construction: Woven
- Color: Metallic
- Width: 4.250 in
- Hub Size: 4 in NPT
- Mounting: Mounts Inside Conduit
- Approximate Breaking Strength: 2,680 lbs (11,921 N)
- Working Load: 268 lbs (1,192 N)
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 02211041
- UPC: 783585305332
Features
- Suitable for standard rigid metal conduit and schedule 40 rigid PVC conduit only
- Permanently fastened to support ring for secure installation
- Designed for permanent support when cable end is available to be installed through the grip
- Single weave, closed mesh design allows ventilation within conduit
- Constructed from non-magnetic tin-coated bronze strands for durability and corrosion resistance
- CSA Certified for compliance with safety and quality standards
