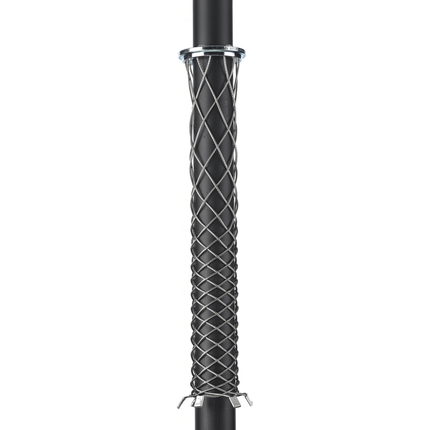

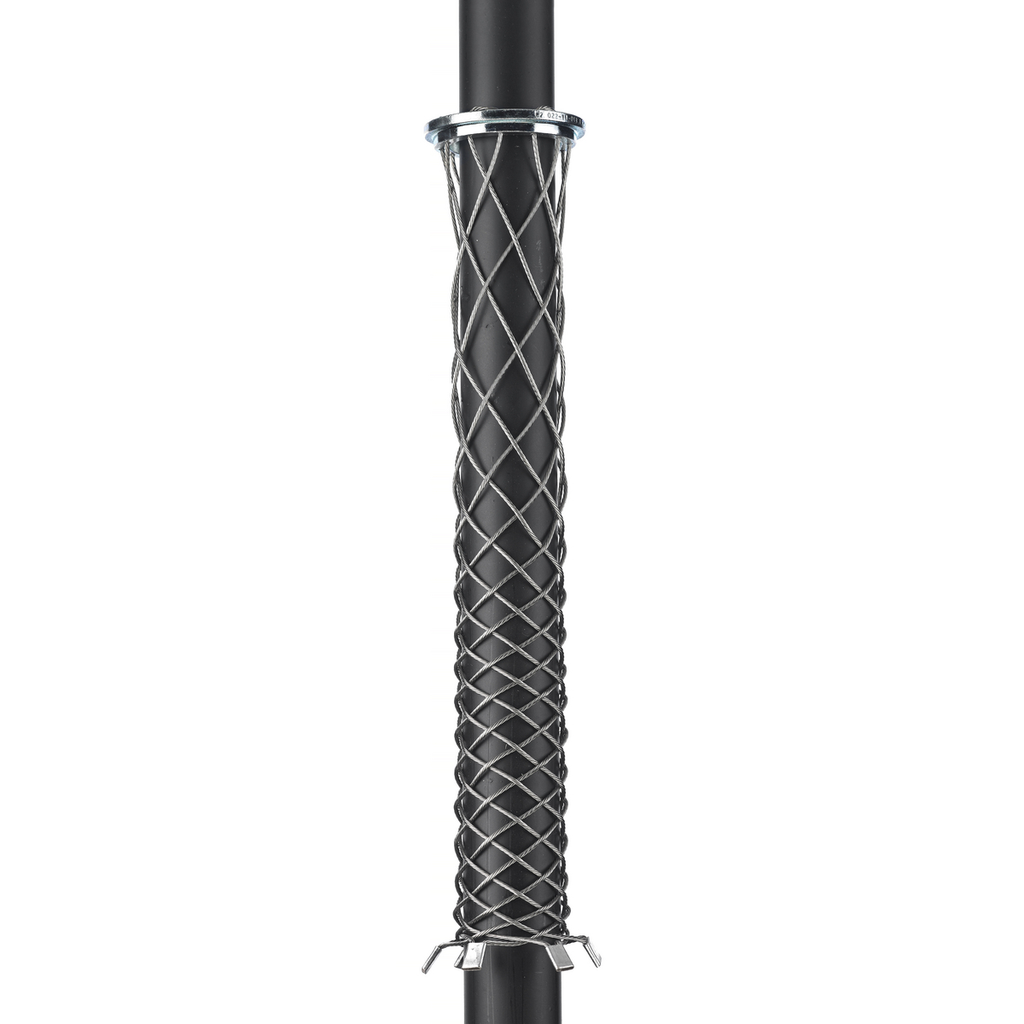

Conduit Riser Support Grips, Single Weave, Closed Mesh, Ring Type, 2.50" Conduit, Tin-Coated Bronze, 1.50-1.74"
SKU: #135027
Part: #02211018
UPC: 783585304946
Conduit Riser Support Grips, Single Weave, Closed Mesh, Ring Type, 2.50" Conduit, Tin-Coated Bronze, 1.50-1.74"
SKU: #135027
Part: #02211018
UPC: 783585304946
Next day delivery
Description
Conduit Riser Support Grips, Single Weave, Closed Mesh, 2.50" Conduit - Cable Support
This conduit riser support grip is designed for secure cable support within conduit systems, suitable for use by electrical distributors and switchgear suppliers. It is engineered for cable support in conduit applications, providing reliable support for single or multiple cables inside standard electrical rigid metal conduit and schedule 40 rigid PVC conduit. The product is made from tin-coated bronze, ensuring durability and corrosion resistance, and mounts inside the conduit for permanent cable support.
Specifications
- Application: Cable Support in Conduit
- Material: Bronze, Tin Coated
- Construction: Woven
- Mounting: Mounts Inside Conduit
- Hub Size: 2 1/2 in NPT
- Width: 2.8 in
- Product Weight: 0.7 lbs
- Color: Metallic
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 02211018
Features
- Single weave, closed mesh design for effective cable support
- Permanent one-piece unit with support ring for secure installation
- Allows air ventilation within the conduit
- Fits standard electrical rigid metal conduit and schedule 40 rigid PVC conduit
- Tin-coated bronze strand material provides corrosion resistance
- Recommended safety factor of ten for catalog-listed support grips
