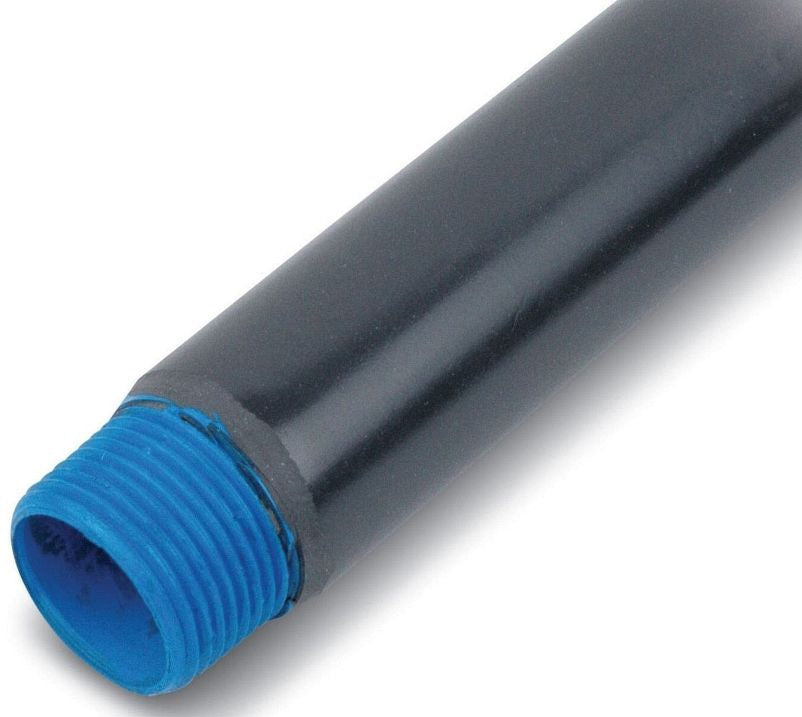

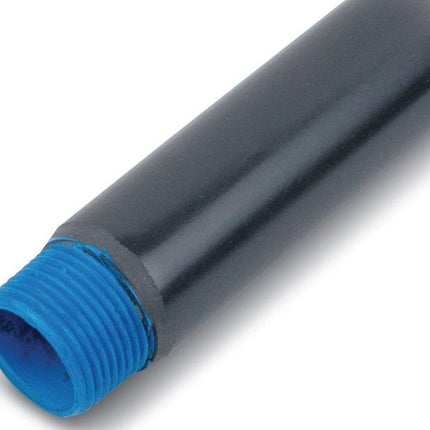

Features

• A nominal .002 in. (2 mil) blue urethane on the interior.
• Color coded thread protectors on each end.
• A minimum .040 in. (40 mil) PVC coating on the exterior.
• Blue urethane coating over Hot-Dip Galvanized threads.

General

• Finish: Hot-Dipped Galvanized
• Color: Dark Gray
• Thread Protector Color: Black
• Material: Steel

Dimension Information

• Cross Section Area (mm): 121.61
• Nominal Inside Diameter (inches): 2.489
• Size (inches): 2 1/2
• Length without Couplings: 9' 10-1/2"
• O.D. with PVC (inches): 2.955
• Pipe Size (Metric Size Designator*): 63
• Minimum Weight Per Foot (kil): 239.05
• Nominal Wall Thickness-Steel Only (inches): 0.193
• Nominal Wall Thickness-Steel Only (mm): 4.90
• Minimum Weight Per Foot (lbs): 5.27
• Length without Couplings (mm): 3.01
• O.D. Steel Only (inches): 2.875
• O.D. Steel Only (mm): 73.0
• O.D. with PVC (mm): 75.0
• Nominal Wall Thickness with PVC (inches): 0.233
• Nominal Wall Thickness with PVC (mm): 5.91
• Cross Section Area (square inches): 4.788
• Nominal Inside Diameter (mm): 63.2

Technical Information

Specifications

Packaging

• T&B Sold in UOM: Feet
• T&B Weight Per UOM: 5.88 lbs. Each
• Inner Package: 10
• Package Width: 18.5
• Outer Package: 170
• Package Height: 9
• Order Multiple: 10
• Package Length: 120

Application Support

Notes

• Coupling(s) shipped with conduit are packaged separately
• Metric size designator (ANSI C80. 1-1994)

Certifications

• RoHS Compliance: No
• UL
• CSA
