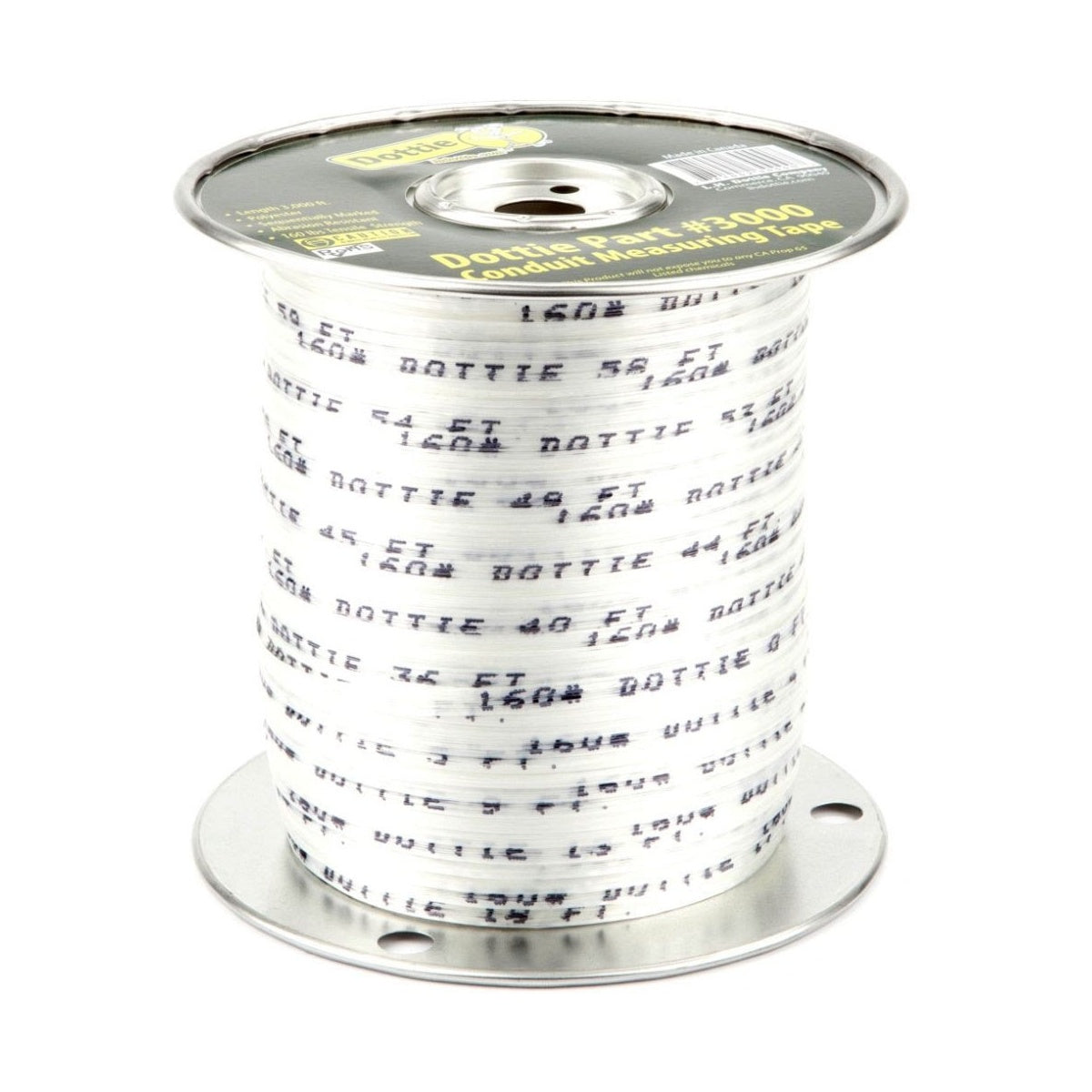

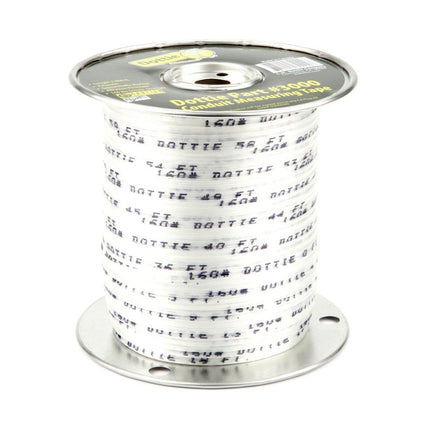

Conduit Measuring Tape PC 6031 – Conduit Measuring Tape for Electrical Distributors

The Conduit Measuring Tape PC 6031 by L.H. Dottie is a polyester pull line and measuring tape designed for efficient conduit measurement and wire fishing in electrical installations. It is sequentially marked in one-foot increments and made of strong, waterproof polyester, allowing it to be fished into conduit and left in place for extended use. This product is ideal for electrical distributors and switchgear suppliers requiring reliable measuring solutions for conduit runs.

Specifications

• Product Name: Conduit Measuring Tape PC 6031
• Application: Measuring Conduit
• Length: 3000' (feet)
• Load: 14 lb
• Product Weight: 3.4 lb
• Dimensions (L x W x H): 6.7717" x 6.6929" x 7.1654" (inches)
• Manufacturer: L.H. Dottie
• Manufacturer Part #: 3000
• Material: Polyester (waterproof)
• Marking: Sequentially marked in one-foot increments
• Tensile Strength: 14 lb

Features

• Strong, waterproof polyester construction for durability in conduit environments
• Sequential marking allows precise measurement during conduit fishing and installation
• Can be fished into conduit and remain for extended periods for future wire pulling
• Designed specifically for electrical distributors and wire and cable applications
• Lightweight and easy to handle for efficient installation and measurement

Downloads & Links

• Spec Sheet
