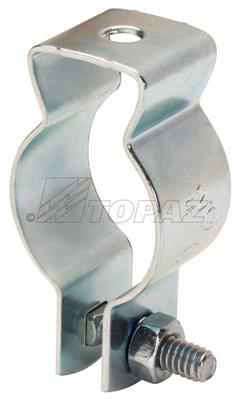

Conduit Hangers with Attached Bolt & Nut, 1-1/2" EMT, 1-1/4" Rigid, Steel – Electrical Conduit Support

Topaz conduit hangers with attached nut and bolt are designed for secure attachment of EMT and rigid conduit directly to mounting surfaces. Suitable for electrical distributors and switchgear suppliers, these hangers support conduit sizes from 3/8” to 4” and are fabricated from durable steel with zinc plating. Ideal for indoor or outdoor use, they provide reliable conduit suspension and support in lighting solutions, wire and cable installations, and electrical distribution systems.

Specifications

• Application: For Rigid And EMT Conduit
• Material: Steel
• Mounting: Bolt
• Cable Size: 1-1/4 IN Rigid, 1-1/2 IN EMT
• Construction: Conduit Hanger Assembly
• Number of Holes: 3
• Product Weight: 0.1220 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 604

Features

• Assembled with attached nut and bolt featuring a slotted Phillips head for secure installation
• Zinc plated finish for corrosion resistance
• UL listed for safety and compliance
• Supports conduit sizes 3/8”–1/2” up to 4” (specific size 1-1/4" rigid, 1-1/2" EMT)
• Suitable for indoor and outdoor applications
• Designed to secure and suspend conduit from overhead supports

Downloads & Links

• Spec Sheet
