Conduit Elbow - Standard Radius | PVC-Coated Conduit Fittings

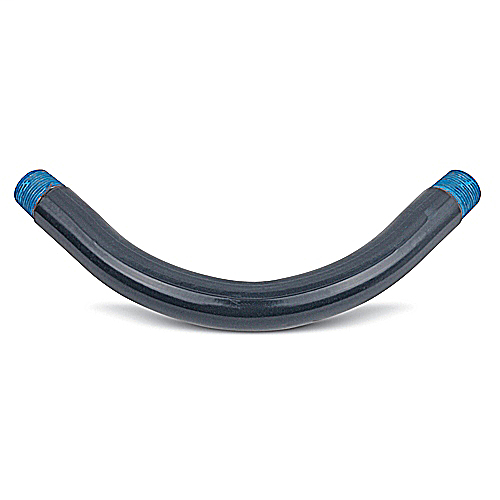

The Conduit Elbow - Standard Radius is designed to change direction for threaded, rigid conduit or when terminating at a box or fitting. This 30-degree bend fitting is fabricated from hot-dip galvanized steel with a 40 mil PVC coating, providing superior corrosion resistance for electrical distributors and lighting solutions in demanding environments. It is suitable for use in wire and cable raceway systems where durable and corrosion-resistant conduit fittings are required.

Specifications

• Material: Steel
• Finish: Hot-Dipped Galvanized
• Color: Gray
• Pipe Size: 1-1/2 Inch (41 millimeters inside diameter)
• Angle: 30 Degrees
• Radius: 8-1/4 Inch (209.55 millimeters)
• Offset: 11 Inch (279.40 millimeters)
• Straight End Length: 2-3/4 Inch (69.85 millimeters)
• Unbent Length: 18.46 Inch (468.86 millimeters)
• Product Weight: 152 lbs
• Connection Type: 30 Degree Bend
• Carton Quantity: 1
• Box Quantity: 40
• Manufacturer: Ocal
• Manufacturer Part #: ELL11/230-G

Features

• Standard radius elbow fabricated from hot-dip galvanized rigid steel for enhanced corrosion protection.
• Nominal 40 mil PVC coating on the exterior with a 2 mil blue urethane interior coating for durable corrosion resistance.
• Hot-dip galvanized threads to protect against corrosion in highly corrosive environments, meeting NEMA RN-1 and UL6 standards.
• Color-coded thread protectors on each end for easy identification and protection during handling.
• Designed for use with threaded, rigid conduit systems to provide reliable direction changes and terminations at boxes or fittings.
