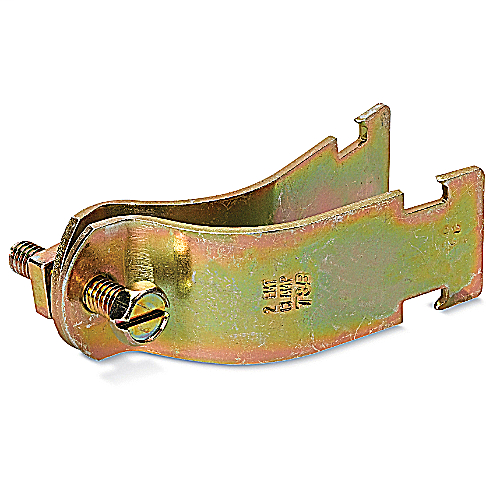

Conduit, Cable & Pipe Supports Pipe Strap – Hot-Dip Galvanized Steel

This Kindorf conduit, cable, and pipe support pipe strap is designed for secure attachment of rigid conduit, IMC, and pipe in electrical installations. Manufactured from 12 gauge steel with a hot-dip galvanized finish, it provides corrosion resistance suitable for various industrial and commercial applications. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable support solutions.

Specifications

• Material: Steel
• Pipe Size: 2-1/2 Inches
• Thickness: 12 Gauge
• Surface Protection: Hot-dip Galvanized
• Box Quantity: 50
• Product Weight: 17 lbs
• Manufacturer Part #: C 105 2 1/2 HD

Features

• Bolt head combines slot and hex head for flexible attachment
• Square nut captivated on shoulder for easy one-handed tightening
• Straps interchangeable with 1-5/8 inch strut for broader application
• Pre-assembled for efficient handling and sorting

Downloads & Links

• Technical Drawing / Data Sheet US
• Spec Sheet
