Features

• Flat sides provide excellent contact for locknuts
• External ears are used to nail the ring to the wood form
• Top cover is removable for before-pour work
• Ears on inside of box are for fixtures
• Waxed fixture ears prevent concrete from interfering with the threads
• A variety of covers are available
• Cover plate must be orered separately with all RACO® concrete rings
• Used in high-rise construction
• 61.5 cu. in. capacity
• Not designed for ceiling fan support, the maximum support load for a static fixture is 50 lbs

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Width: 4.000 in
• Each - Width: 4.000 in
• Height: 4 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 49.3 cu.in
• Depth: 4 in
• Knockouts: 1/2 in;3/4 in
• Standard: UL Listed

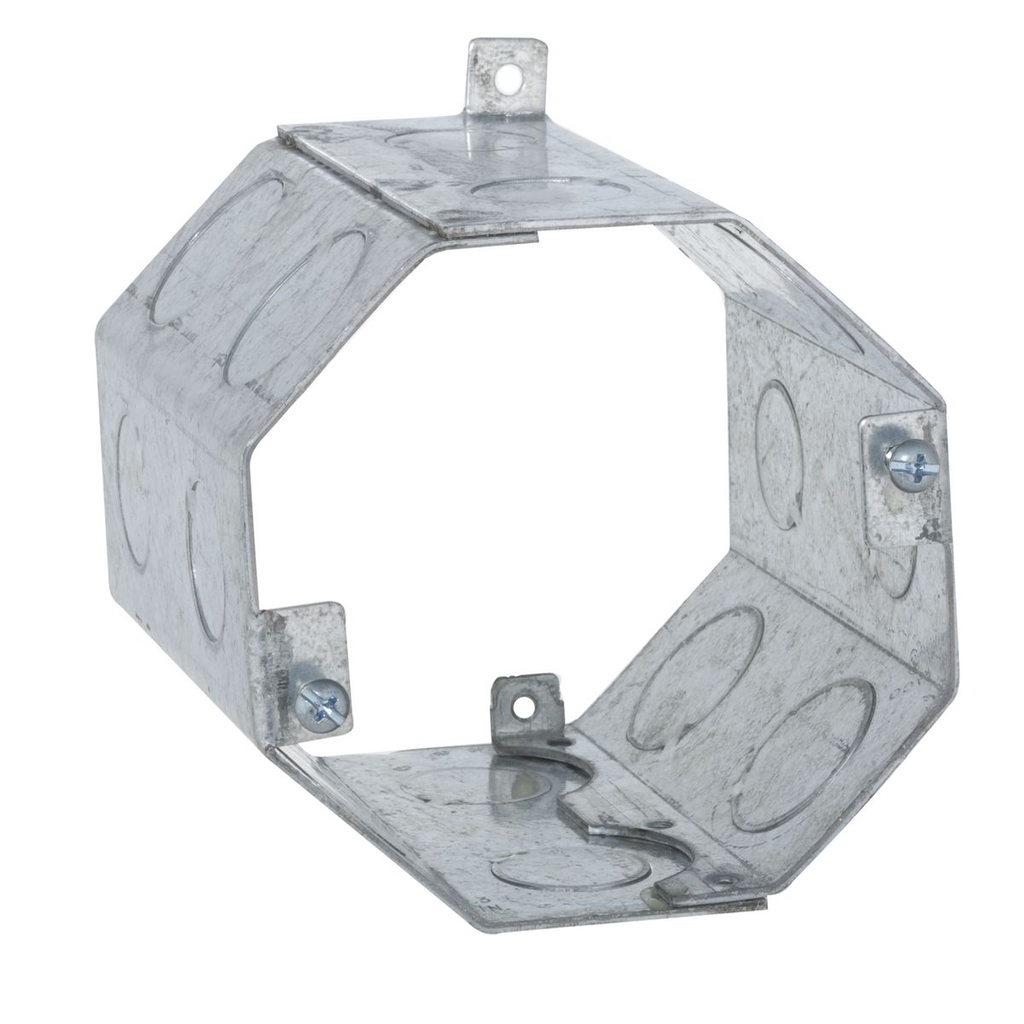

• Type: Concrete Ring
• Weight: 1.03 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: CNCTRNG 4DP 1/2&3/4KO DBL RW
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 20 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D017D0170
• Drawn or Welded: Welded
• Fixture Lbs.: 50 lb.
• Wiring System: Conduit
• Material: Steel
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 10.25x20.25x8.5 (in)
• Box Type: Fan Fixture Box
• Carton - Gross Weight per Pack: 20.6 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169002742
• Carton - Total Units: 20 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169002741
• Pallet - Number of Sub Packs: 50
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169002747
• Pallet - Total Units: 1000 EA
• Pallet Height: 46.875 in
• Pallet Length: 42.000 in
• Pallet Weight: 1075.000 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
