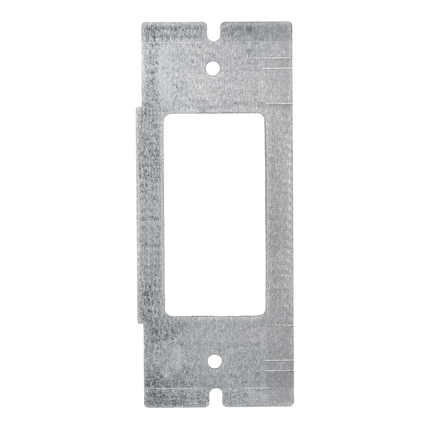

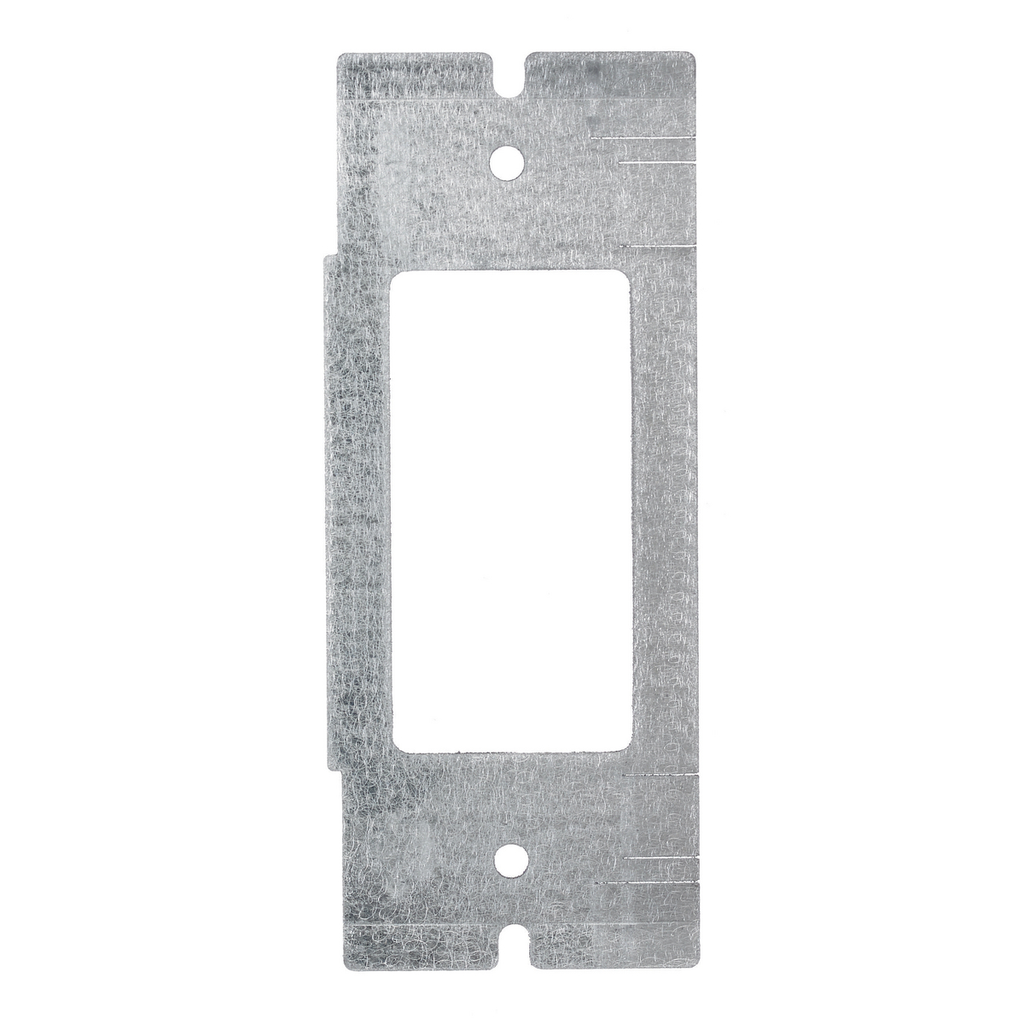

Features

• Plate for Use in SystemOne 2, 4 & 6-Gang Recessed Floorboxes
• 1-Gang- StyleLine/Decorator Opening
• Horizontial 1-Gang Sub-Plate with (1) StyleLine/Decorator Opening

Specifications

• Country of Origin: United States
• Application - For Use On: Concrete; Raised Access; Wood
• Cover Shape: Rectangle; Round
• Width: 4.500 in
• Each - Width: 4.500 in
• Industry Standard(s): cULus
• Mounting Method: Mounts to Box
• Size: 2-Gang;4-Gang;6-Gang
• Standards - RoHS Compliance Status: CM
• Application: For Use in Recessed Floor Box
• Color: Metallic
• Mounting: (1) Screw Mount
• Special Features: Horizontial 1-Gang Sub-Plate with (1) StyleLine/Decorator Opening
• Standard: cULus
• Type: 2, 4, & 6-Gang Recessed Floor Box Mounting Plates
• Cover Type: Rectangle; Round
• Mounting Type: (1) Screw Mount
• Description - Invoice: MOUNTING PLATE - RECT STYLE LINE/DEC/GFI
• Freight Class Code: 06168002
• Harmonization Code: 7323999080
• Image Actual Or Representative: A
• MSDS Flag: No
• Construction: Stamped
• Material: Pre Galvanized Steel
• Series: Recessed - CFB Series;Recessed Rectangular - AFB Series
• Base Unit of Measure: EA
• BOX SIZE: 4.900x8.300x5.500 (in)
• Carton - Gross Weight per Pack: 67.750 lb.
• Carton - Number of Sub Packs: 15
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585191553
• Carton - Total Units: 15 EA
• Case Weight: 2.850 lb.
• Pallet - GTIN - Package: 70783585191552
• Pallet Height: 45.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 1096.200 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Contact Manufacturer
