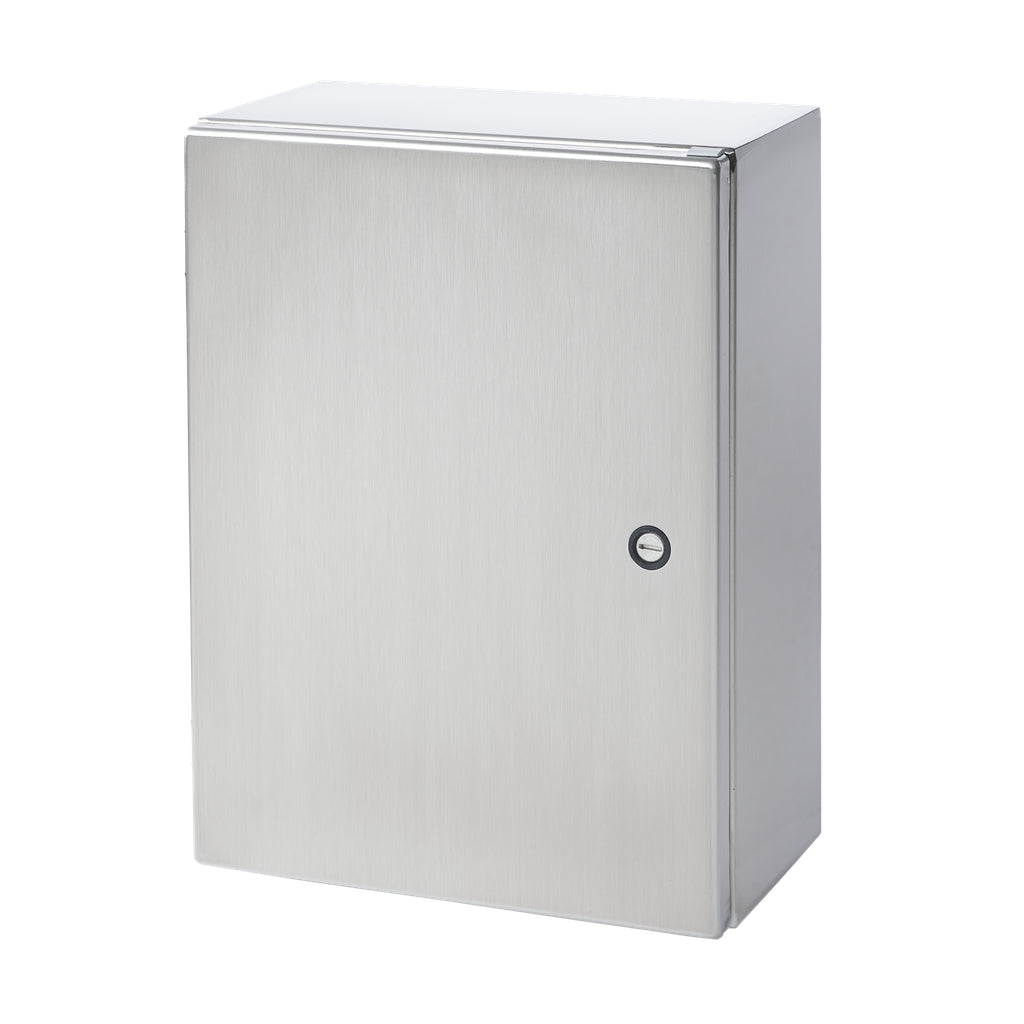

Concept Wallmount 1/4-Turn Latch Type 4X, 20x16x6, Brushed, Stainless 304 Enclosure

The Concept Wallmount enclosure by nVent Hoffman is designed for indoor and outdoor applications requiring corrosion resistance in harsh environments. This stainless steel Type 304 enclosure features a brushed finish and is suitable for industrial control and electrical distribution needs, offering protection for wire and cable installations and switchgear components. It meets NEMA Type 3R, 4, 4X, 12, and IP66 ingress protection standards, making it a reliable solution for lighting solutions and electrical distributors requiring durable enclosures.

Specifications

• Material: Stainless Steel Type 304
• Finish: Brushed (#4 smooth finish)
• Dimensions (L x W x H): 25.00 inch x 17.25 inch x 8.00 inch
• Depth: 152 millimeters
• Body Thickness: 1.59 millimeters
• Enclosure Type: 3R
• Weight: 23.0000 lbs
• Order Minimum: 1 unit
• Manufacturer: nVent Hoffman
• Manufacturer Part Number: CSD20166SS
• Country of Origin: United States
• Made in USA: Yes
• Ingress Protection: NEMA Type 4X, IP66
• Standards: UL 508A Listed, cUL Listed CSA C22.2 No 94, EN 60204-1, EN 60529

Features

• Quarter-turn latch with flush slotted insert for secure closure
• Seamless foam-in-place gasket for superior sealing
• Self-grounding latch system with double seal
• External formed 90-degree body flange for strength and mounting
• Mounting holes in back for direct or bracket mounting
• Panel mounting studs compatible with Concept panels and accessories
• Type 316 stainless steel hidden hinges for clean aesthetics
• Interchangeable corner-formed doors easily removed via clip-style hinge pins
• Provision for thermoplastic data pocket and optional doorstop kit on door
• Hardware kit includes panel mounting nuts, grounding hardware, and sealing washers
