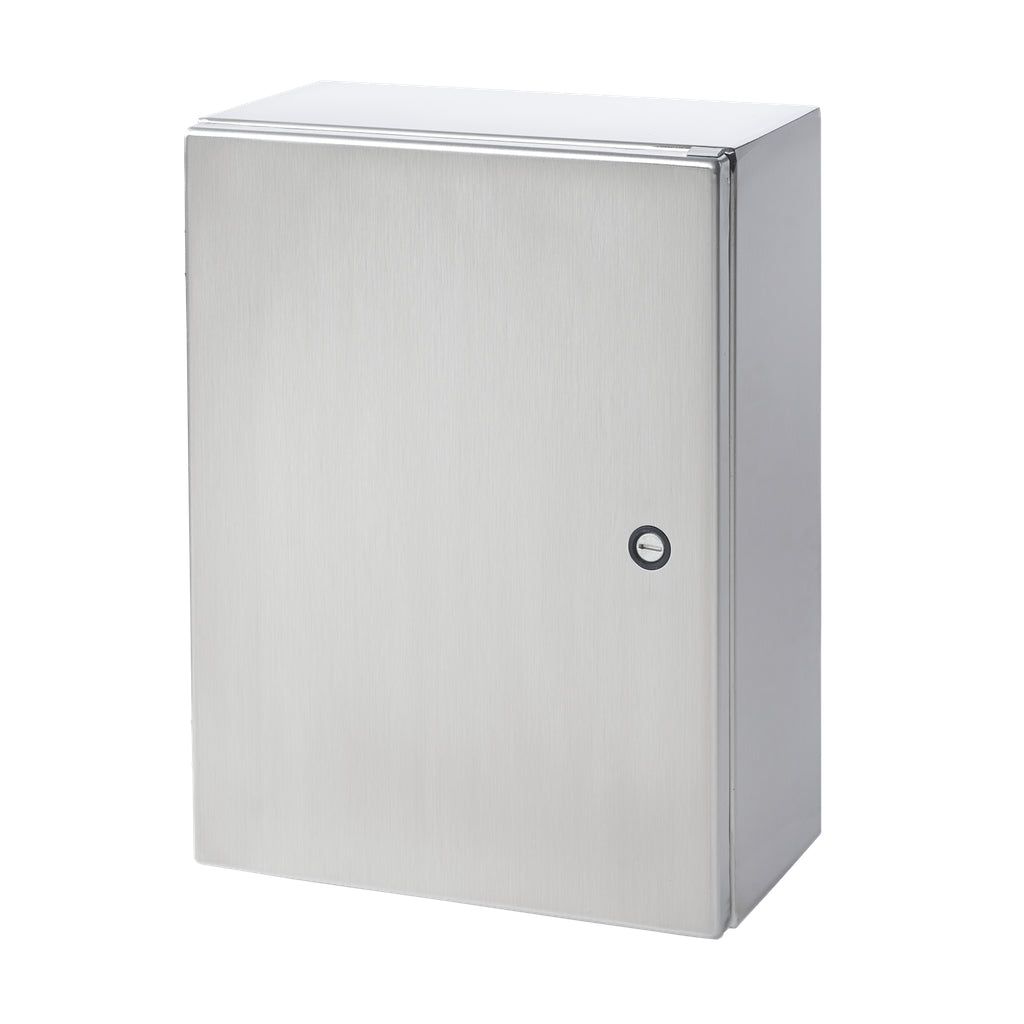

Concept Wallmount 1/4-Turn Latch Type 4X Stainless Steel Enclosure

The Concept Wallmount enclosure by nVent Hoffman is a stainless steel industrial control enclosure designed for indoor or outdoor use in corrosive environments. It provides robust protection for electrical and lighting solutions, suitable for electrical distributors and switchgear suppliers requiring durable wire and cable housing. This Type 4X enclosure features a brushed stainless steel 304 finish, ensuring corrosion resistance and compliance with NEMA Type 3R, 4, 4X, 12, and IP66 ingress protection standards.

Specifications

• Manufacturer: nVent Hoffman
• Material: Stainless Steel 304
• Finish: Brushed
• Dimensions (HxWxD): 12.25 inch x 17.00 inch x 10.00 inch
• Body Thickness: 1.59 millimeters
• Enclosure Type: Type 4X, NEMA 3R, 4, 12, IP66
• Weight: 24 lbs
• Mounting: Wall-mount with mounting holes in back
• Latch Type: Quarter-turn latch
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part Number: CSD161610SS

Features

• Designed for corrosion protection in harsh indoor and outdoor environments
• Streamlined styling with smooth #4 brushed finish
• Flush quarter-turn latch for secure closure
• External formed 90-degree body flange for maximum opening
• Panel mounting studs compatible with optional Concept panels and accessories
• Self-grounding latch system with double seal and seamless foam-in-place gasket
• Bonding provision on door and grounding stud on body
• Type 316 stainless steel hidden hinges for clean appearance
• Interchangeable corner-formed doors with clip-style hinge pins for easy removal
