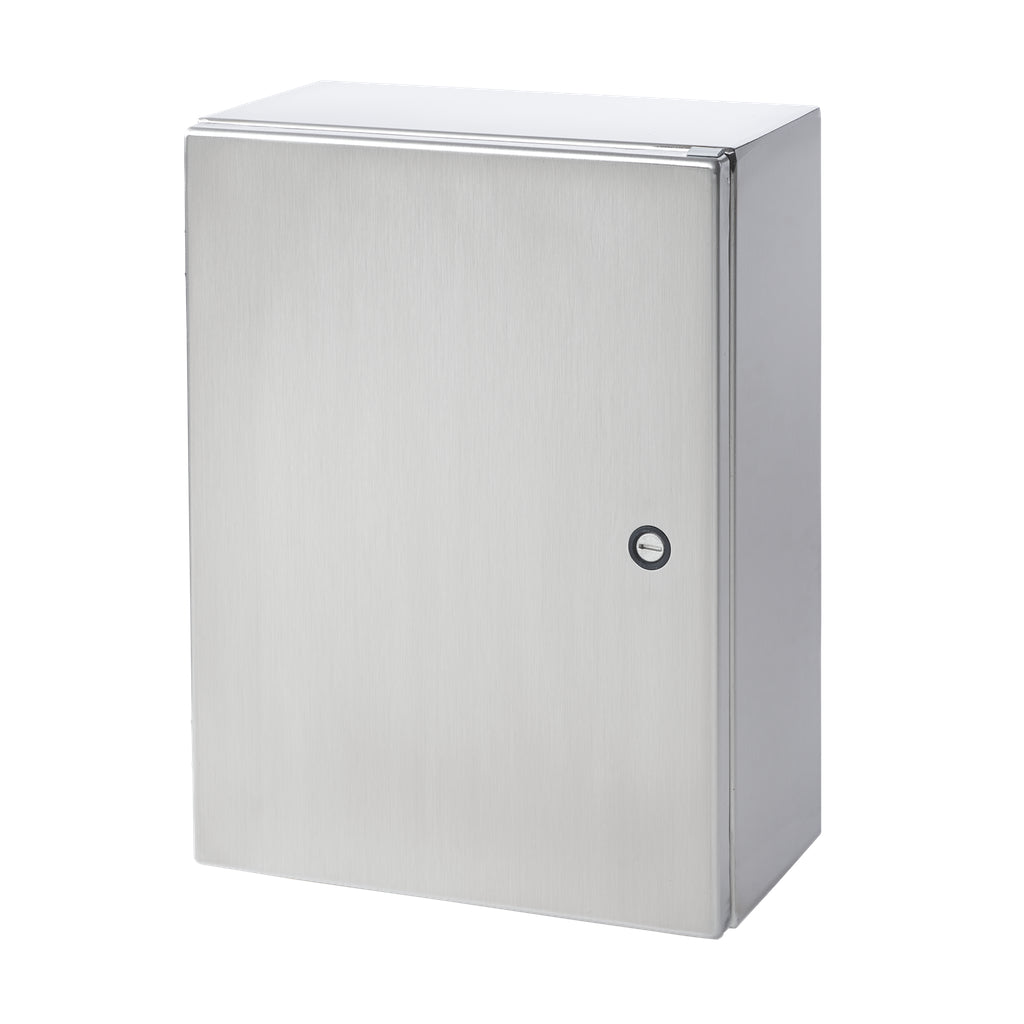

Concept Wallmount 1/4-Turn Latch Type 4X, 16x12x8, Brushed, Stainless 304 Enclosure

The Concept Wallmount enclosure is designed for indoor or outdoor use in corrosive environments, providing robust protection for electrical and lighting solutions. Manufactured by nVent Hoffman, this stainless steel enclosure is suitable for electrical distributors and switchgear suppliers requiring durable, Type 4X rated enclosures that withstand chemical and water exposure. Its brushed stainless steel finish and 1/4-turn latch ensure secure closure and corrosion resistance.

Specifications

• Manufacturer Part #: CSD16128SS
• Material: Stainless Steel 304
• Finish: Brushed
• Dimensions (L x W x H): 20.7 x 13.2 x 10.0 inches
• Depth: 203 millimeters
• Body Thickness: 1.59 millimeters
• Enclosure Type: 3R
• Weight: 18.0 lbs
• Made in USA: Yes
• Country of Origin: United States
• Order Minimum: 1 unit
• Ingress Protection: IP66 (per EU Declaration of Conformity)
• Standards Compliance: UL 508A, CSA C22.2 No. 94, NEMA Type 3R, 4, 4X, 12, IEC 60529

Features

• Type 4X rated for corrosion resistance in harsh environments
• 1/4-turn latch for secure and reliable door closure
• Brushed stainless steel finish for durability and aesthetic appeal
• Designed for wall mounting with mounting holes on the enclosure body
• Interchangeable door with 90-degree opening and removable hinge pins
• Foam gasket formed in place for a watertight seal
• Stainless steel concealed hinges for clean appearance
• Includes panel mounting hardware and grounding provisions

Downloads & Links

• Concept tipo 4X Hoja de especificaciones NAM-US Spanish Spec-00828
• Declaration of Conformity: Concept Type 4 And 4X Enclosures NAM-CA English CE-UKCA-00036_Concept
• Concept, Type 4X Spec Sheet EMEA-EUR English Spec-00002
• Concept Disconnect Enclosure, Type 4 Instruction Manual NAM-US English 64303001
• Declaration of Conformity NAM-US English CERT-00031
• Declaration of Conformity: Concept Type 4 And 4X Enclosures EMEA-EUR English CE-UKCA-00036_Concept
• Concept, Type 4X Spec Sheet NAM-CA English Spec-00002
• Concept, Type 4X Spec Sheet NAM-CA French Spec-01273
• Spec Sheet
• Declaration of Conformity NAM-CA English CERT-00031
• Declaration of Conformity EMEA-EUR English CERT-00031
• Concept Disconnect Enclosure, Type 4 Instruction Manual NAM-CA English 64303001
• Declaration of Conformity: Concept Type 4 And 4X Enclosures NAM-US English CE-UKCA-00036_Concept
