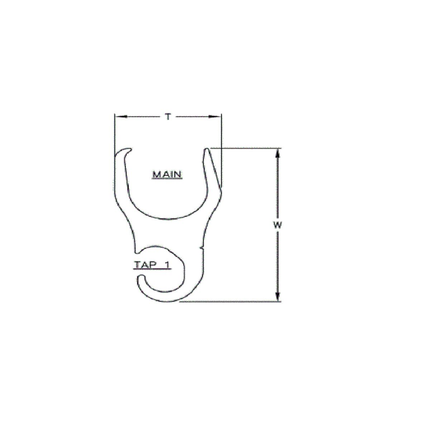

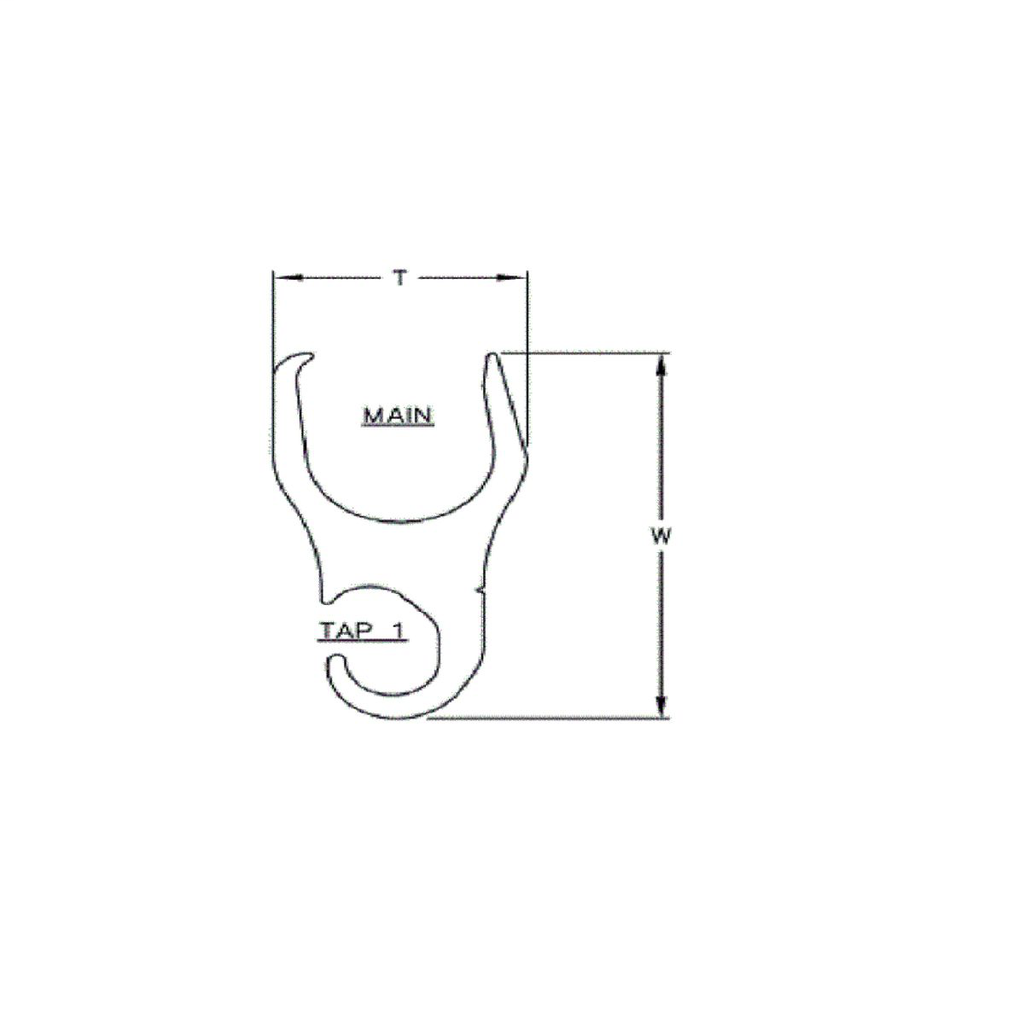

Compression YSHG4429 Copper Compression Double H-Tap Connector

The Compression YSHG4429 is a copper double H-Tap connector designed for direct burial in earth or concrete. It is suitable for electrical distributors and lighting solutions requiring reliable grounding and bonding connections. This connector supports wire and cable sizes ranging from 2 AWG to 250 kcmil for tap conductors, and accommodates #8 and #9 rebar as well as 1" ground rods, making it appropriate for use in switchgear and grounding applications.

Specifications

• Material: Copper
• Connector Type: H-Tap
• Application: For Direct Burial In Earth Or Concrete
• Length Overall: 2.44 in
• Width: 3.22 in (82 mm)
• Conductor Tap Range: 2 AWG - 250 kcmil
• Rebar Size Range: #8 - #9
• Ground Rod Size: 1 in
• UL Listed: Yes (UL 467, Direct Burial)
• Plating Type: Unplated
• Die Index: KR
• Item Type: 3B
• Product Weight: 1.41 lbs

Features

• High conductivity copper extrusion minimizes resistance and eliminates corrosion due to dissimilar metals
• Grooves prefilled with PENETROX E2 oxide inhibitor and individually sealed to inhibit moisture and contaminants, ensuring electrical integrity
• Suitable for direct burial applications in earth or concrete environments
• Double wire entry design for versatile conductor connections
• Compatible with Y46 tool and PYFR die set for reliable crimps

Downloads & Links

• Prop 65 Notice
• Spec Sheet
• SD210382-01_A
