Specifications

General

• Application: For Direct Burial In Earth And Concrete
• Connector Type: Tap
• Die Index: 998
• Material: Copper
• Oxide Inhibitor Type: Penetrox E
• Physical Attribute - Number of Crimps Required: 1
• Plated: N
• Plating Type: Unplated
• Prefilled Oxide Inhibitor: Y
• Sub Brand: HYTAP
• Trade Name: HYTAP™
• Type: Taps
• UPC: 781810220979
• UPC 12 Digit: 7818102209799

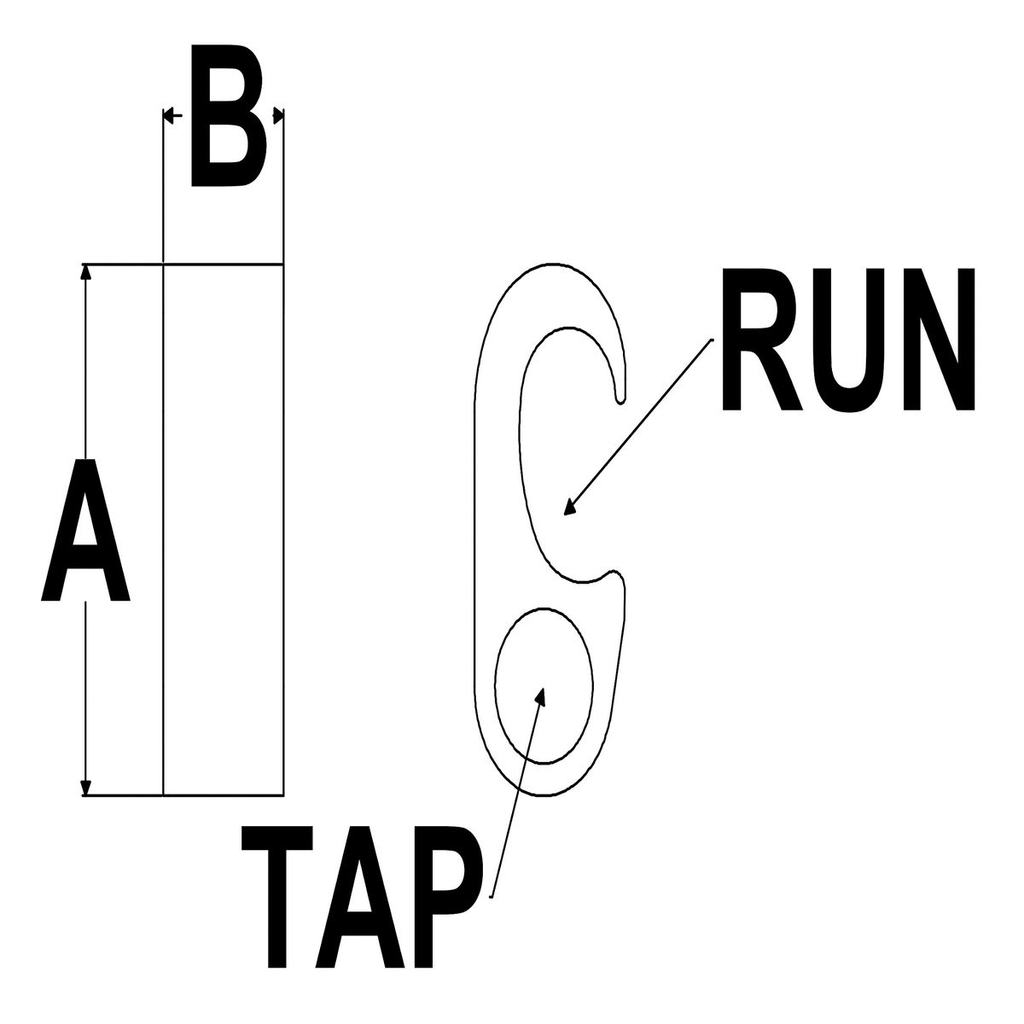

Dimensions

• Dimension - B Length fraction: 3/4 in
• Dimension - B Length inch: 0.75 in

Conductor Related

• Conductor - Copper Str Run: 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Run Range: 250 kcmil-500 kcmil
• Conductor - Copper Str Tap: 3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Tap Range: 3/0 AWG-250 kcmil
• Conductor - Rebar Run: 5 ;6
• Conductor - Rebar Run Range: 5 -6
• Conductor - Rod Run: 5/8 in;3/4 in
• Conductor - Rod Run Range: 5/8 in-3/4 in

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Listed Direct Burial: Yes
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): Direct Burial
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Standards - Industry Standards Met

• UL467
• IEEE 837
