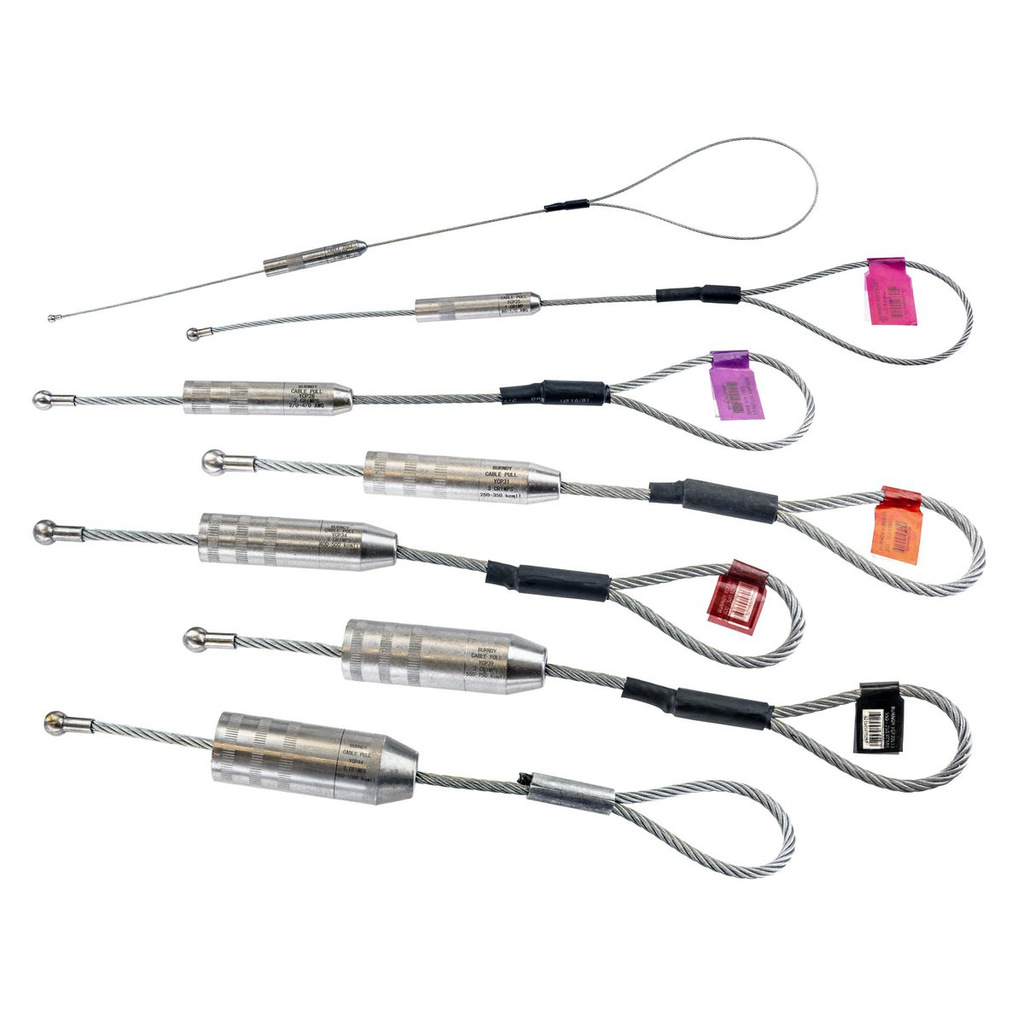

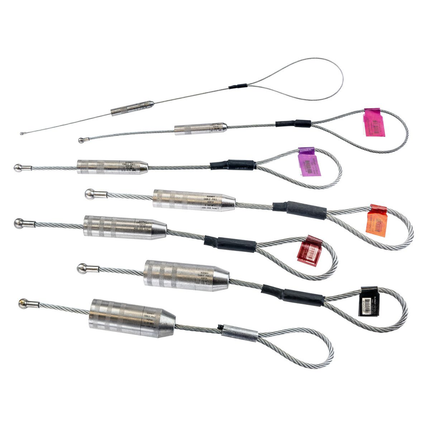

Compression Pulling Grip, 550-750 kcmil Cu/Al – Wire and Cable Pulling Solutions

This compression pulling grip is designed for use with 550-750 kcmil copper and aluminum conductors, facilitating efficient and safe cable pulling operations. Manufactured by Burndy, it features a 41-inch lanyard length optimized for wire staggering to prevent bunching during pulls. The grip is suitable for electrical distributors and wire and cable suppliers requiring reliable pulling hardware for medium to large conductor sizes.

Specifications

• Product Name: Compression Pulling Grip, 550-750 kcmil Cu/Al, 41" Lanyard Length
• Conductor Material: Aluminum / Copper
• Conductor Size Range: 550-750 kcmil
• Material: Steel
• Connection Type: Pulling Head
• Product Weight: 1.27 lbs
• Country of Origin: China
• Manufacturer: Burndy
• Manufacturer Part Number: YCP39L41CTN
• UPC: 621945647312

Features

• Range-taking design accommodates copper code, copper flex, and aluminum code wire sizes.
• Unique lanyard length for wire staggering to prevent bunching during cable pulls.
• Knurl crimp bands on barrels clearly indicate proper crimp locations for installation accuracy.
• Compatible with 444S or 644 series dieless installation tools for ease of use.
• Protective sleeve on lanyard enhances user comfort and safety during handling.
• UPC tag affixed for easy identification and ordering.
• Single-use design optimized for pulling electrical cables through ducts and conduits.

Downloads & Links

• Installation Manuals Asset Reference
• Spec Sheet
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
