Compression Pulling Grip, 550-750 kcmil Cu/Al – Wire and Cable Pulling Solutions

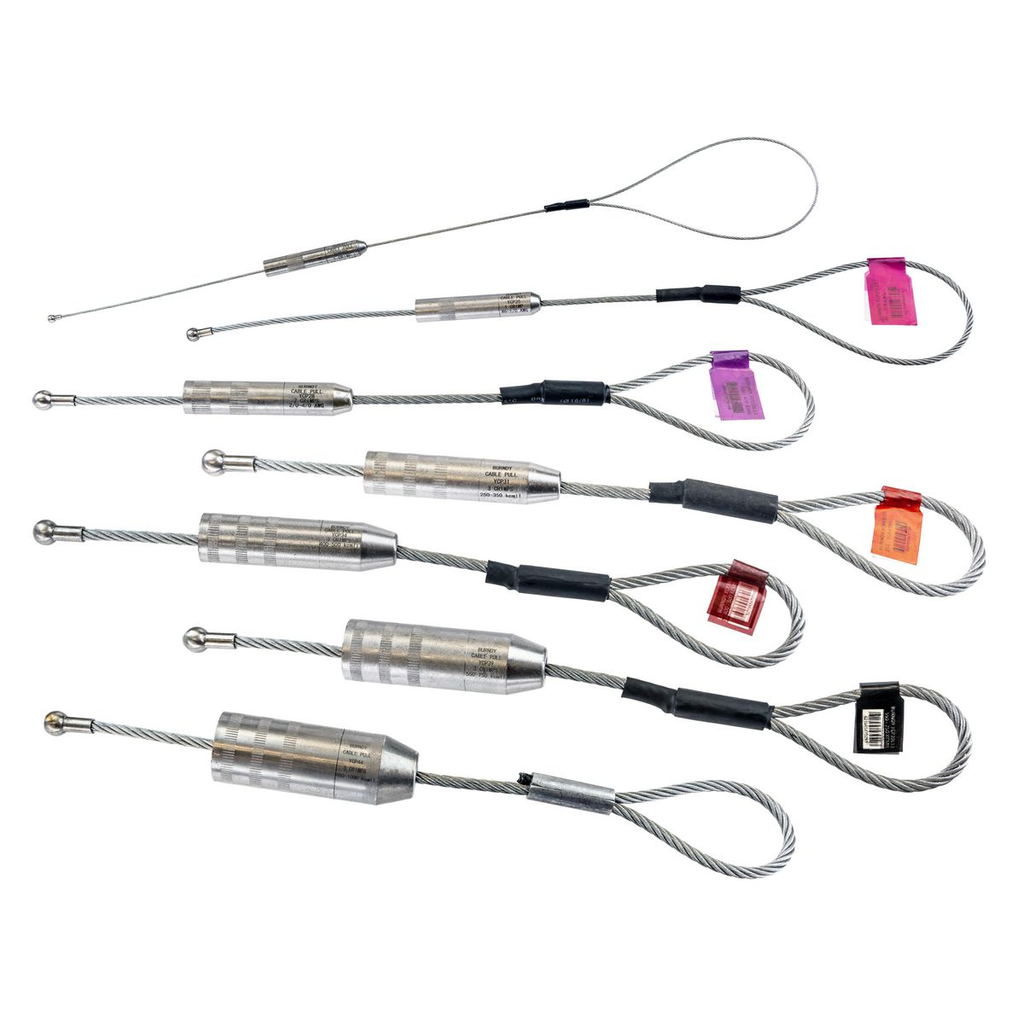

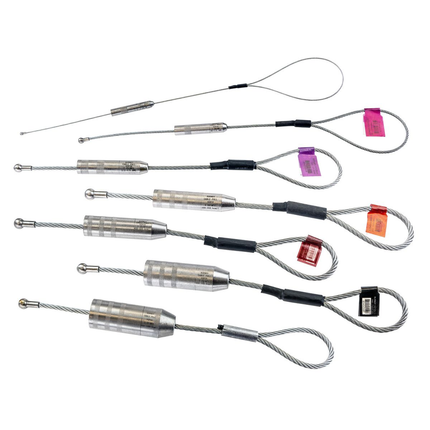

This Burndy compression pulling grip is designed for pulling electrical cable, accommodating copper and aluminum conductors ranging from 550 to 750 kcmil. The product features a 20" lanyard length for efficient wire staggering to prevent bunching during pulls. It is constructed from steel with a pulling head connection type, suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable pulling solutions.

Specifications

• Manufacturer Part #: YCP39L20CTN
• Conductor Material: Aluminum / Copper
• Material: Steel
• Connection Type: Pulling Head
• Lanyard Length: 20 inches
• Product Weight: 1.18 lbs
• Country of Origin: China
• UPC: 621945647282

Features

• Range taking design accommodating copper code, copper flex, and aluminum code wire
• Unique lanyard length to prevent wire bunching during pulling operations
• Single-use compression grip engineered for easy and fast installation
• Slim profile allows easy passage through ducts and conduit
• Crimp bands provide clear crimp locations for proper installation
• Compatible with dieless installation tools for efficient crimping
• Designed to be installed by qualified personnel following safety and rigging codes

Downloads & Links

• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
