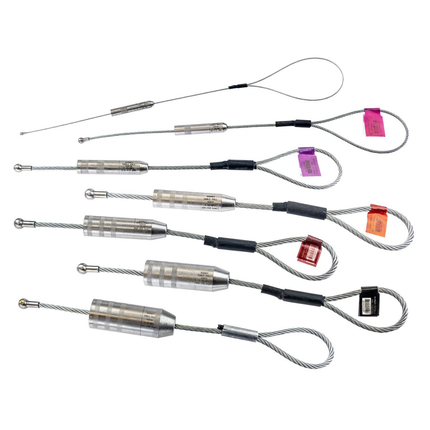

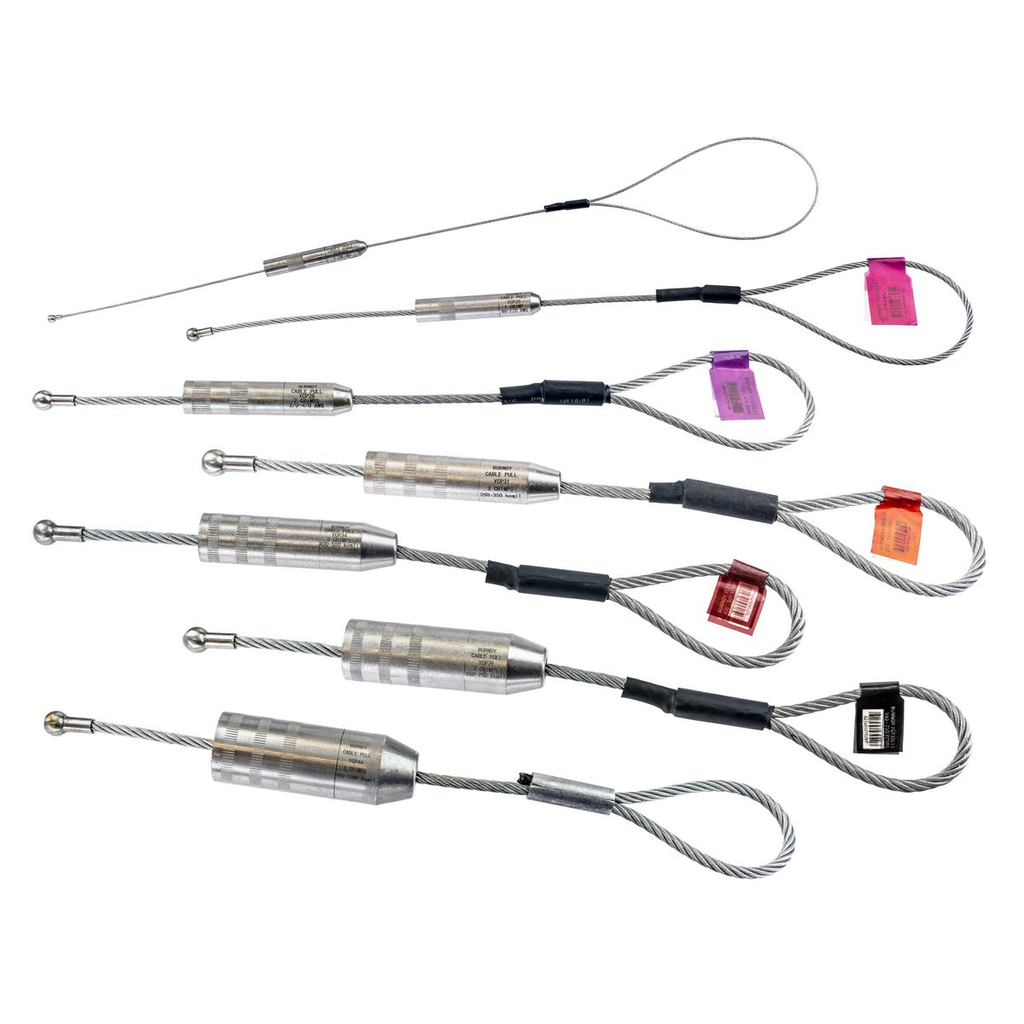

Compression Pulling Grip, 400-500 kcmil Cu/Al – Wire and Cable Pulling Solutions

This Compression Pulling Grip is designed for single-use pulling of electrical cables, accommodating copper and aluminum conductors in the 400-500 kcmil range. It features a 41-inch lanyard length, allowing wire staggering to prevent bunching during pulls, making it suitable for use by electrical distributors and switchgear suppliers managing wire and cable installations. The steel construction provides durability while maintaining a slim profile for easy passage through ducts and conduit.

Specifications

• Material: Steel
• Conductor Material: Aluminum / Copper
• Connection Type: Pulling Head
• Lanyard Length: 41 inches
• Manufacturer: Burndy
• Manufacturer Part #: YCP34L41CTN
• Country of Origin: China
• Product Weight: 0.0030 lbs

Features

• Range taking design accommodates copper code, copper flex, and aluminum code wire
• Unique lanyard length for wire staggering to prevent bunching during pulls
• Easy and fast installation with a slim profile for duct and conduit passage
• Crimp bands for precise crimp locations
• Designed for use with dieless crimping tools
• Single-use compression grip for cable pulling applications only

Downloads & Links

• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
