Compression Pulling Grip, 400-500 kcmil Cu/Al – Wire and Cable Pulling Solutions

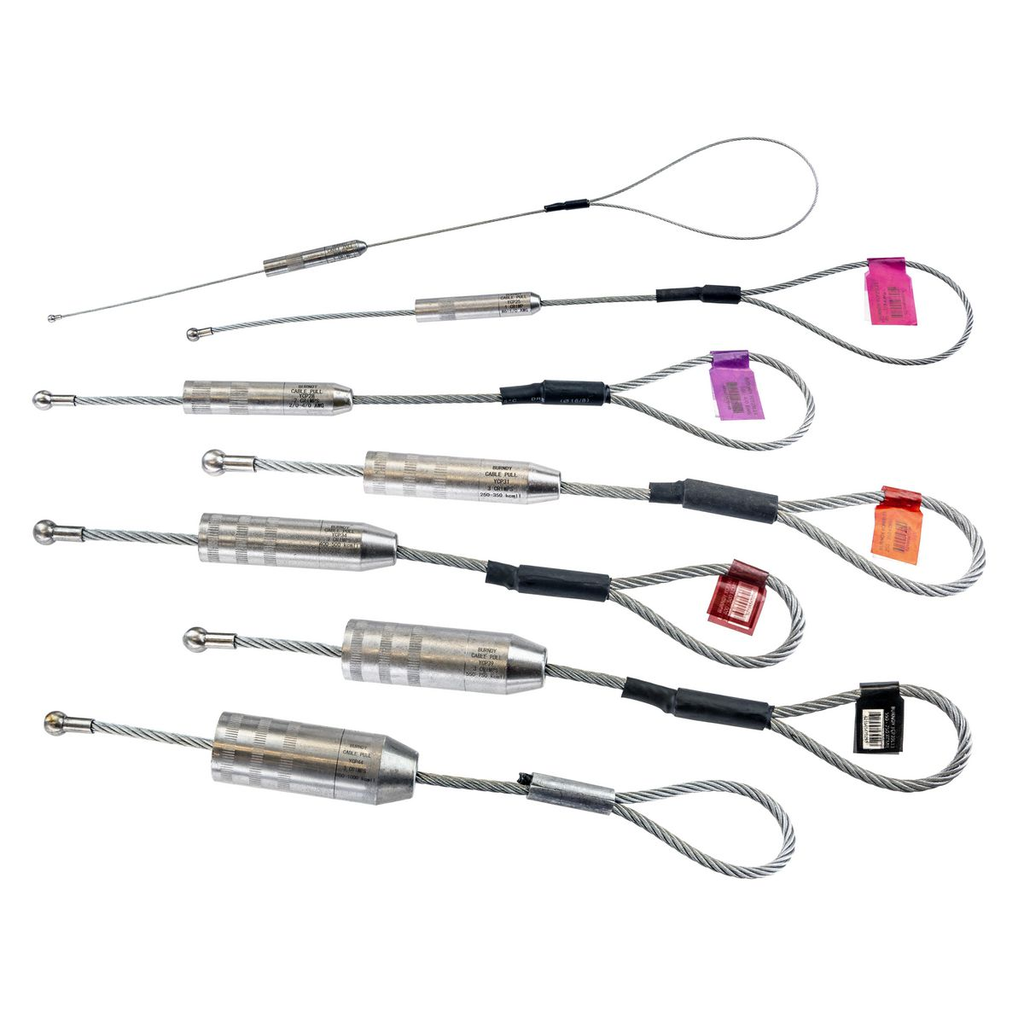

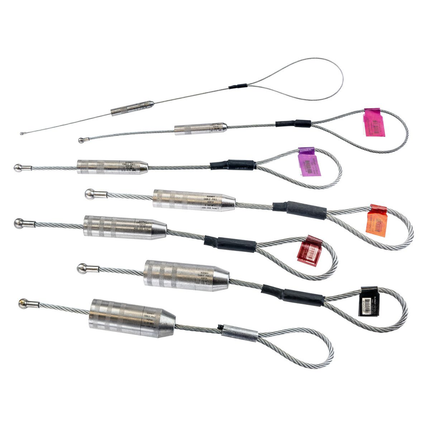

The Burndy Compression Pulling Grip, designed for 400-500 kcmil copper and aluminum conductors, is engineered for safe and efficient pulling of electrical cables. This product is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable pulling solutions. The grip features a 20-inch lanyard length to accommodate wire staggering, preventing bunching during cable pulls. It is constructed from steel and includes a pulling head connection for secure attachment.

Specifications

• Material: Steel
• Conductor Material: Aluminum / Copper
• Connection Type: Pulling Head
• Lanyard Length: 20 inches
• Manufacturer Part #: YCP34L20CTN
• Product Weight: 0.0030 lbs
• Country of Origin: China
• UPC: 621945647183

Features

• Range-taking design accommodates copper code, copper flex, and aluminum code wire
• Unique lanyard length to prevent wire bunching during pulls
• Crimp marks on barrel for precise crimping locations
• Slim profile allows easy passage through ducts and conduit
• Single-use, designed for pulling electrical cable only
• Installation requires qualified personnel following Burndy safety and installation guidelines

Downloads & Links

• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
